3. Hardware Installation
Follow the steps below to set up your camera hardware. Make sure to follow each step carefully to
ensure that the camera operates properly.
1. Install the Wi-Fi antenna by twisting the antenna connector clockwise to the camera’s antenna port (for
wireless models).
2. Plug the power adapter port into camera ’s power supply port. This may be external (outdoor models) or
internal (indoor models) depending on which camera you purchased.
3. Plug the network cable into the RJ-45 connecter which is found either on the external wiring (for
outdoor cameras) or on the back of the camera (for indoor cameras), and plug in the other side of the RJ-
45 cable to a port on your router/switch.
4. It takes approximately 30 seconds to boot up the camera, you will see the camera swivel automatically
a few seconds after it is plugged in, this indicates the camera has successfully powered on.
5. When the camera is correctly powered on and the network cable is connected properly, the green LED
on either the RJ-45 connector of the camera (for outdoor models) or the connector on the back of the
camera (indoor models) will remain solid. The yellow LED should continue to flash.

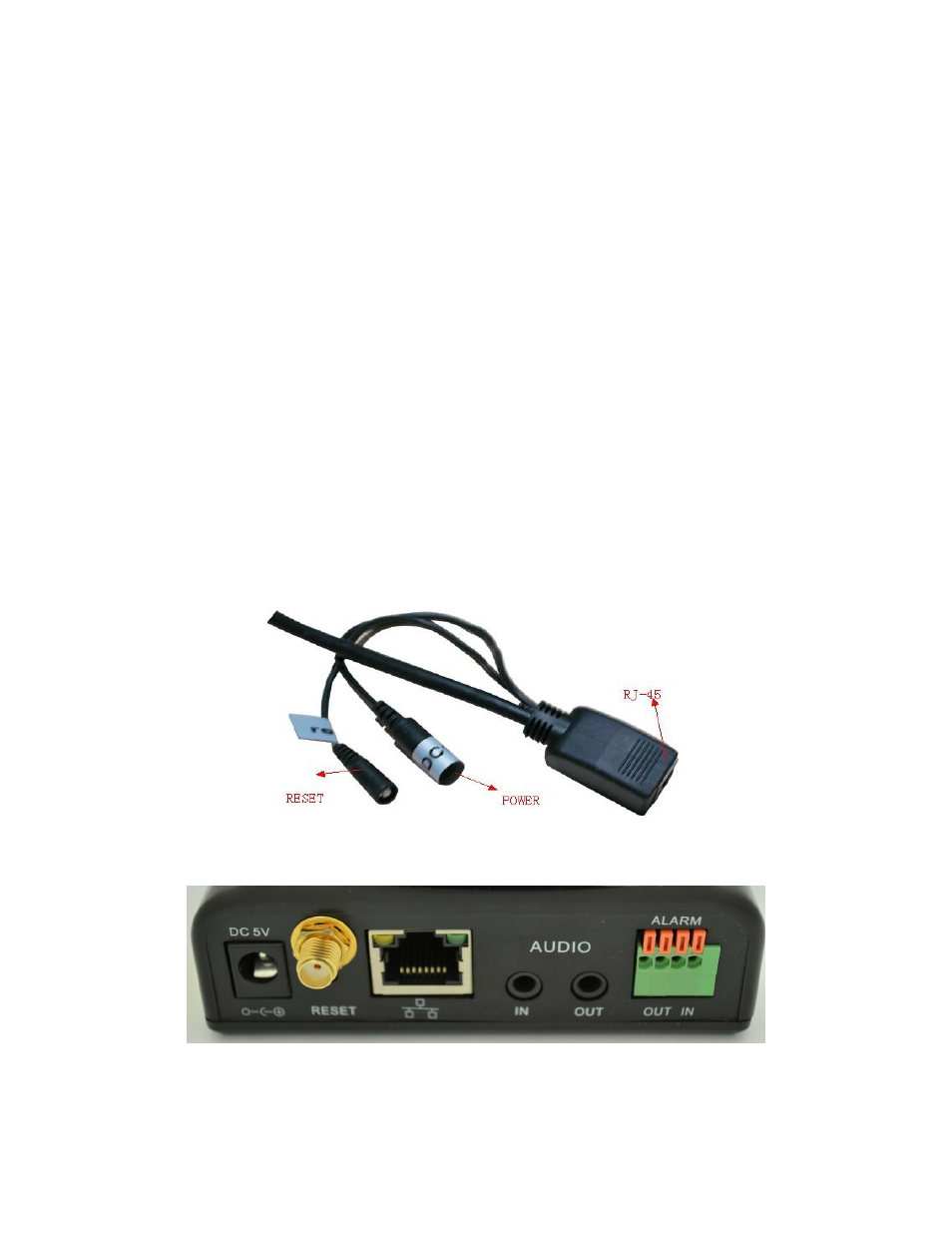

Figure 3.1 – Outdoor Camera Wiring (your camera may be slightly different)
Figure 3.2 – Indoor Camera Rear Ports (your camera may be slightly different)
