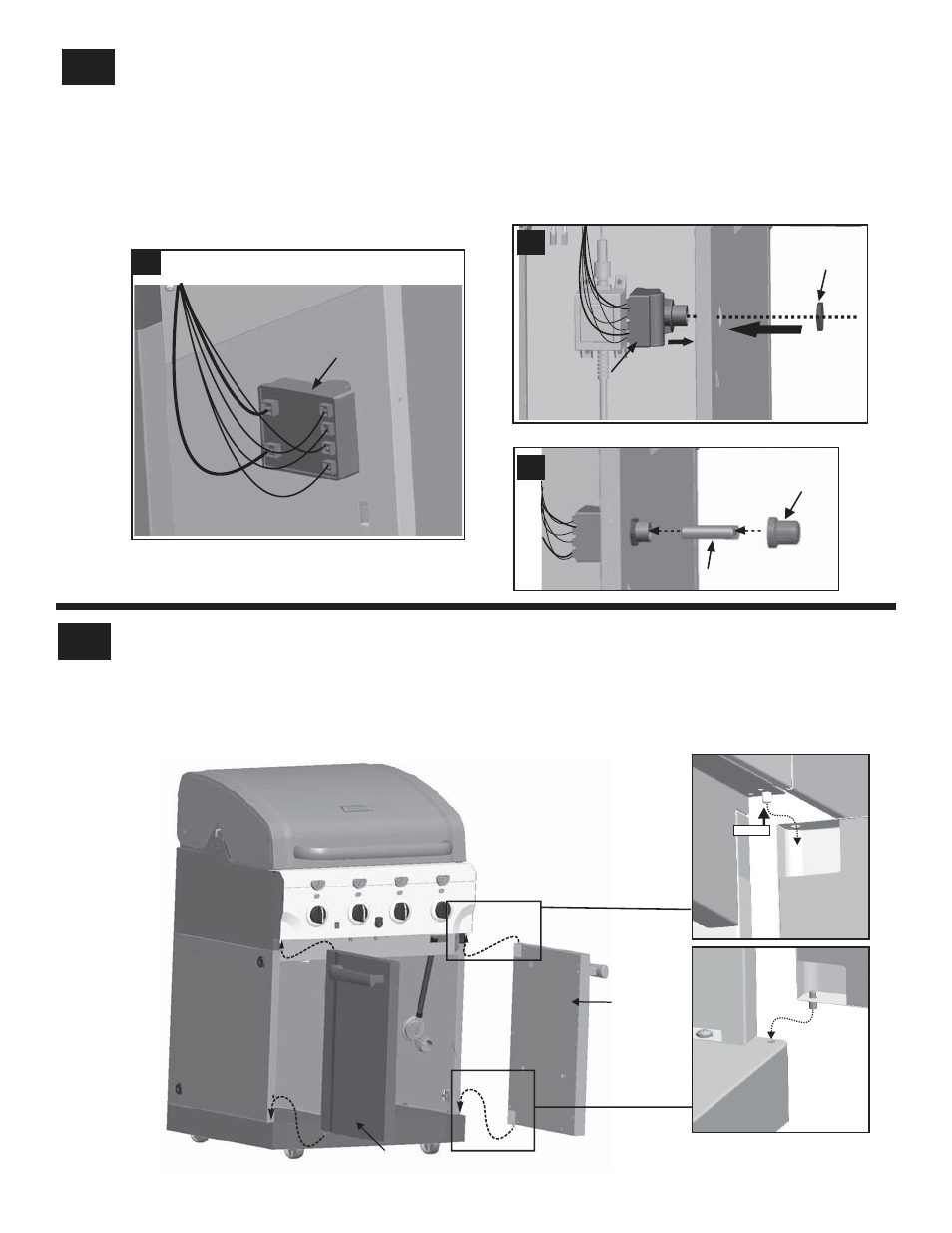

Connect each of the wires from the main burner electrodes into the back of the Electronic Ignition Module.

Total (4) connections, shown A.

Connect the two wires [(a) and (b)] from the switch wiring harness into the back of the Electronic Ignition Module.

NOTE: Switch terminals are larger than electrode terminals and should only be installed in location shown as (a),(b).

Total (2) connections, shown A.

ignition module

Electronic

Cart partition

panel

B

C

Release the cap and nut from electronic ignition module. Attach electronic ignition module to the cart partition panel with

the nut, shown B

Insert AA battery into ignition module, negative (

-

) end first. Then put on the cap, shown C.

Nut

-

+

AA battery

Cap

3

1

2

4

(a)

(b)

ignition module

Electronic

A

11

Insert hinge pin on bottom of doors into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of

door, and release hinge pin into door.

Left door

Hinge pin

on bottom

of door

Top of

door

PRESS

Right door

29
