3

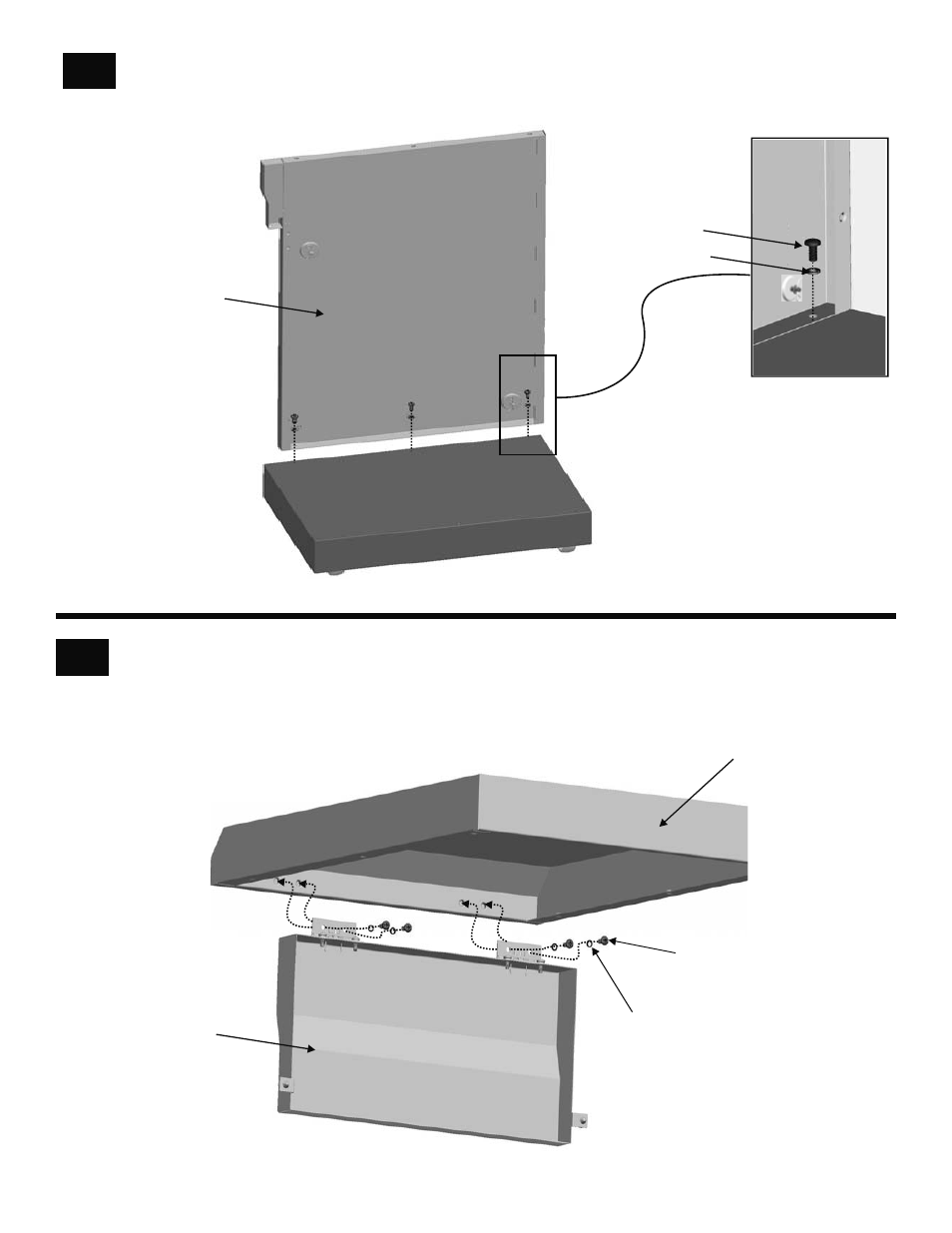

Attach left side panels to bottom shelf using three 1/4-20x1/2” screws, 7mm lock washers.

Left side panel

Make sure side panels

are pushed as far to the

rear of bottom shelf as

possible before fully

tightening screws.

1/4-20x1/2” screw

7mm lock washer

Only left side panel shown for assmebly, install right side panel in the same way.

4

Attach swing panel to top shelf using four #8-32x3/8” screws, 4mm lock washers.

Swing panel

Top shelf

#8-32x3/8” screw

4mm lock washer

21
