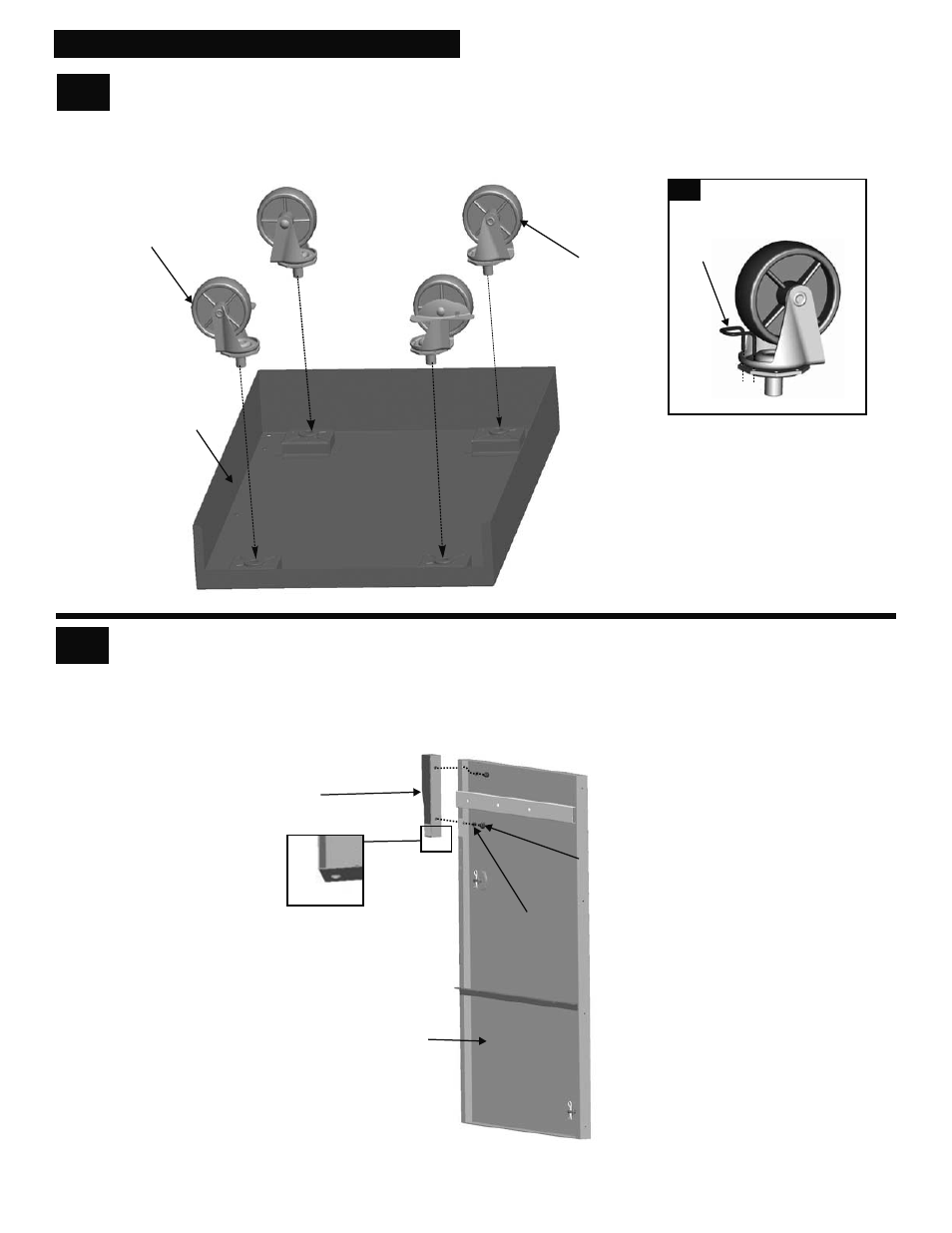

Attach drawer front bracket-L to left side panel using two
Only drawer front bracket-L shown for assmebly, install drawer front bracket-R in the same way.
#10-24x3/8” screws, 5mm lock washers per panel.
Locking caster
Bottom shelf
Fixed caster
Rear
Front
Drawer front bracket-L
Left side panel
ASSEMBLY OF LEFT CART
#10-24x3/8” screw
5mm lock washer
Bent U pin
A
Place bottom shelf upside down. Insert Bent U Pin into the caster mounting plate to lock it in place, shown A.
Spin the caster clockwise into the threads on the bottom shelf until secure. Remove the Bent U Pin and repeat for remaining
casters. Make sure the two locking casters are secured at the rear and the non-locking casters are secured at the front.
After all 4 casters are secure remove the Bent U Pin and save for future maintenance.
IMPORTANT: Drawer front bracket-L with hole
underneath must be on left side panel.
