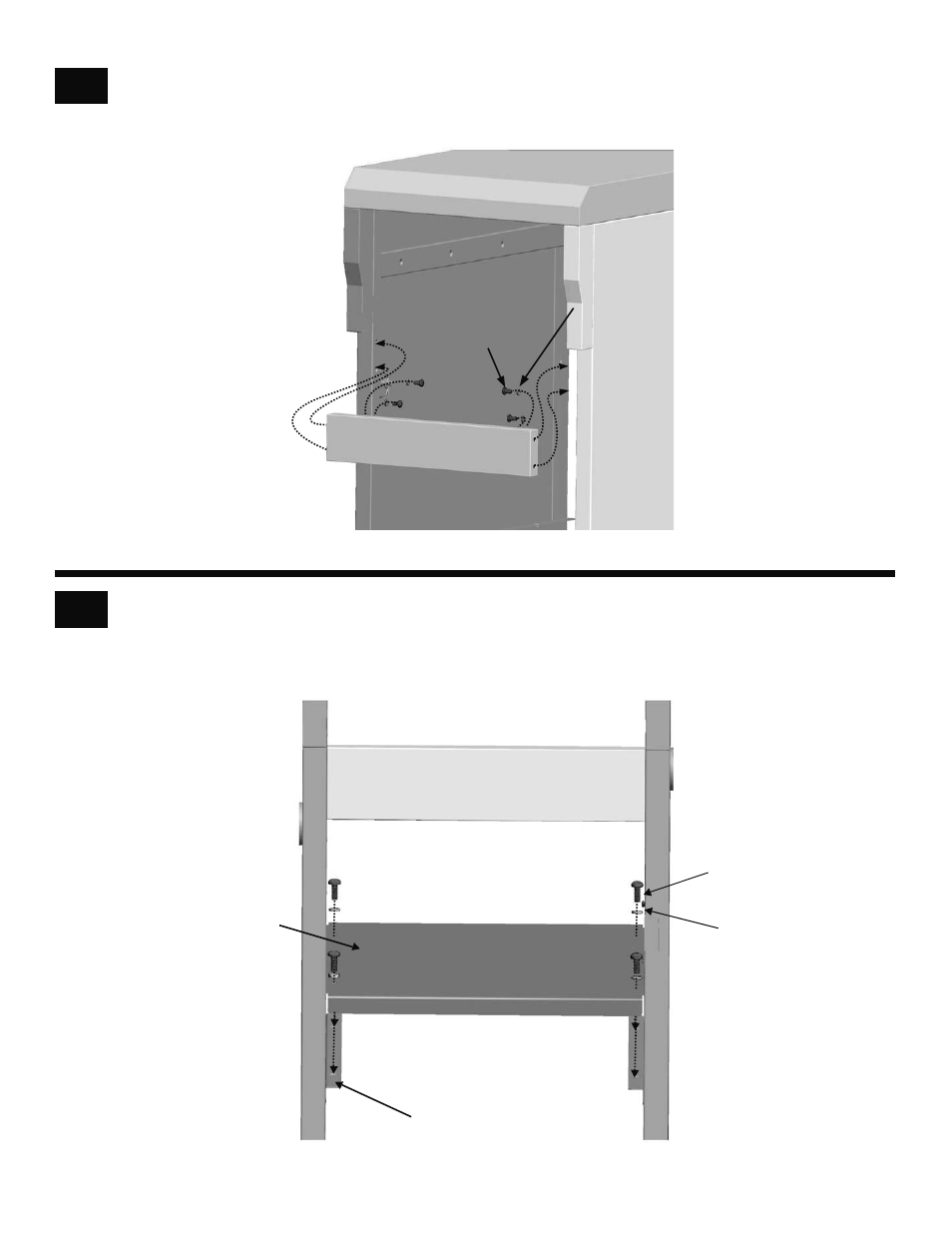

Insert front brace between cart side panels. Secure using two #10-24x3/8”
#10-24x3/8”
5mm Lock
Front Brace
Washer
Screw
screws, 5mm lock washers on each side.
NOTE: MAKE SURE THAT THE FRONT BRACE IS MOUNTED AS ILLUSTRATED BELOW.
6
Attach inside shelf to shelf bracket using two #10-24x3/8” screws, 5mm lock washers on each side.
Inside shelf
Shelf bracket
#10-24x3/8” screw
5mm lock washer
