7

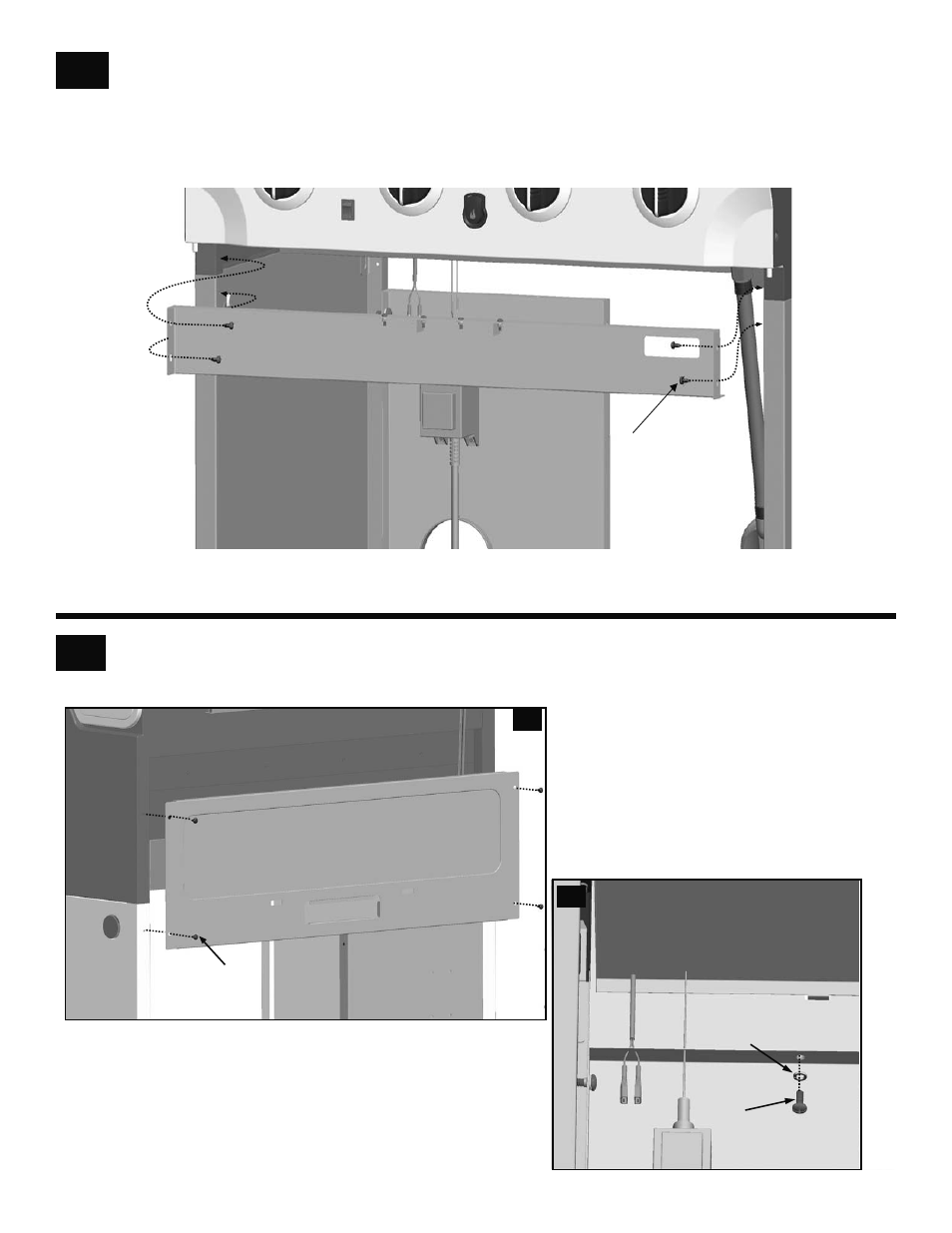

On back of grill, place upper back panel between side panels and lower back panel. Secure upper back panel using
two #8x3/8” self-tapping screws on each side.
#8x3/8”
Lower back panel
Upper back panel
self-tapping screw
Secure upper back panel to lower back panel using one 1/4-20x1/2” screw and 7mm lock washer, shown B.
B
A
Upper back panel
Lower back panel
1/4-20x1/2”
screw
7mm lock washer
6
Insert front brace under control panel and between cart side panels.
Secure using two #8x3/8” self-tapping screws each side.
Front Brace
Control Panel
NOTE: MAKE SURE THAT THE FRONT BRACE IS MOUNTED AS ILLUSTRATED BELOW.
#8x3/8” self tapping
screw
27
