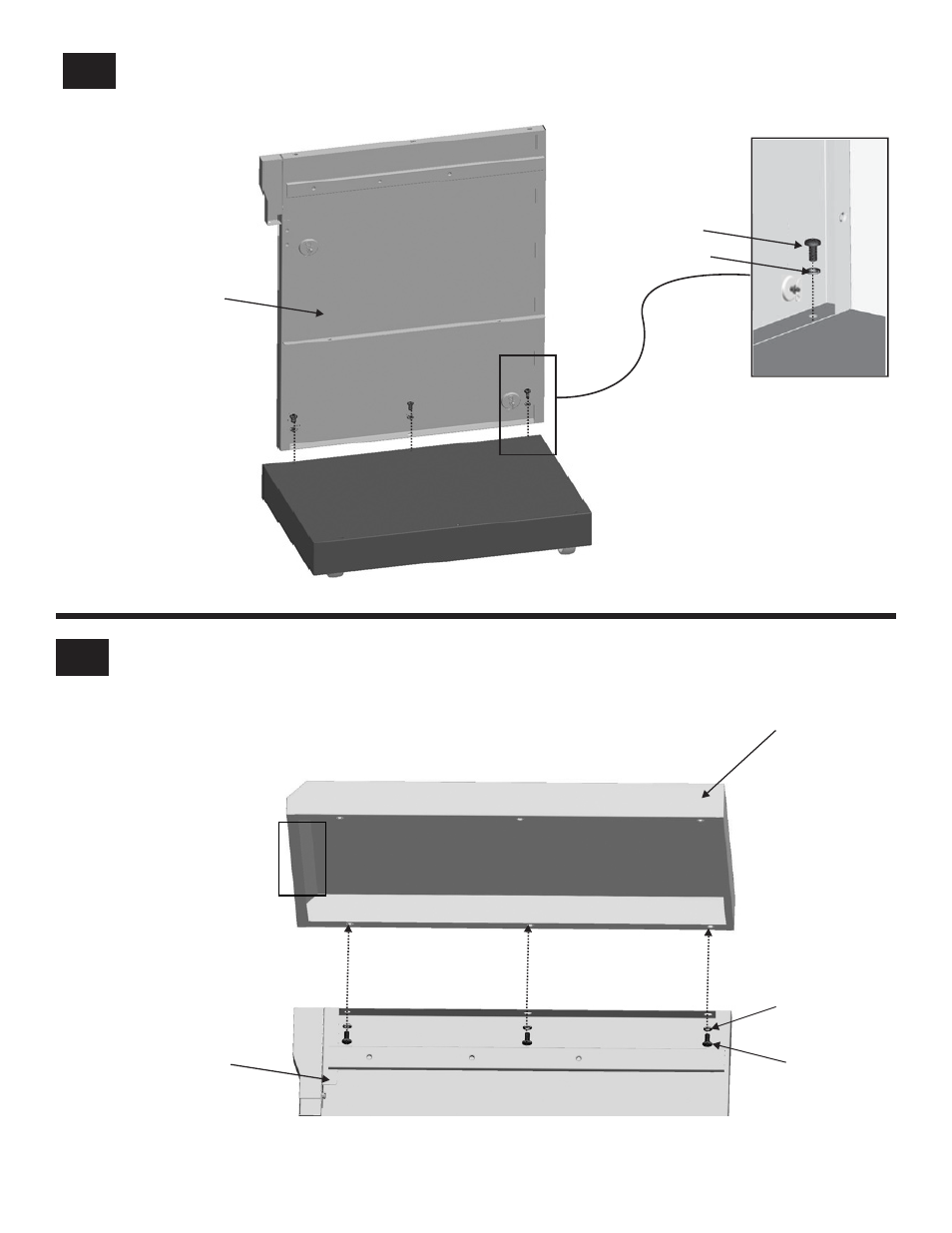

Attach left side panels to bottom shelf using three 1/4-20x1/2” screws, 7mm lock washers.
Left side panel
Make sure side panels
are pushed as far to the
rear of bottom shelf as
possible before fully
tightening screws.
1/4-20x1/2” screw
7mm lock washer
Only left side panel shown for assmebly, install right side panel in the same way.
4
Attach top shelf to left side panel using three 1/4-20x1/2” screws, 7mm lock washers.
Only left side shown for assmebly, attach top shelf to right side panel in the same way.
Left side panel
Top shelf
1/4-20x1/2” screw
7mm lock washer
16
IMPORTANT: Top shelf front
without holes must be installed
to the left cart.
