33



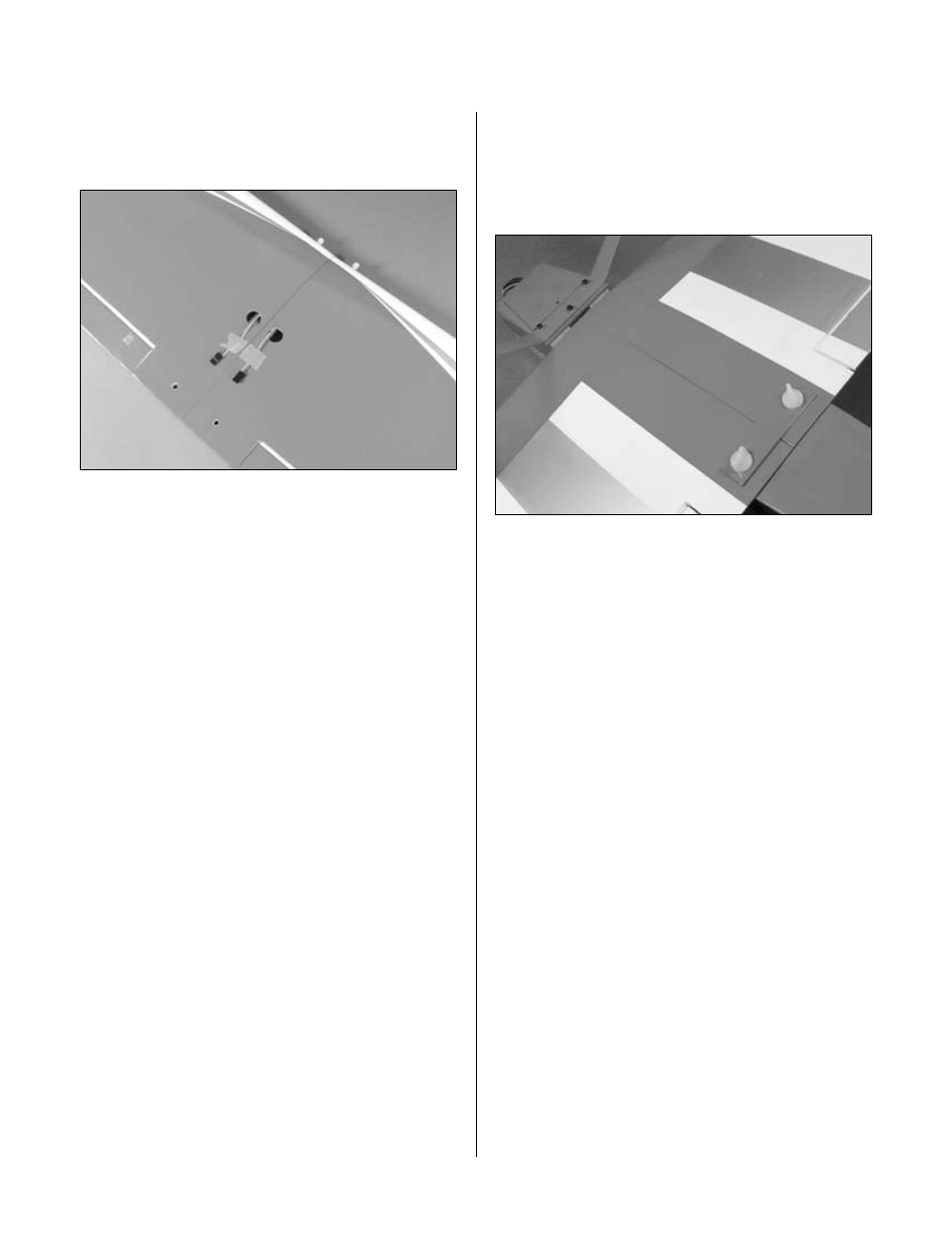

.Step 6

Slide.the.remaining.wing.panel.onto.the.wing.tube.

aligning.the.dowel.into.the.panel.



.Step 7

Slide.the.1/4-20.x.1

.

1

/

2

".wing.bolts.through.the.wing.

bolt.plate..Position.the.wing.dowels.into.the.holes.in.the.

fuselage..Slide.the.bolts.through.the.wing.and.tighten.

them.to.secure.the.wing.to.the.fuselage.

Section 8: Final Assembly
