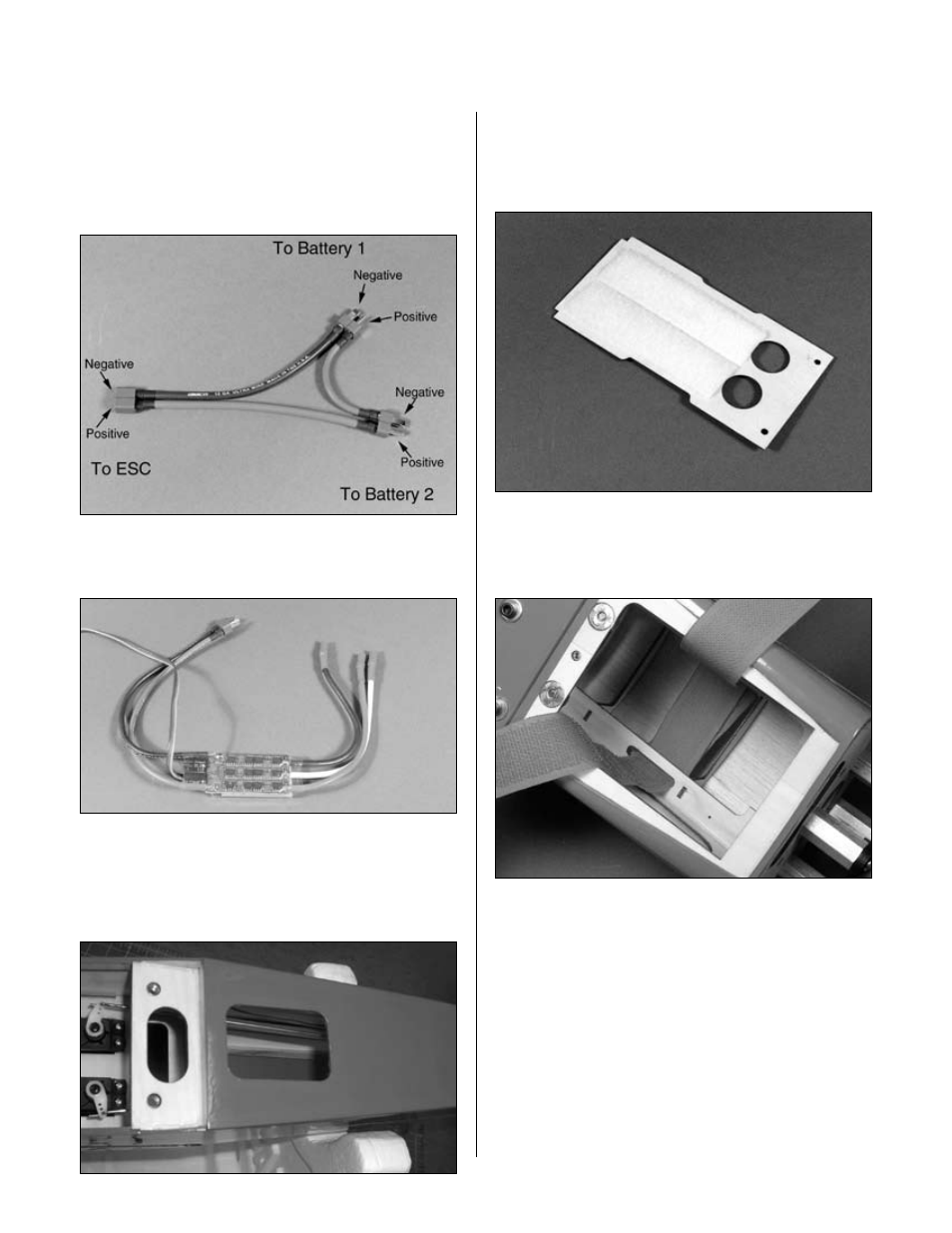

 .Step 4
Build.a.wiring.harness.for.the.batteries.using.a.female.
connector.and.two.male.connectors..Follow.the.wiring.in.
the.photo.so.the.motor.sees.the.voltage.increase.of.the.
two.batteries.
 .Step 5
Solder.the.appropriate.connectors.onto.the.speed.control.
 .Step 6
Remove.the.covering.from.the.bottom.of.the.fuselage..
as.shown.to.allow.for.cooling.air.across.the.motor..
and.batteries.
 .Step 7
Prepare.the.battery.tray.by.applying.two.pieces.of.self.
adhesive.hook.and.loop.to.the.battery.tray..Start.the.hook.
and.loop.directly.behind.the.holes.in.the.tray.
 .Step 8
Position.the.hook.and.loop.strap.into.the.fuselage..Route.
the.strap.through.the.fuselage.bracing.as.shown.
