Required Parts
•.Fuselage
•.23
.
3 /
8
".(594mm).rudder.pushrod
•.22
.
1 /
2
".(572mm).elevator.pushrod.wire
•.Clevis.w/retainer
Required Tools and Adhesives
•.Drill. •.Felt-tipped.pen
•.Switch.harness. •.Standard.servo.(3)
•.Phillips.screwdriver
•.Drill.bit:.1/16".(1.5mm),.5/64".(2mm)
Note:.The.throttle.servo.is.not.required.when.
building.the.electric.version.of.your.Pulse.XT.

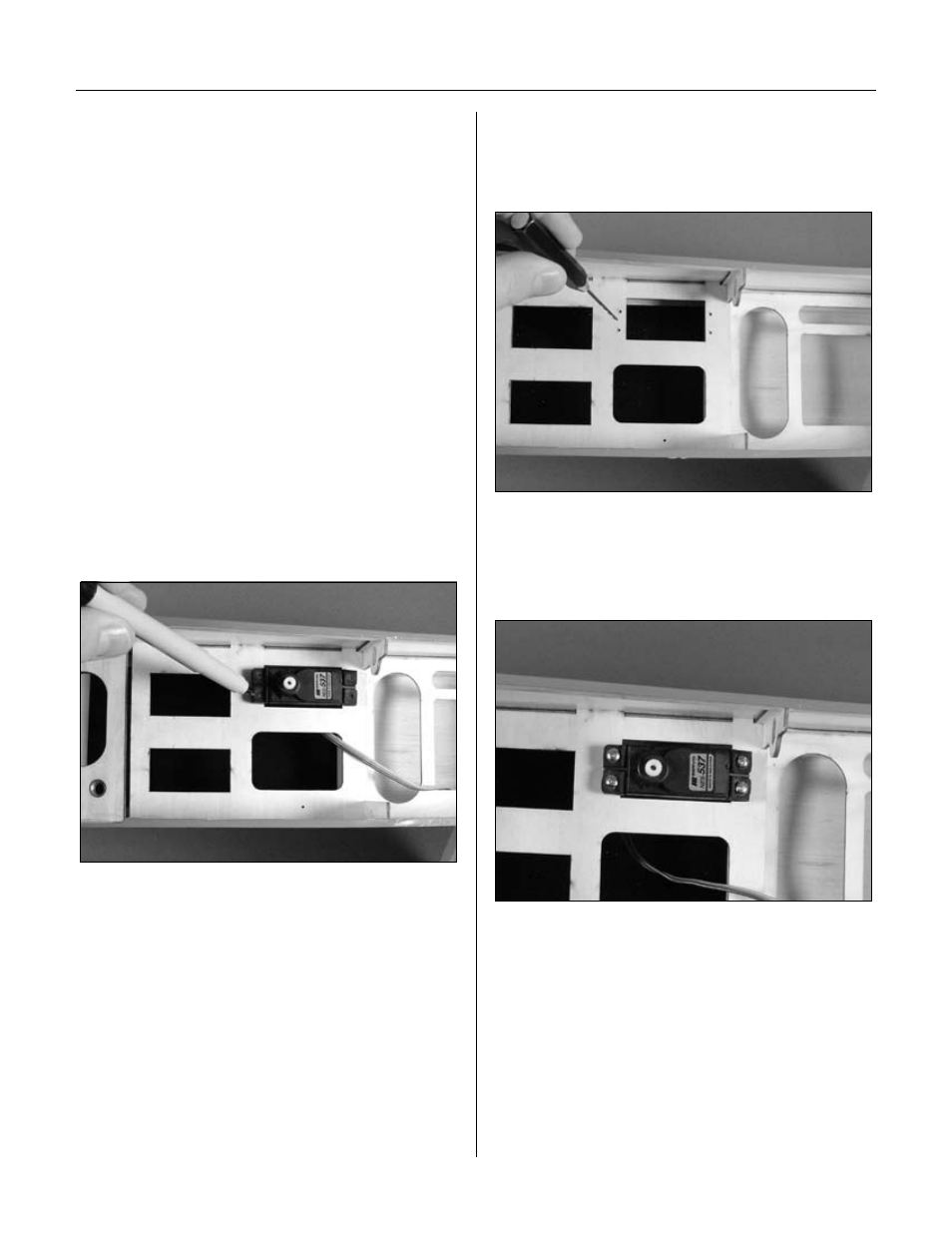

 .  .Step 1
If.you.choose.to.use.a.glow.engine,.place.the.throttle.
servo.into.the.fuselage..Use.a.felt-tipped.pen.to.mark..
the.locations.for.the.four.servo.mounting.screws.on..
the.radio.tray.
 .  .Step 2
Use.a.1/16".(1.5mm).drill.bit.to.drill.the.locations.for.the.
screws..Place.a.drop.of.thin.CA.into.each.of.the.holes.to.
harden.the.surrounding.wood.
 .  .Step 3
Secure.the.throttle.servo.using.the.hardware.supplied.with.
the.servo..Don’t.forget.to.install.the.grommets.and.brass.
eyelets.before.installing.the.servo.
