1

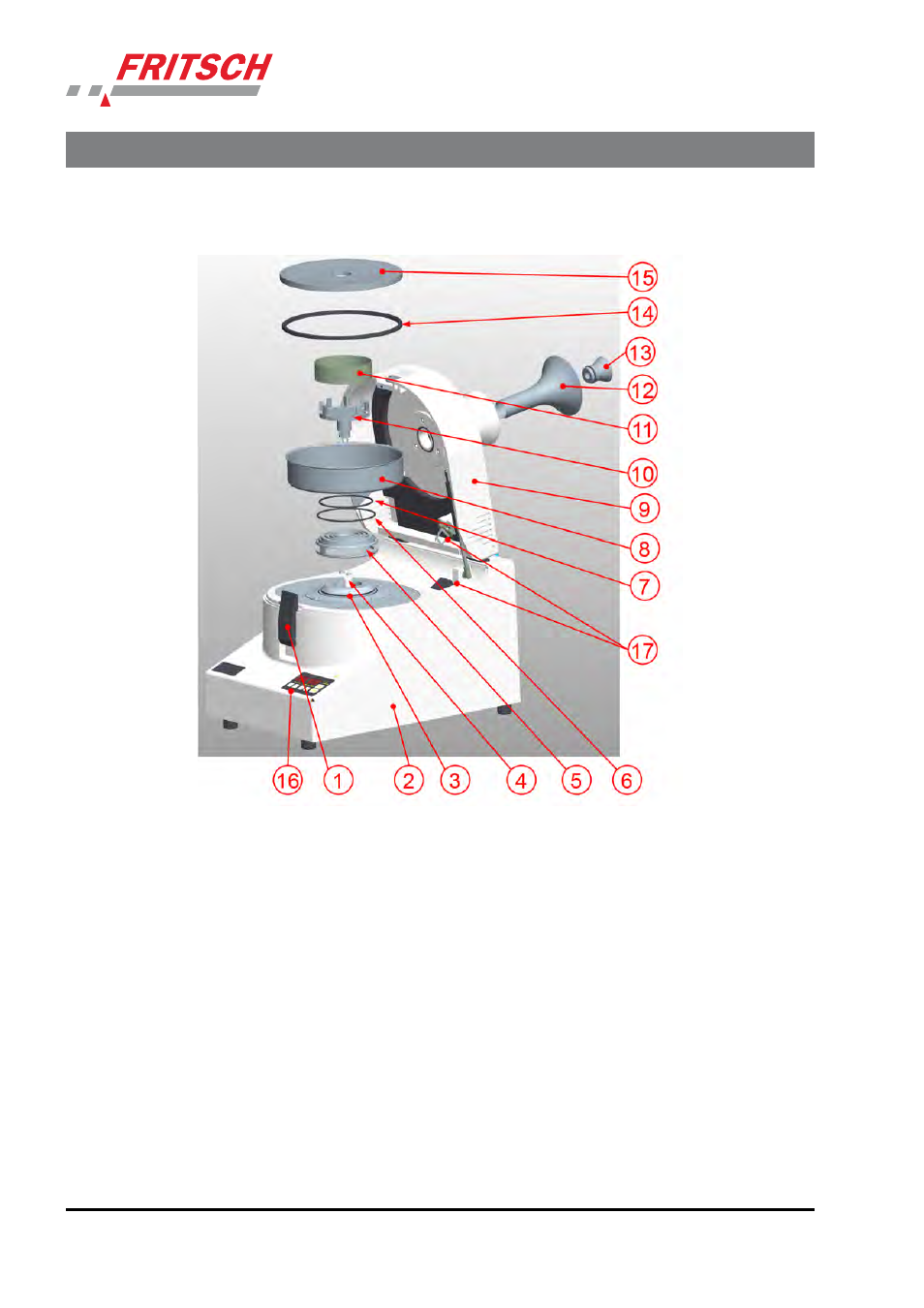

Basic structure
1 Latch
2 Lower part of housing
3 Motor mounting flange
4 Motor shaft
5 Labyrinth disk
6 O-ring, 94x3
7 O-ring, 88x3
8 Collecting vessel
9 Housing cover
10 Rotor
11 Sieve ring
12 Inner funnel
13 Inner funnel for cross-section reduction
14 Lid seal
15 Collecting vessel lid
16 Control panel
17 Actuator + lock
Basic structure
