Cub Cadet CC 4BP 32cc - Manual (Page 10)

Maintenance
7
4. Carefully remove the fuel line from the barb on
the fuel filter. Clean or discard the old fuel filter.
See Figure 2.11.
5. Inspect the fuel lines. Replace if they are
cracked.
6. Install a new filter by following the steps just cov-
ered in reverse order.
7. Test run blower before returning to service.

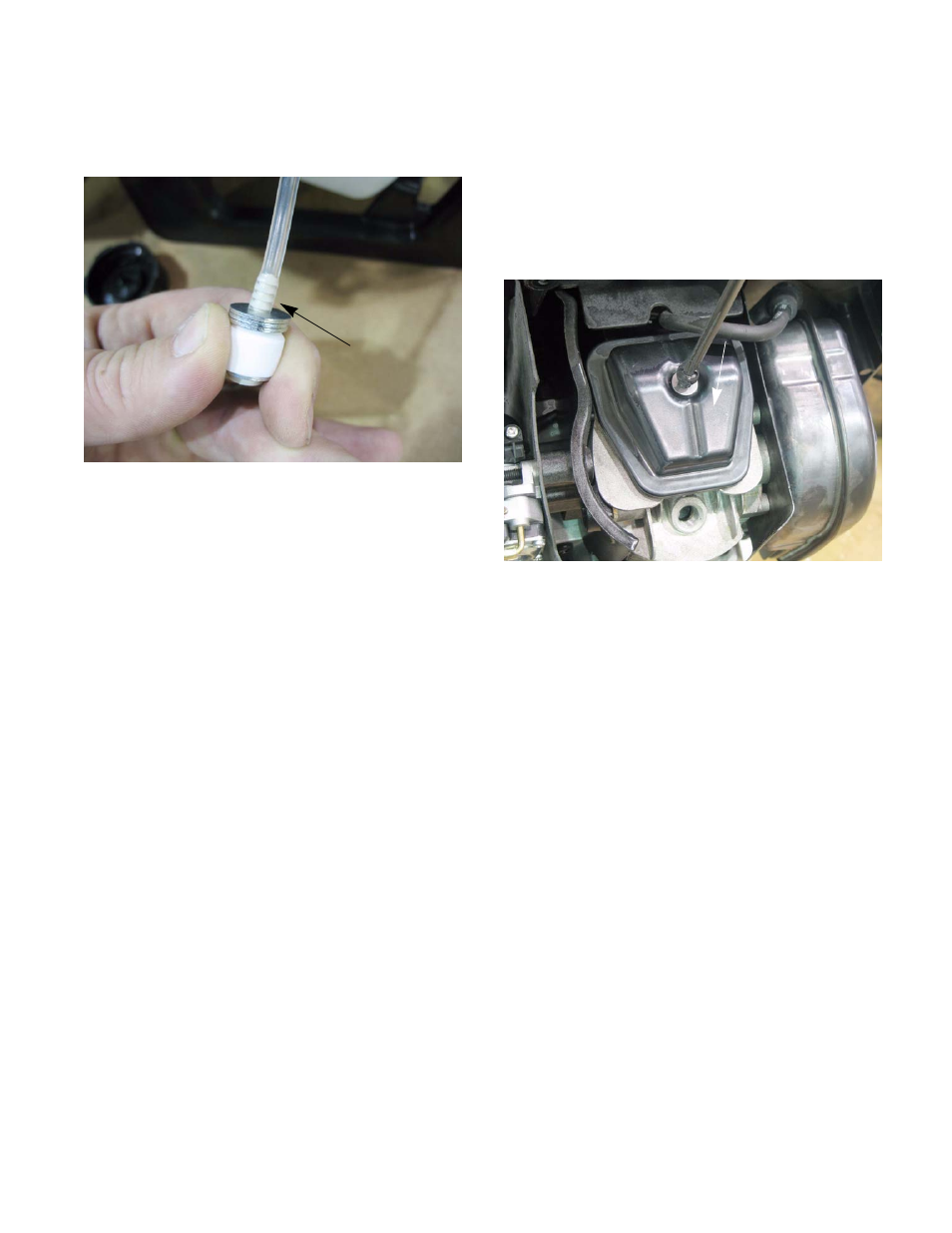

Figure 2.11
barb
Valve lash
To adjust the valves:
1. Remove the engine cover and spark plug by fol-
lowing the steps described in the spark plug sec-
tion of this chapter.
2. Remove the valve cover using a T-25 driver. See
Figure 2.12.
3. Rotate the crank shaft to bring the piston to top
dead center of the compression stroke (valves
closed).
NOTE: Use a probe in the spark plug hole to
track the piston position.
NOTE: The valve clearance for this engine is
.003”-.006”(.08-.15 mm) for both valves.
Figure 2.12
Valve cover
