IR Speed Dome Operating Manual
11
Dome Setting
Before the dome is installed, please finish the setup of the communication
protocol, baud rate and dome address. Set the DIP switch inside the dome body.

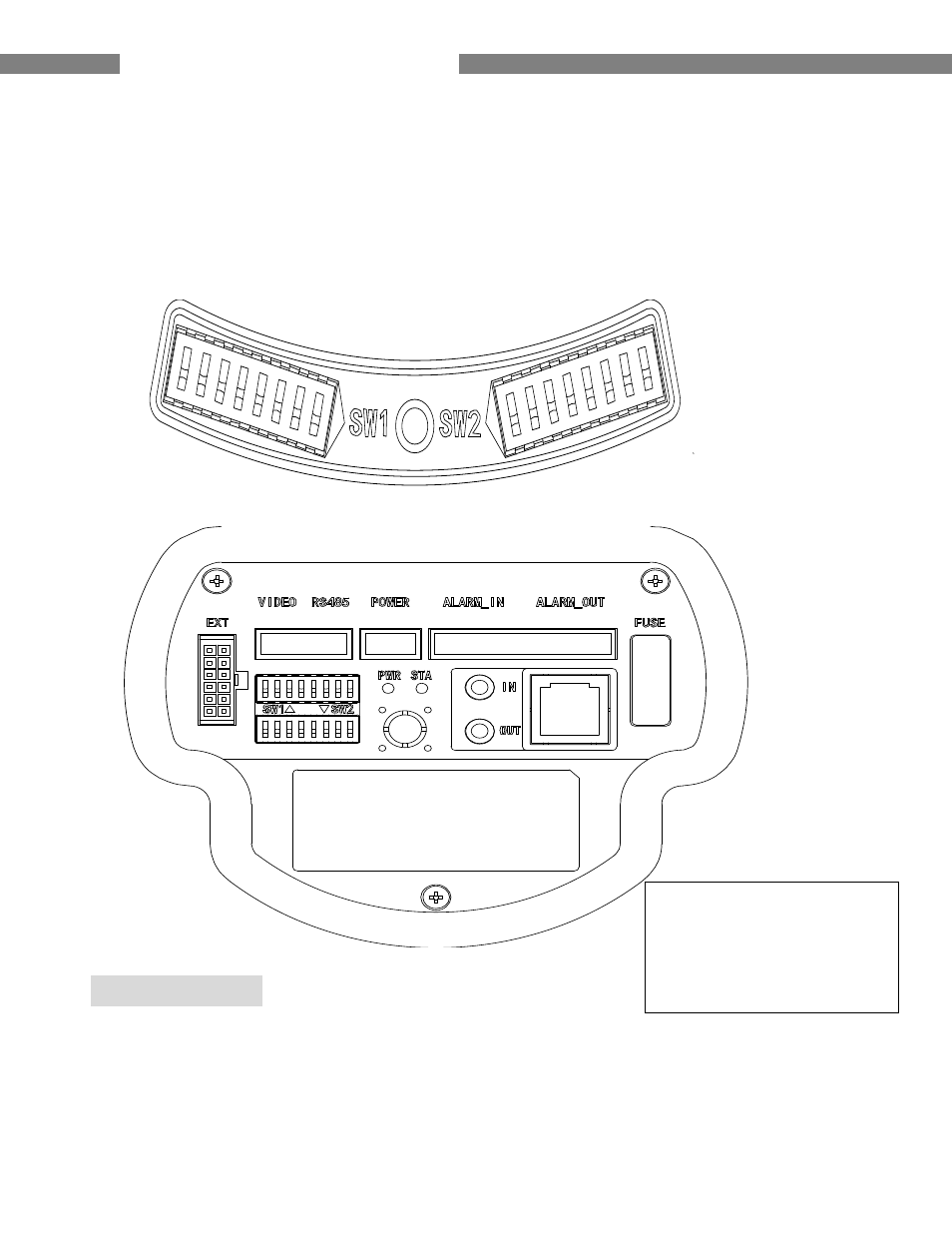

The relative DIP switch site and connecting wires are diagrammed below for
reference.
Protocol Setup
Our IR speed dome supports three protocols including Pelco P, Pelco D and HS.
All of them supports baud rate of 9600bps、4800bps、2400bps.
Set the No.1~4 dip switch for the protocol configuration.
SW1— Dip switch for
the dome address
SW2— Dip switch for
the dome protocol
