IR Speed Dome Operating Manual
9

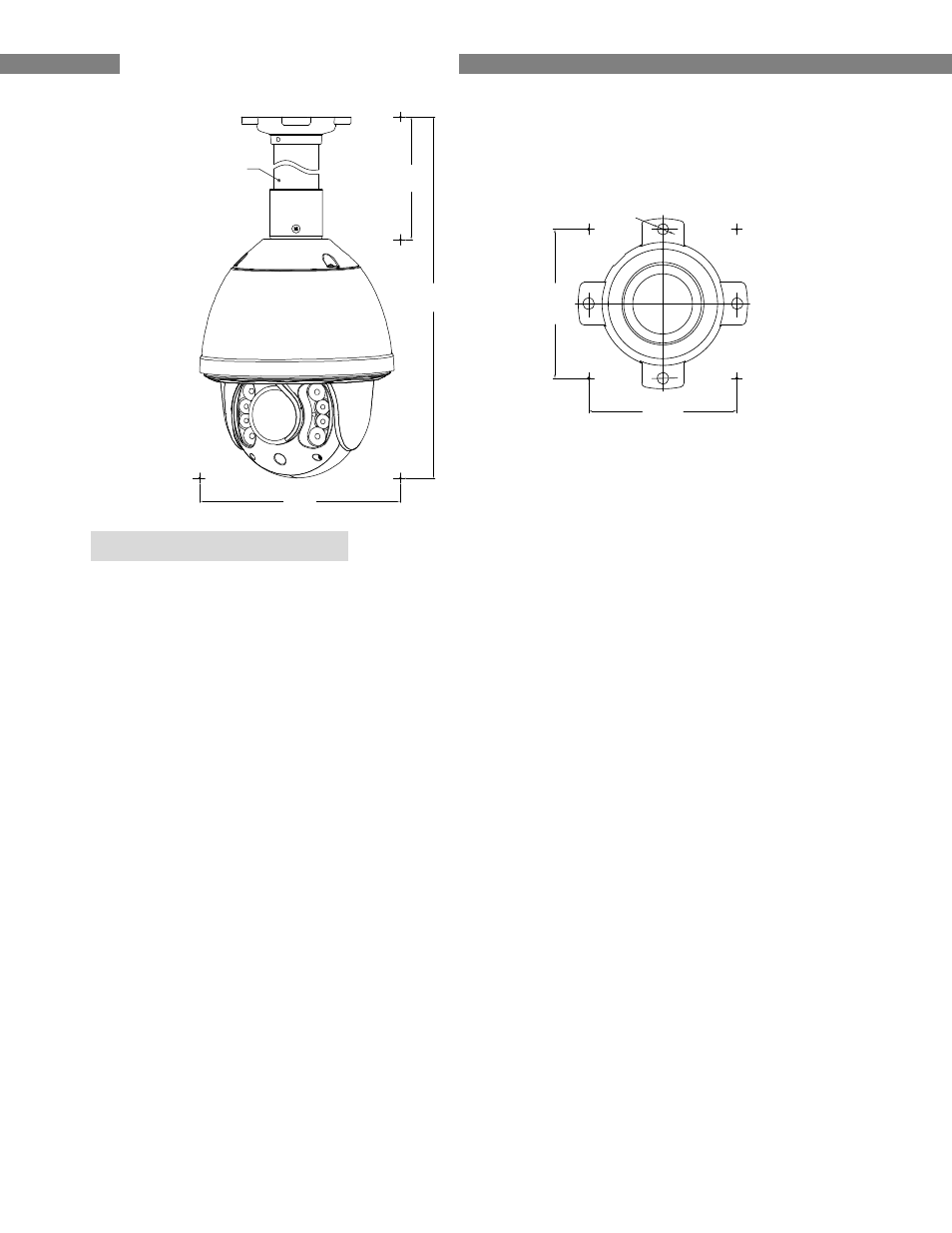

Pendant-mout
bracket
Ø210
48
5
220
Picture03 picture04
Installation Procedures
Notice: The wall and ceiling must be thick enough to install the expansion
bolts and can bear 4 times the weight of the dome camera itself.

Wall‐mount Installation Procedures :
1) Take out the wall‐mount bracket from the package , mark the installation hole
positions on the wall referencing to the dimension as picture 02.
2) Drill the hole and install 4 pieces of M8 expansion bolt into the hole.
4-Ш8
Ш105
Ш10
5
Pendant-mout
