COP-USA ALC-WF User Manual

Page 28

background image

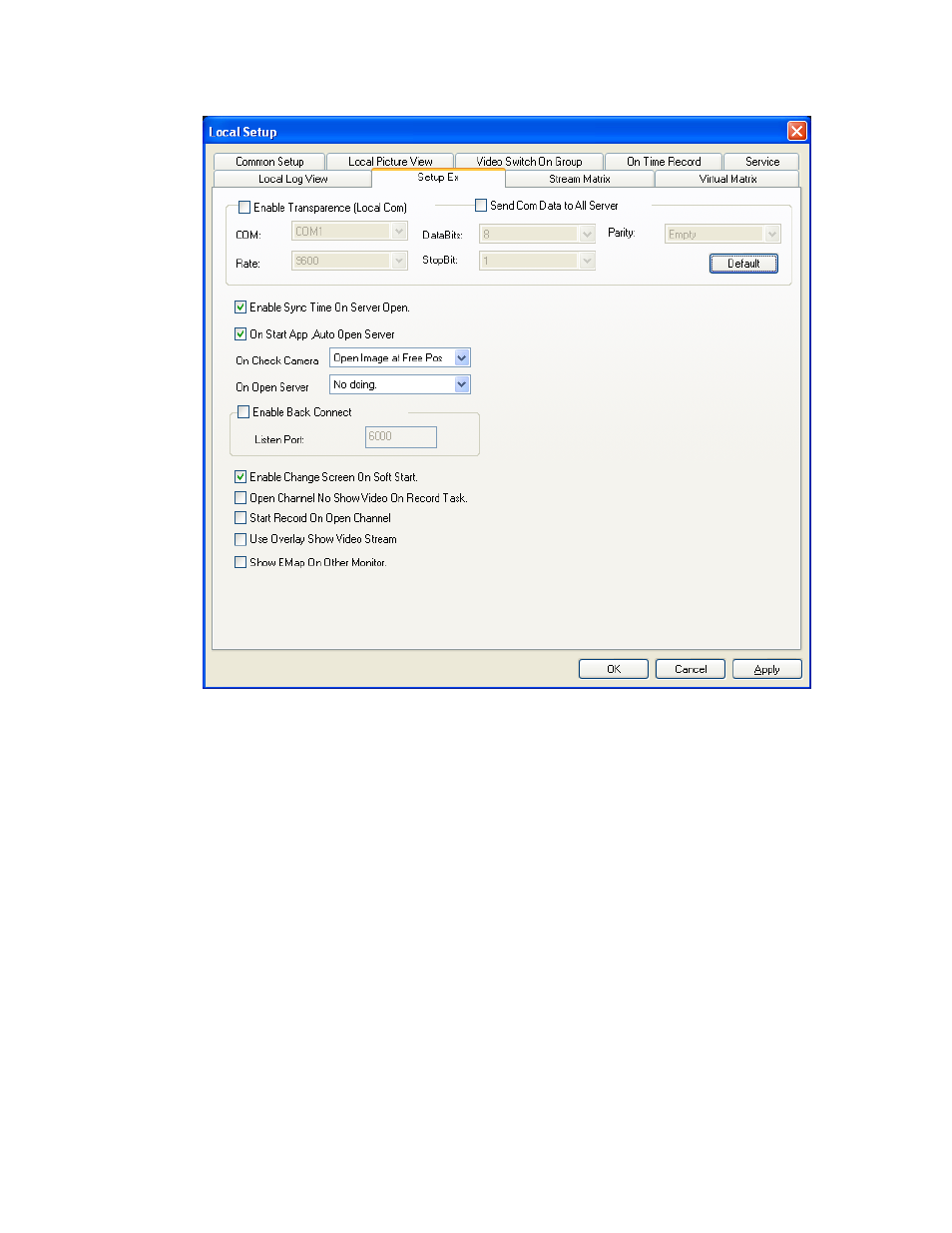

Figure (24)

7.1.1.7.1

Enable Transparence (Local Com) and Send Com Data to All Server

Function Description: When the “Enable Transparence (Local Com)” function is enabled,

the date collected on the spot can be transmitted to the serial port of the computer in the

surveillance center via 485 interface (or 232 interface) of the video server. For example, the video

server is configured in the factory and you want to transmit the data such as voltage to the

surveillance center via video server. At this time the local serial port can receive the data from the

control port of the video server. When the “Send Com Data to All Server” function is enabled, you

can connect the keyboard to the serial port of the computer via “485 to 232 converter” to conduct

the direct control of cradle head device connected to the video server or cradle head of the

network camera.

It is necessary to match the parameters of serial port devices connected to this computer. The

items to be set are

Com』, 『Data Bits』, 『Parity』, 『Rate』 and 『Stop Bit』.

7.1.1.7.2

Enable Sync Time On Server Open
