Step 4: In the 『 Option for Switch On Group』 , set the switch group cycle time between
groups. The minimum switch interval is 5S and the maximum switch interval is 120S.
Step 5: Select 『 Apply』, 『OK』 to save the settings.
Solution 2: Quick setting of group (take the setting of Group 1 as an example)
Step 1: Set the video server to automatically logon this software.
Step 2: Open the channel to be allocated to the group in the Video Window Area.
Step 3: Right click the mouse and then select 『 Save Current Channel As』.
Step 4: Input the user defined group name, for example “Group 1”.
Step 5: Click 『 OK』 to save the settings.
7.1.1. 4 On Time Record
Remark: The setting for on time record can only be conducted when the network video
encoder automatically logon the server.

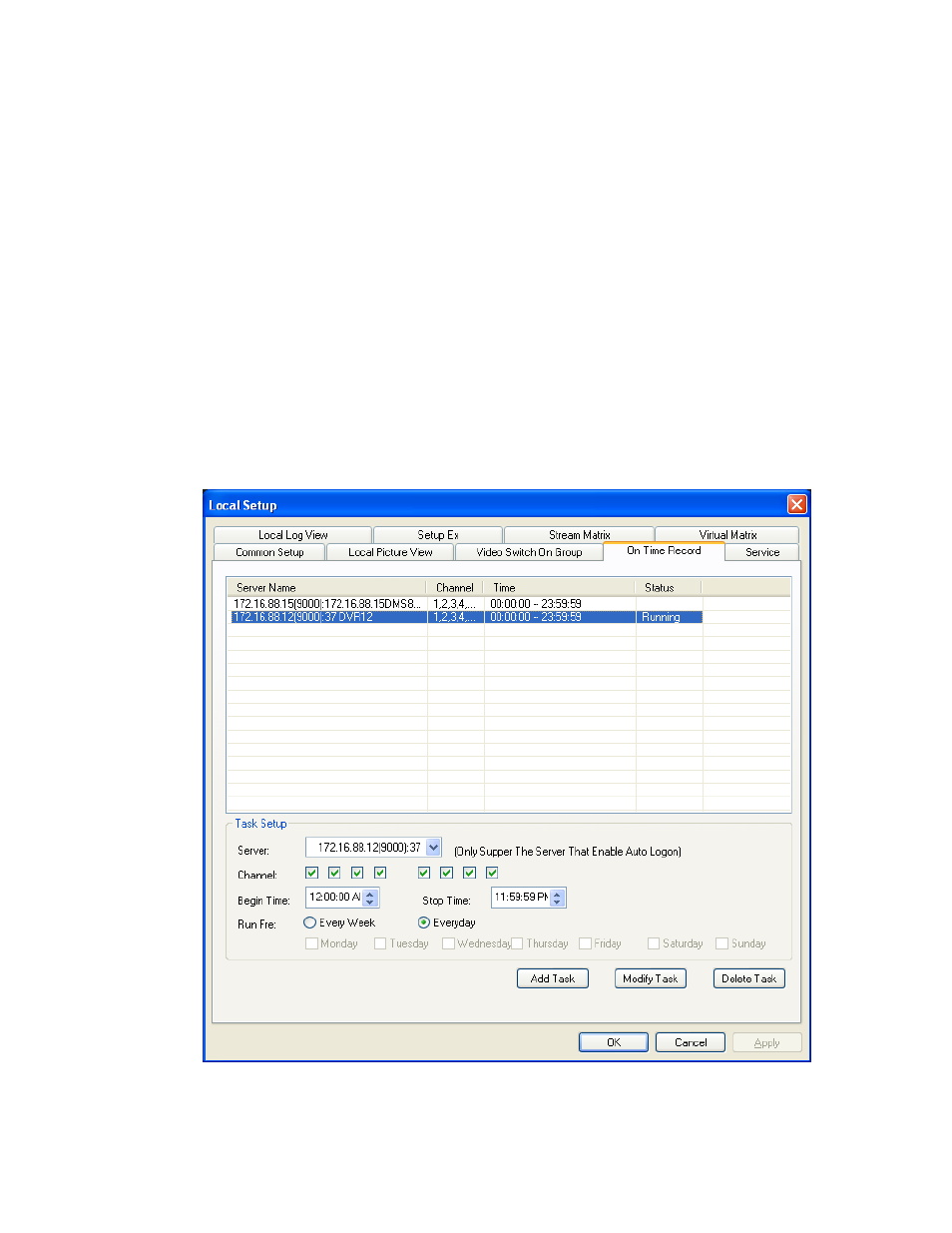

Figure (21)
The setting steps for on time record are as below:
