Browse analysis results – ChemoMetec NC-250 User Manual
Page 22
991-0252 Rev. 1.1
February 2013
22

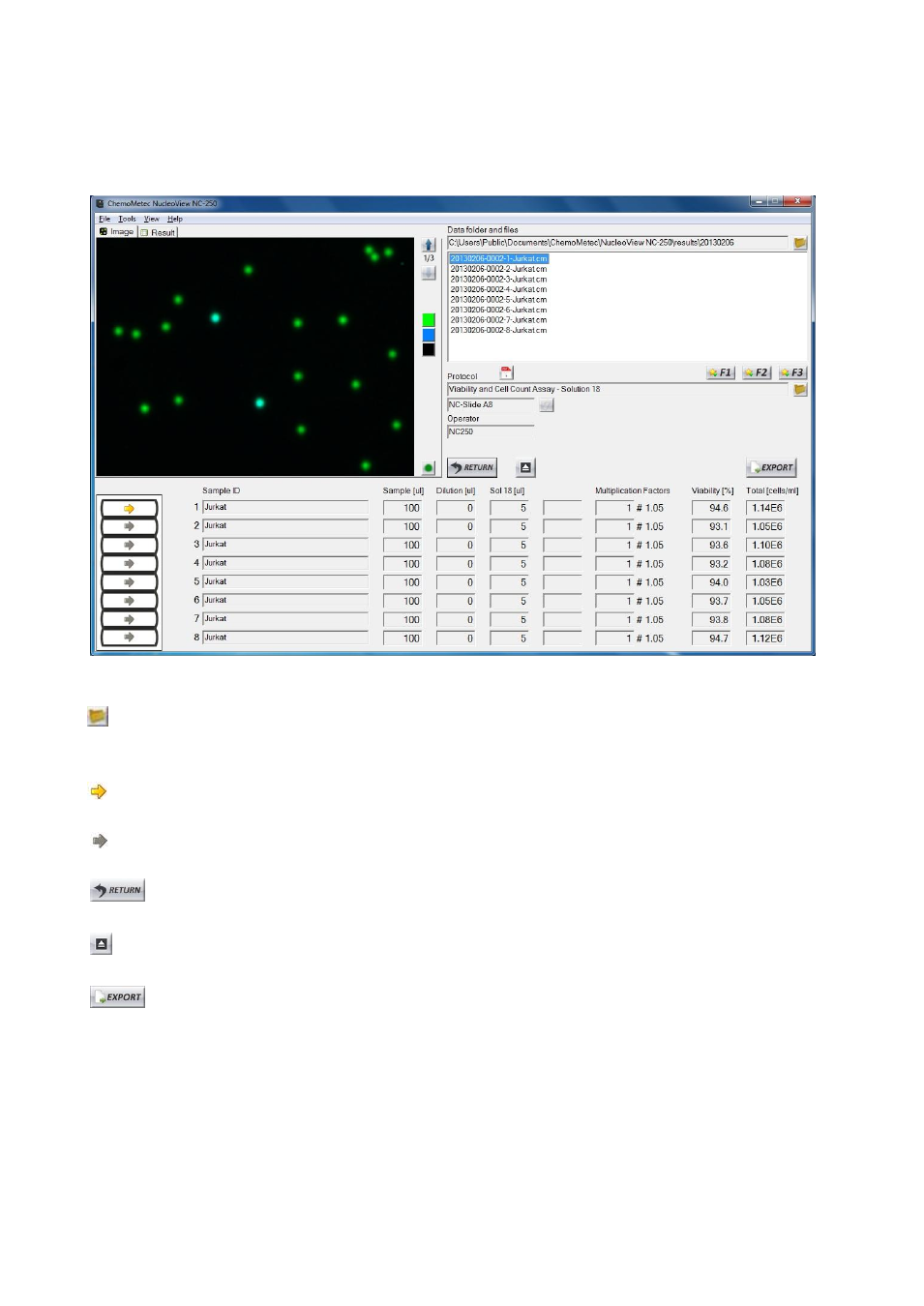

Browse Analysis Results
Buttons
in the upper right corner launches the file browser to browse images from a specified date range (day,
week, month or year).
marks the results for the selected file.
Click on this button to select the file
Return to ‘acquisition mode’ to run a new analysis, when the instrument is connected.
This button inserts or ejects the slide tray.
This button allows the user to export the results for all the files for the shown slide as a CSV file.
File list:
Click on a file in the data folder to browse the results of a previously acquired file. The file will be
opened and the image will be displayed. Optionally files acquired within the same slide may be
selected by clicking on the arrow in the desired chamber.
