Main Window
Menu Line: See the Menu Line section below for a more detailed description of content.
Image Tab Page: If a file is selected the image is shown on the left hand side of the main window. Zooming
in and out on the image may be done by using the scroll wheel with the mouse pointer inside the image
area. Zooming may also be achieved by using the + or - buttons. To zoom in on a tablet PC, touch the screen
with two fingers and then slide them apart. To zoom out, drag your fingers together. Pan with the ‘arrow’
buttons or by dragging with the mouse. Right-clicking the image will bring up a context menu with options
for copying the displayed image area to the clipboard.
Image Controls: The control icons on the right side of the image area are used to interact with the image.
From the top the functionalities are:

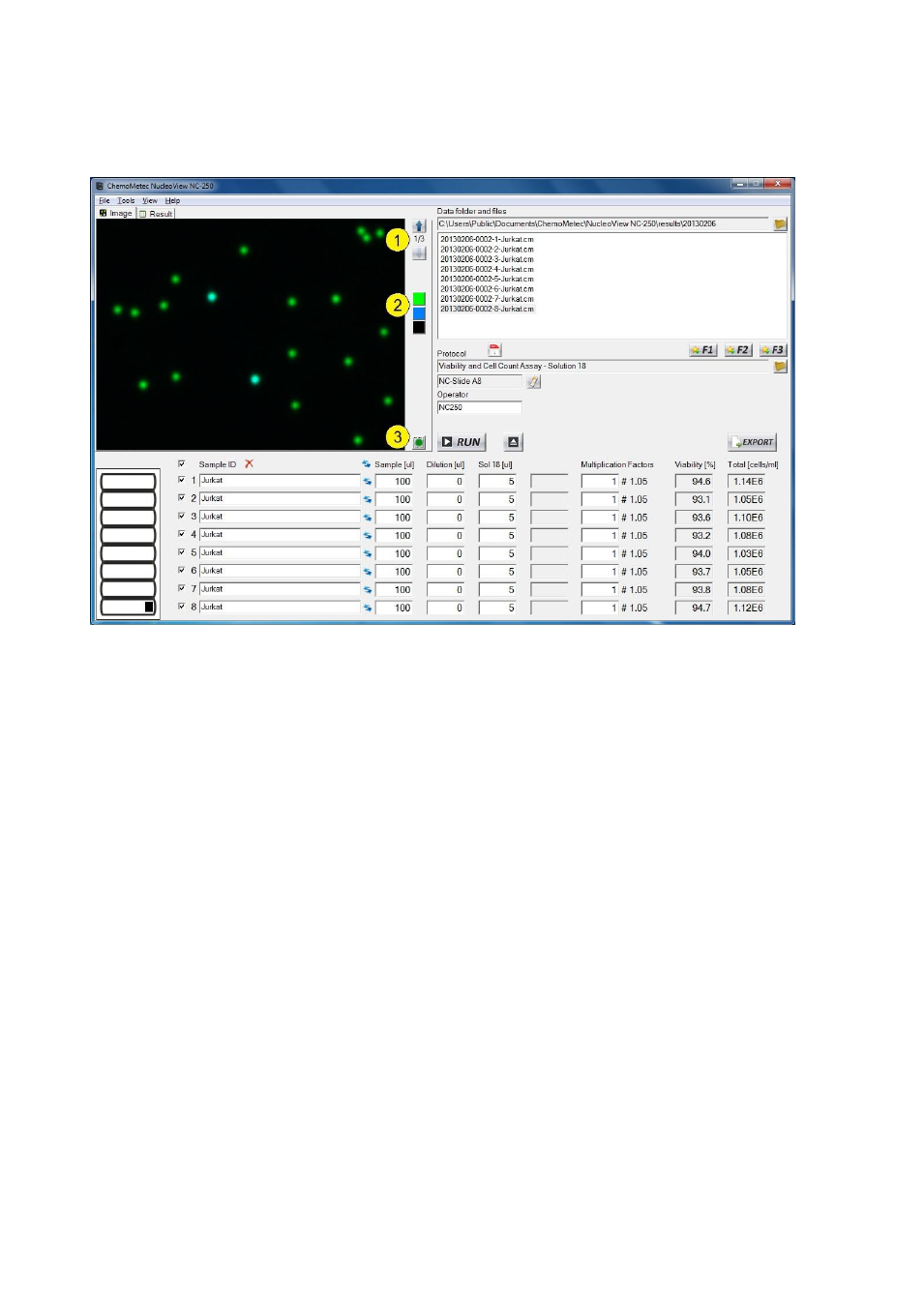

1 Image selection controls. These controls are used to select which image to show when a file holding
more than one image is selected. Images are numbered 1, 2 and upwards.
2 Channel color buttons. Colors assigned to each channel. Click on a channel color field to enable/disable
the display of the respective channel.
3 Overlay control. After an analysis is successfully completed, the ‘overlay’ button is enabled. Left-click on
this button to enable or disable the display of an Image Overlay, highlighting the cells counted in the total
count in the analysis. See the section on image overlay for more details.
