3.0 A CCESSING S ECONDARY F UNCTIONS
Operation Key Operation How To Operate
Zero/RST
Power
Function Mode
1. With Power off, press and hold the
Zero/RST key, then turn the power on.
2. Continue holding the Zero/RST key
until the display shows F01.
3. Pressing the Mode key changes the
value of the selected function mode.
Pressing the Zero/RST key advances from
one parameter to the next The list of
function are provided in the next section.
(See picture above).
Function Mode Clear Memory Date
1. With Power off, press and hold the
Mem key, then turn the power on.
2. Continue holding the Mem key until
nonE appears on the display.

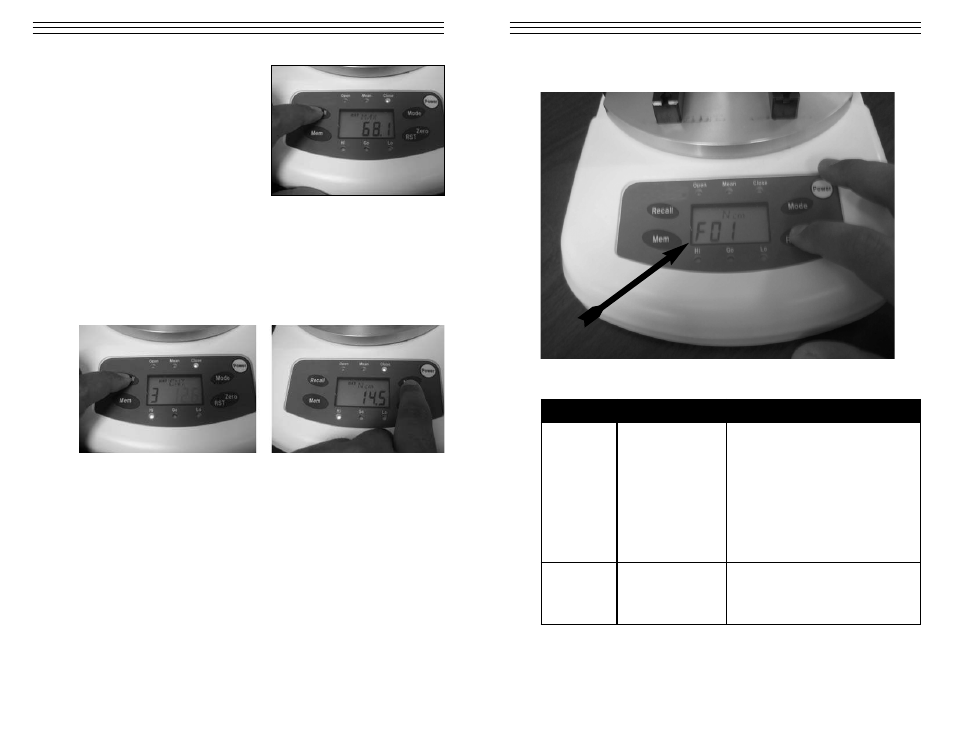

This photo indicates the torque meter is in Function Mode.
IMPORTANT: If the display indicates normal operation of the torque meter, but
F01 is not seen on the display, the Zero/RST key was released
too soon. Turn off the torque meter and repeat the process.
- 12-
3. Press Recall key second time to
access the following information.
• Max
• Min
• Average
• Stored data (Order of data
recall is based from the last
data stored in memory)
To access the stored measured value
use the RECALL key to scroll thru the
values. (This will be after the MIN
value is displayed). The display will flash two sets of numbers, the first number
indicates the memory ID and the second number is the value stored on that
memory ID.
NOTE: The order of values is from the last data stored to the first data stored.
To review previous values shown, scroll thru the values using
the RECALL key.
Displays Max, Min and Average Values
Picture above indicates the memory ID followed by the stored data. Pressing the
mode button any time exits out of the memory window. Shown on the next page
is a chart outlining how the Recall function works.
