TESC Operator's Manual, Rev 1.0
10
Getting Started
CANNON®
Connect cables
All primary cables are shipped with the TESC System. Refer to Figures 2, 3, and 4 as necessary.
Caution:
The MAINS AC pass-through connector on the TESC base is
not controlled by the TESC System ON/OFF switch. Whenever the
TESC base is plugged in, power will be passed to the Brookfield®
viscometer.
1. Verify that the DV2T power switch is off.
2. Verify that the TESC power switch is off.
3. Connect the MAINS AC pass-through power cable from the TESC base to the DV2T.
4. Connect the RTD probe from the TESC base to the socket on the back of the DV2T.
5. Connect the MAINS AC power cable to the TESC and plug it in.

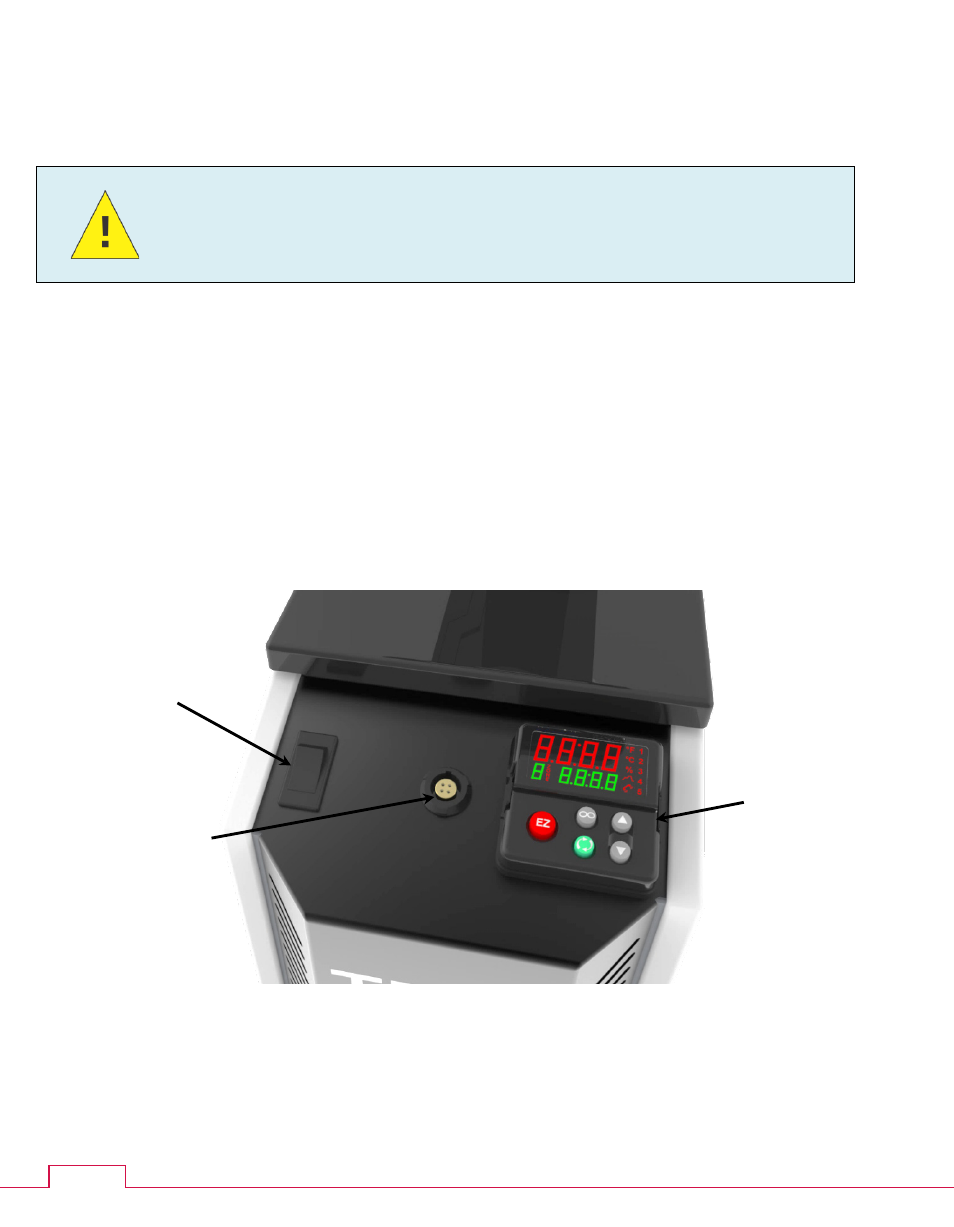

Figure 2 — TESC with Watlow® controller
Watlow®
controller
connection
(RS-485)
On/off
Watlow®
controller
