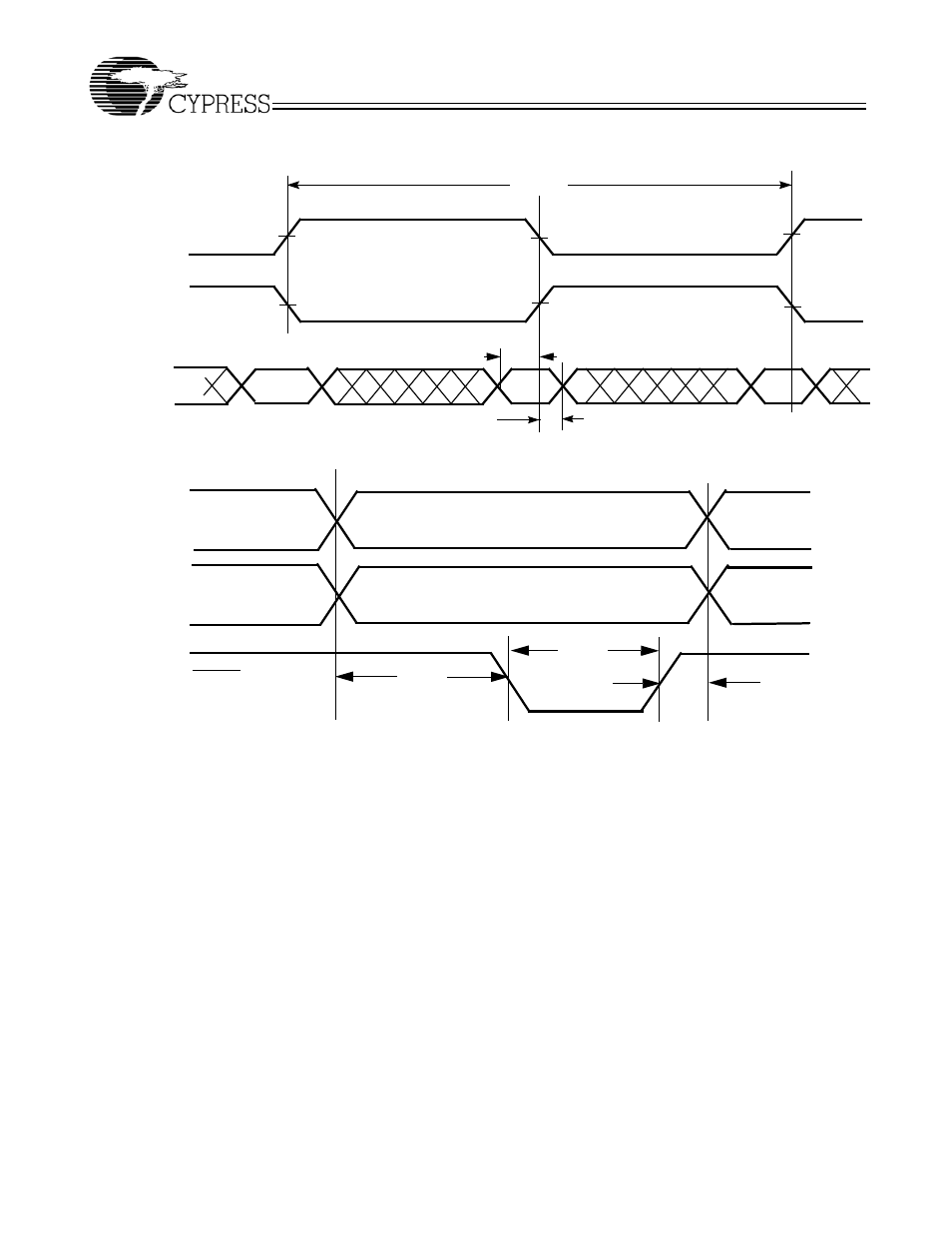

Switching Waveforms for the CYV15G0104TRB HOTLink II Receiver
RXCLKA+
RXDA[9:0]
t
RXDV+
t
RXDV–
t
RXCLKP
Receive Interface
Read Timing
RXCLKA–
RXRATEA = 1
ADDR[2:0]
t
DATAS
Bus Configuration
Write Timing
DATA[6:0]
WREN
t
DATAH
t
WRENP
