External Connections

Connecting to a TV and VCR

Playing Back on a TV Screen

Selecting the Type of TV

To change the operating mode, refer to

About the Operating Modes (

9).

Before connecting the camcorder, select the [TV TYPE] setting according to the TV set to
which you will connect the camcorder - [WIDE TV]: TV sets with 16:9 aspect ratio or
[NORMAL TV]: TV sets with 4:3 aspect ratio (

35).

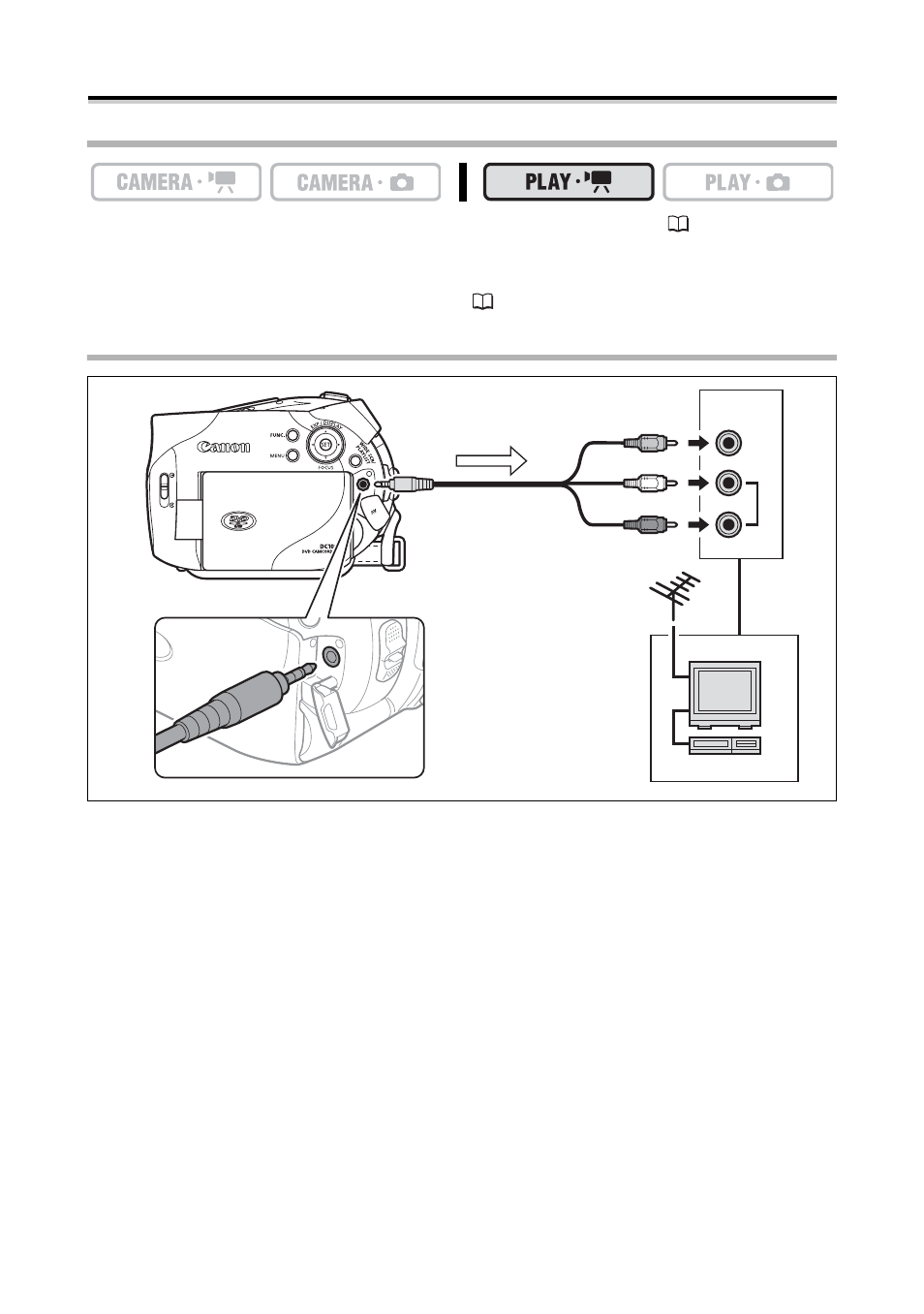

Connection Diagram: TVs without SCART terminal

VIDEO

AUDIO

INPUT

STV-250N Stereo
Video Cable
(Supplied)

Open the terminal cover

Signal flow
