Installation specification, 2 wiring diagram – STIEBEL ELTRON Accelera 300 User Manual
Page 24
24
| ACCELERA® 300 HEAT PUMP WATER HEATER
WWW.STIEBEL-ELTRON-USA.COM
INSTALLATION
SPECIFICATION

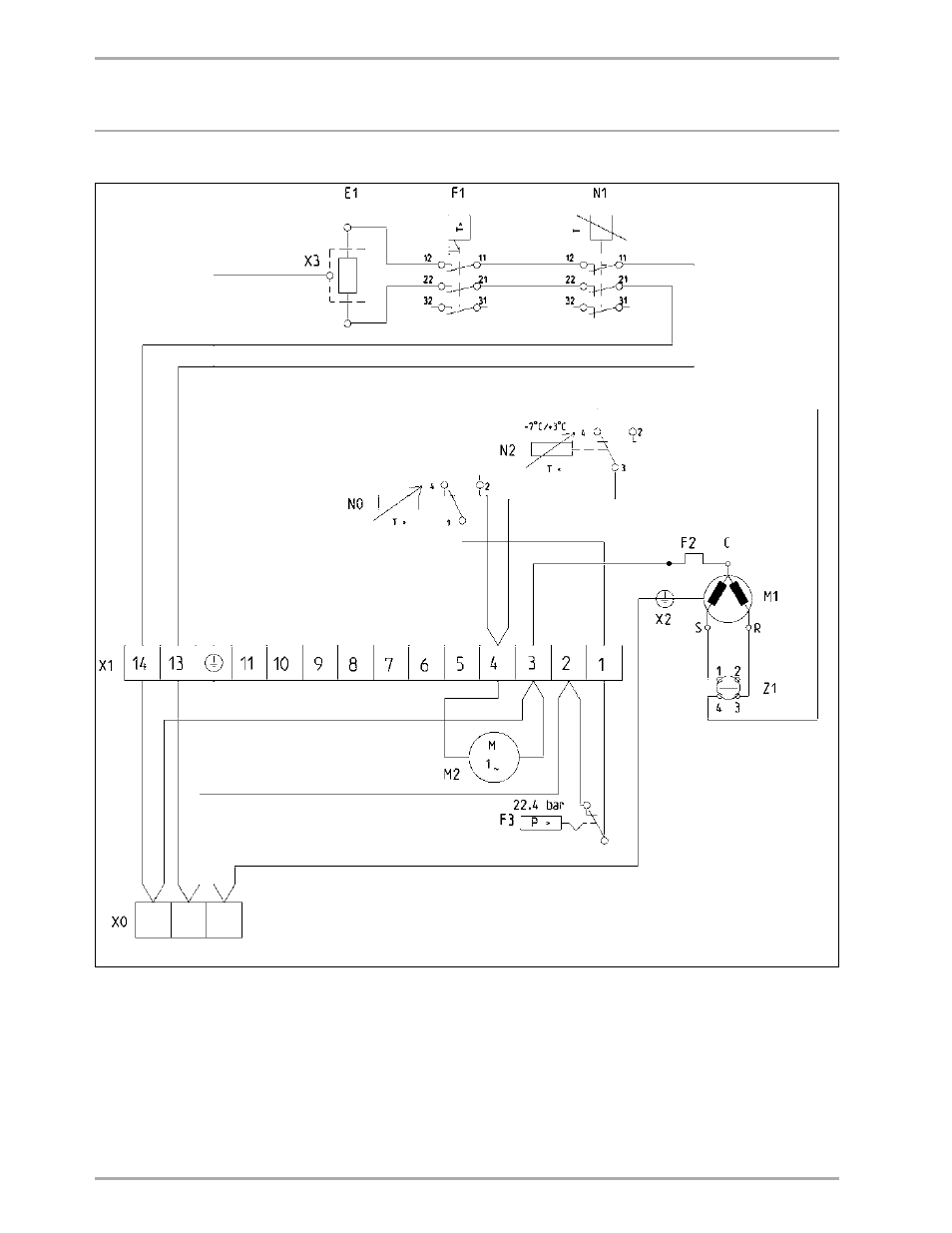

16.2 Wiring diagram
1,65 kW
L1
L2
G
26
_03
_01
_08
82
E1 Booster heater
F1 High limit safety cut-out, booster heater
F2 Compressor motor protection (Klixon)
F3 Safety pressure limiter (high pressure)
M1 Compressor
M2 Fan
N0 Heat pump control thermostat
N1 Thermostat - booster heater
N2 Frost monitor
X0 Main terminal
X1 Heat pump terminal
X2 Ground, compressor
X3 Ground, booster heater
Z1 Capacitor
