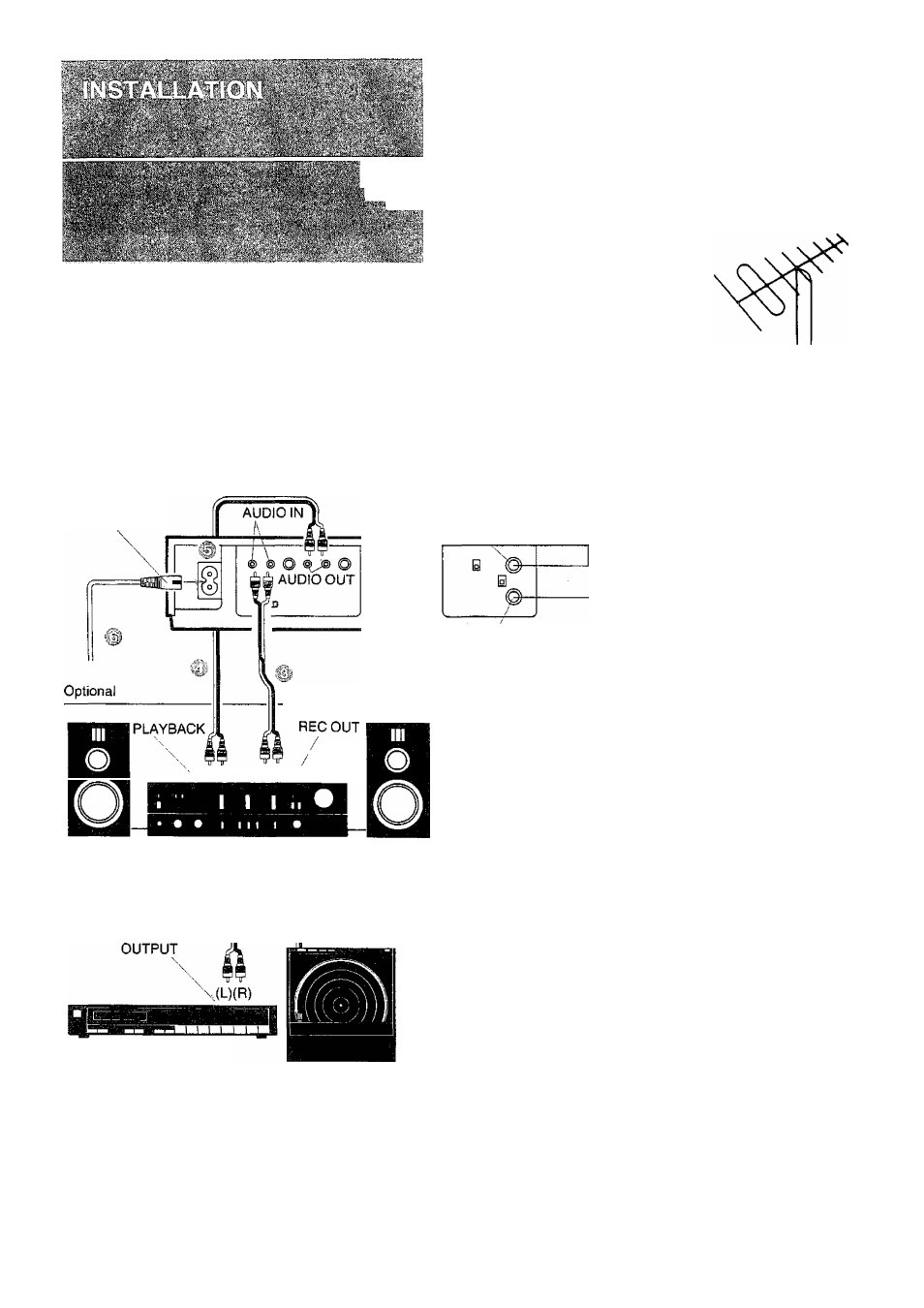

«When listening to a radio while the VTR is in operation, the
radio reception may be distorted. In this case, move the
radio away from the VTR.
TV Set
Optional
AC Mains Lead
(Supplied)
RFOUT
\
\
Optional
To the Aerial Socket
DIN-DIN Coaxial Cable
(Supplied)
il
RFIN
Stereo Cable (Supplied)
Stereo
,(L)(R) (L)(R) /Amplifier
Speaker (L) ^/(L)(R) (L)(R)'\ Speaker (R)
TUNER
FM Stereo Tuner
PHONO
Record Player
NV-H65A:
FOR YOUR SAFETY
Install any external aerial to AS 1417.1.
Connect the external aerial to the RF Input Socket on
the VTR.
# Connect the aerial terminal on your TV set to the RF
Output Socket on the VTR with the supplied DIN-DIN
Coaxial Cable.
^ Connect the Audio Input Sockets on the VTR to the
Stereo Amplifier REC OUT Sockets.
Connect the Audio Output Sockets on the VTR to the
PLAYBACK Sockets on the Stereo Amplifier.
Connect the AC Mains Lead to the AC Mains Socket of
the VTR.
■ Connect the AC Mains Lead to the mains outlet.
