Preparation

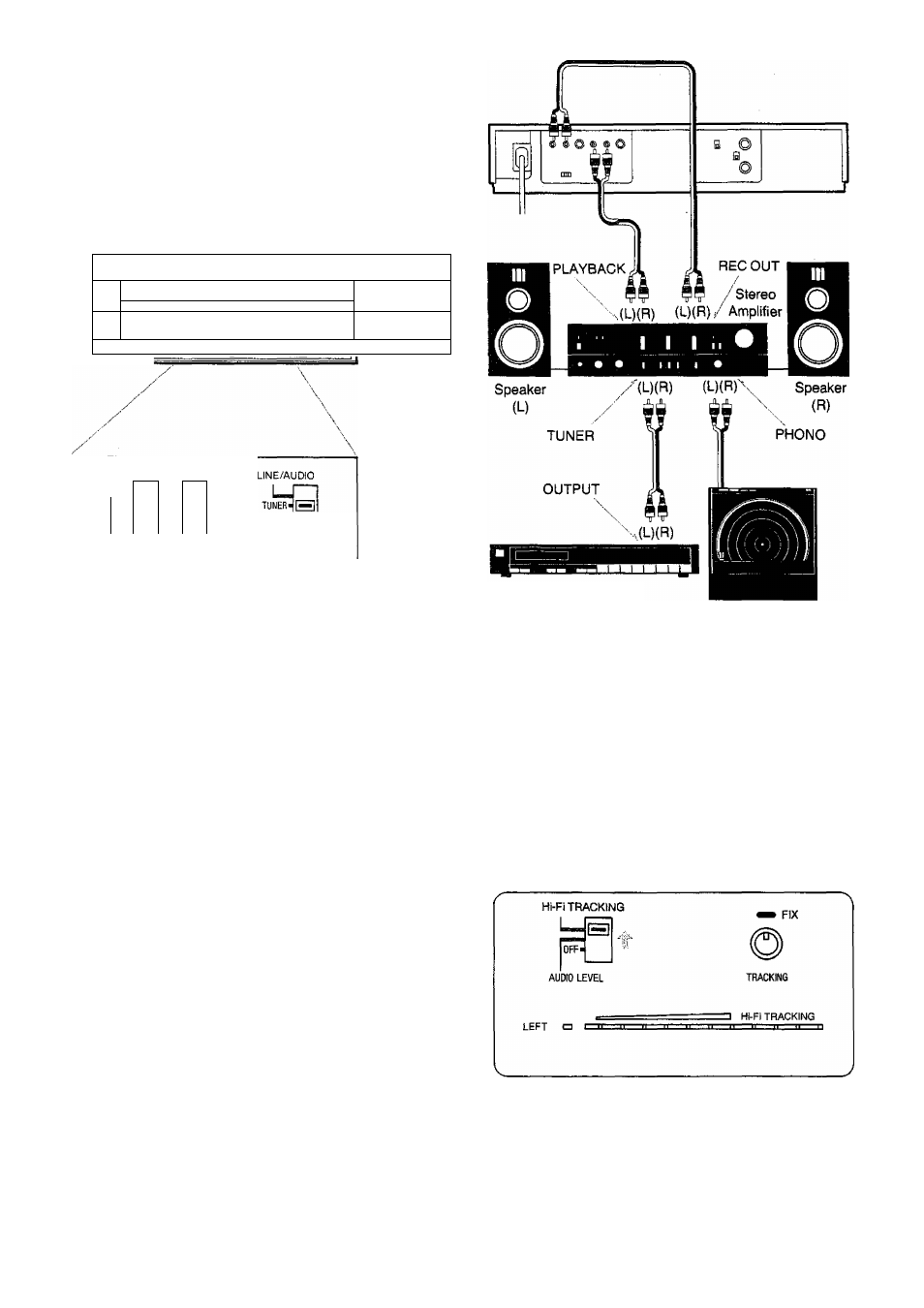

•Connect the VTR to the hi-fi audio system.
(Example of a connection diagramme is shown),
•Insert a video cassette with the erasure prevention tab
intact.
When a video cassette is already inside the VTR, press
the VTR On/Off Switch to turn it on.
•Switch on the hi-fi audio system and select an audio
source.
Note: Selection of an audio track is not necessary for
recording.
Set the Input Signal Selector to “Line/Audio”.
•To start the recording, press the Record Button (•).
■M, To achieve smooth transitions between adjoining
recordings, see notes on page 25.
FM Stereo Tuner
Record Player
•To start the playback, press the Play Button (►).
•Press (for playback of both mono and stereo recordings)
the “Audio Playback Mode Selector Button" repeatedly so
that the “Left" and “Right” Audio Track Indicators light up.
This adjustment may be necessary when playing back a
tape which was recorded on another hi-fi VTR.
Set the Audio Level Meter Selector to “Hi-Fi Tracking” and
slowly rotate the Tracking Control while observing the
Audio Level Meter, for highest possible meter indication.
•The audio level meter on this VTR is a “Peak-Hold"
type.
•If the sound is impaired by high frequency distortion
when recording from an FM tuner, set the MPX
Filter switch to “On”. If there is no distortion when
recording from an FM tuner, and for all other
recordings, set this switch to “Off”,
