i-ocaiion OT uonirois ^conimuea;

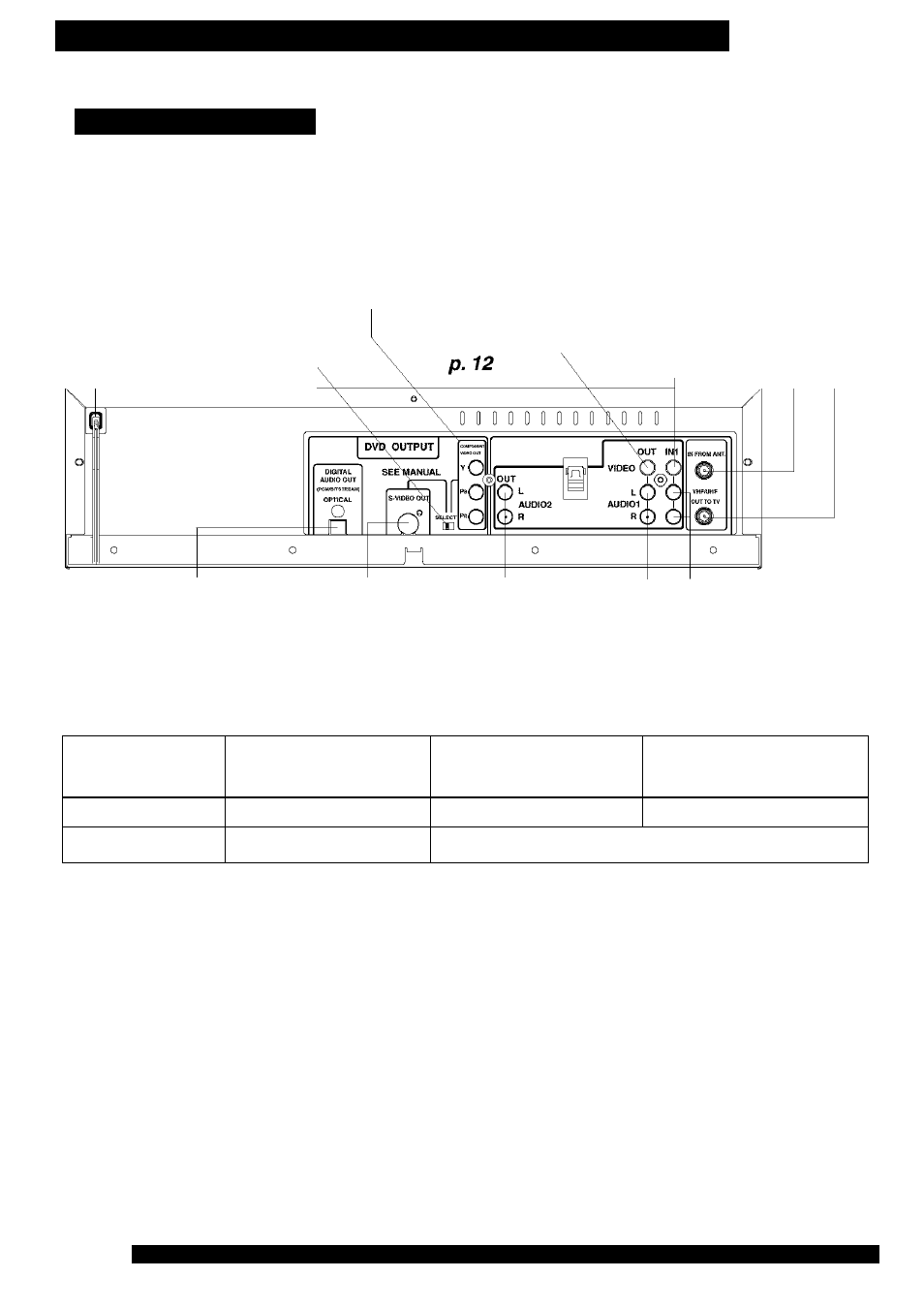

Rear View of DECK
AC Power Plug
• While plugged into an AC outlet,
this DECK consumes 4 W of
electrical power in off mode.
Bold: VCR Function
Bold Italic: VCR and DVD Functions
Italic. DVD Function
Component Video Output
Connector (Y,
P b , P r )
(DVD Only)
p. 13
SELECT SW (DVD Only)
p. 13
VHF/UHF Antenna Output Terminal
p.12
VHF/UHF Antenna Input Terminal
p. 12
Video Output
Connector
Video input
Connector
p. 35
Optical Digital Audio
Output Connector
(DVD Only)
p. 15
S-Video Out
Connector
(DVD Only)
p. 10, 13
Audio Output 2
Connector (UR)
Audio Output 1
Connector (UR)
p. 12
Audio input
Connector (LVR)
The foiiowing tabie shows the status of the output jacks when in VCR or DVD mode.
Video Output
Audio Out 1
Audio Out 2
Component
Video Output
S-VIDEO OUT
VCR YES N/A N/A
DVD YES YES^^SELECT SW (Switchable)^ YES
PROG functions on the remote are not available when using Component Video Output
and S-VIDEO OUT. Please set TV to either RF INPUT or VIDEO INPUT, and then press
PROG.
To enjoy PROGRESSIVE SCAN video (PV-D4752 only)--------------------------------
(1) . Connect Component Video Output to the component video input terminals of a television.
(See p. 13.)
(2) . Set the “COMPONENT VIDEO OUTTS-VIDEO OUT” SELECT SWITCH, in the back of the
DECK, to “COMPONENT VIDEO OUT.” (See above.)
(3) .When the PROGRESSIVE button is pressed, the ON lamp lights up (see p. 9) and the
PROGRESSIVE SCAN signal is output from the Component Video Output Connector.
Note
• The PROGRESSIVE button can be operated when the DECK is in DVD function mode.
• The screen may shift off-center when using progressive output. Please adjust the screen
position if this occurs. (Refer to your TV manual.)
• The unit does not output video signals from the “VIDEO OUT” or “S-VIDEO OUT” terminals
when the ON lamp is lit.
