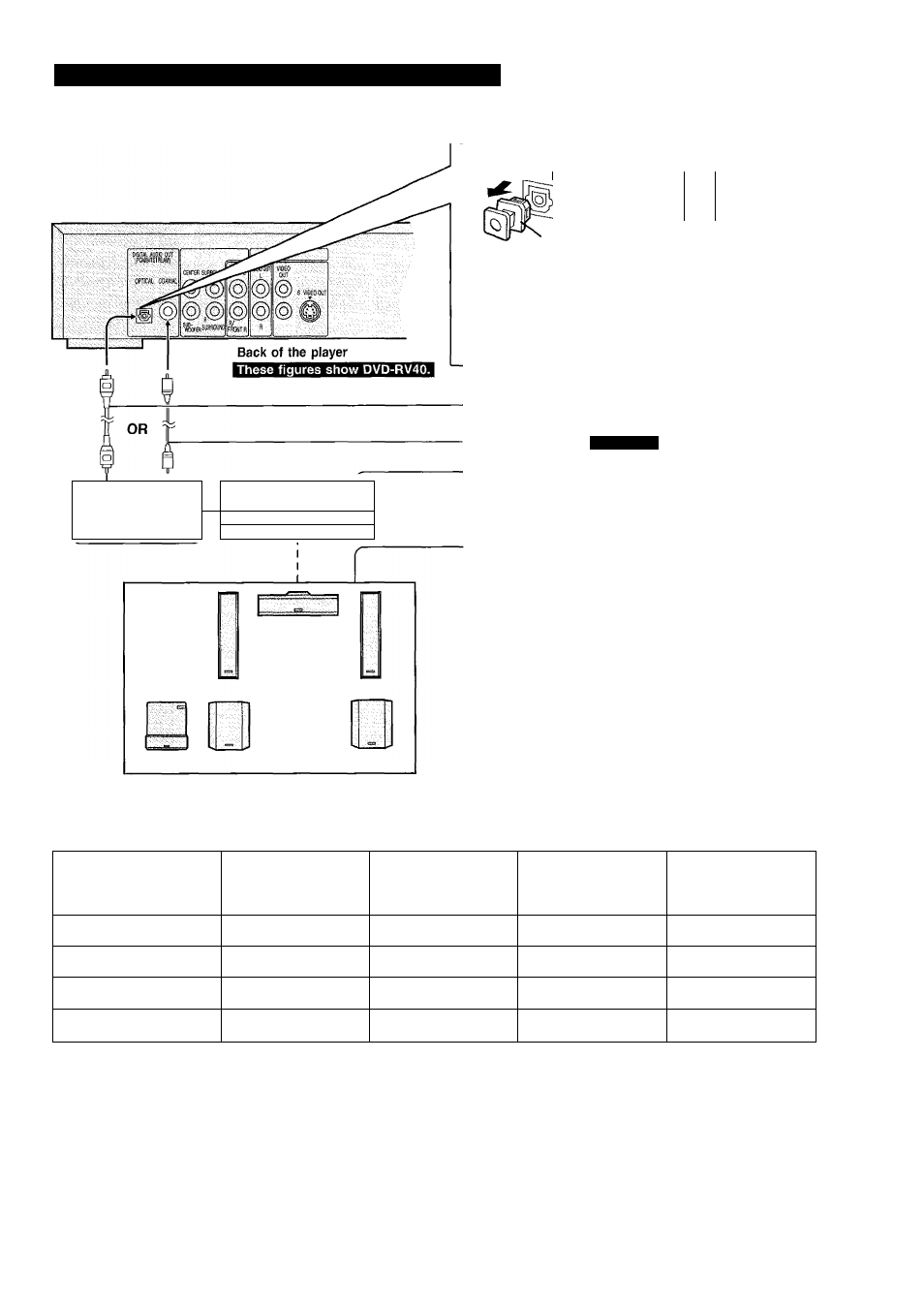

Connecting an amplifier with a built-in decoder
You can enjoy the multi-channel surround sound found on DVD recorded with Dolby Digital, DTS Digital Surround or MPEG by connecting an
amplifier with a built-in decoder or a separate decoder-amplifier combination.
' l \ '
°dò^
0 CZnDCTD
@@@
OPTICAL COAXIAL
0
‘""Lj.;, ;,i.— ------------------
Note when connecting the optical digital audio cable
Align the plug with
the terminal
Dust protection
cap
• Remove the dust protection cap from the optical digital audio
output terminal and connect the cable firmly so that the
configurations of both the cable and the terminal match.
• Keep the dust protection cap and reattach when not using the
terminal.
Optical digital audio cable
• Do not bend the optical digital audio cable when connecting it.
Coaxial audio cable
DVD-RV40
Amplifier with a built-in decoder
• Read the instructions for the amplifier and speakers for
connection details.
Speakers
(You can connect from 3 to 5 speakers including the front two.)
• Front speakers (L/R)
•Center speaker
• Surround speakers (L/R)
• Subwoofer
When you have finished connection
Make changes to “7 Digital Audio Output” to suit your decoder (■► page 37).
Decoder
Item
Dolby Digital decoder
DTS Digital Surround
decoder
Dolby Digital/
DTS Digital Surround
decoder
Dolby Digital/
DTS Digital Surround/
MPEG audio decoder
PCM Down Conversion
Yes^
Yes^
Yes^
Yes^
Dolby Digital
Bitstream
PCM
Bitstream
Bitstream
DTS Digital Surround
Off
Bitstream
Bitstream
Bitstream
MPEG
PCM
PCM
PCM
Bitstream
^If this is set to “No”, no audio will be output when DVDs recorded in 96 kHz linear PCM are played. (Audio will be output as it is if the DVD does
not have copyright protection recorded on it.)
•These changes to digital audio output must be made, otherwise bitstream signals the decoder cannot handle will be output. If
these signals are output, “noise” will be output which can cause harm to your ears and speakers.
•You cannot use DTS Digital Surround decoders not suited to DVD.
•Additional equipment and cables are not supplied.
