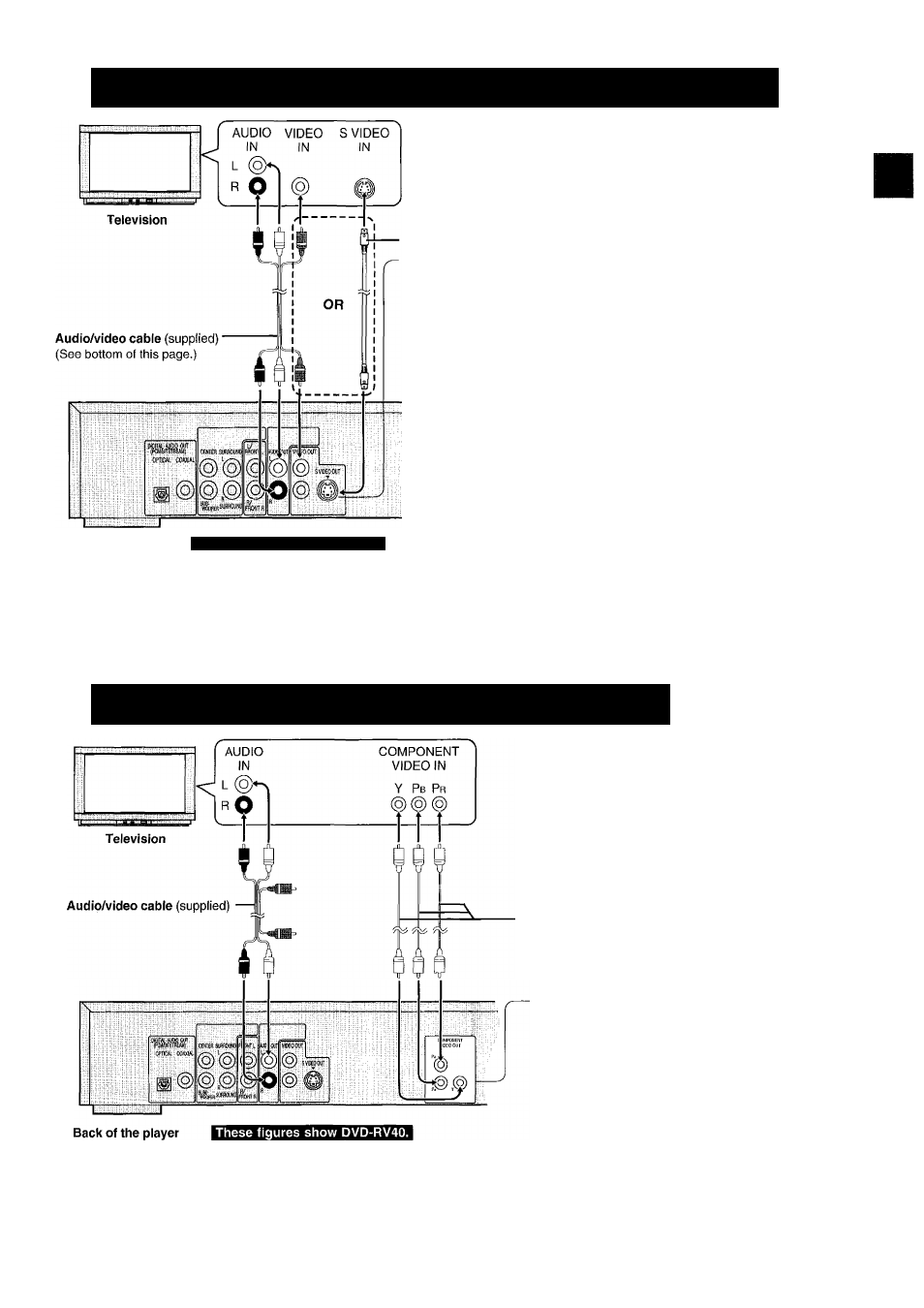

Connecting to a television with video input terminal or S video input terminal
For Australia and N.Z.
S video cable
S video output terminal
The S (separate) video output terminal
achieves a clearer picture than the video
output terminal by separating the colour (C)
and luminance (Y) signals before
transmitting them to the television. (Actual
results depend on the television.)
"(§)
To household mains
socket
{AC 220-240 V, 50 Hz)
AC mains lead
(supplied)
■o
CO
s
0)
O
Back of the player These figures show DVD-RV40.
'DVD-RV20 has 1 VIDEO OUT terminal.
'If your television is monaural, use a stereo-monaural audio cable instead of the supplied audio/video cable. The video part of the cable (yellow)
can still be used if required. Audio cable
To player audio output terminal (red, “R”)
To TV audio input terminal
To player audio output terminal (white, “L”)
Connecting to a television with component video input terminals
For Australia and N.Z.
Video cable
Component video output terminals (Y/P b /P r )
The component video output terminals output the
colour difference signals (P
b /P r ) and luminance signal
(Y) separately in order to achieve high fidelity in
reproducing colours.
•The description of the component video input
terminals depends on the television or monitor
(e.g. Y/P b /P r , Y/B-Y/R-Y, Y/C b /C r and so on).
Connect to terminals of the same colour.
• DVD-RV20 has 1 VIDEO OUT terminal.
• Additional equipment and cables are not supplied.
