Ethernet OEM Module Crestron eServer™

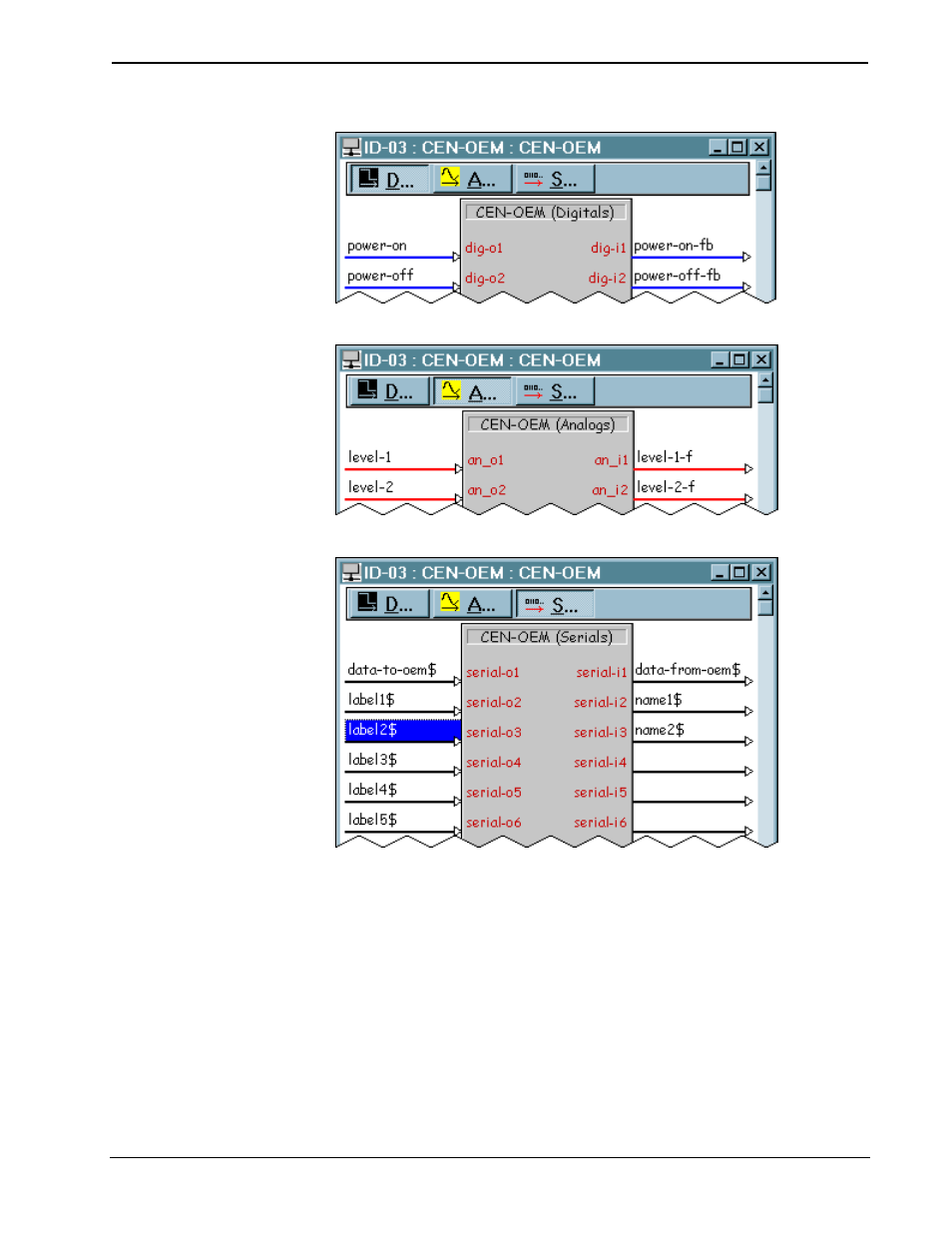

CEN-OEM Digital I/O Definition
CEN-OEM Analog I/O Definition
CEN-OEM Serial I/O Definition
Notice that in the SIMPL+ example, the STRING_INPUT declaration is an array
containing up to 10 strings. Five strings are tied to the symbol definition in SIMPL
Windows.
For this example, when the digital signal (power-off) goes high, the
DIGITAL_INPUT (power_off) goes high in the SIMPL+ module. When power-off
goes low, the DIGITAL_INPUT (power_off) goes low. Notice that the signal names
do NOT have to correspond in any way to the variable names used in the SIMPL+
module. The important thing is the order in which they are defined.
Sometimes, for the sake of organization, it is useful to space the signals out on the
gate. In order to leave gaps in the ranges, the I/O lists can be assigned new starting
join number. The following declarations accomplish this.
22 • Ethernet OEM Module: eServer™ Operations Guide - DOC. 8148
