Crestron eServer™

Ethernet

OEM

Module

CEN-OEM to SIMPL+ Interface

SIMPL Windows CEN-OEM Definition

SIMPL+ Definition

dig-o1 - dig-o999

DIGITAL_INPUT

dig-i1 - dig-i999

DIGITAL_OUTPUT

an_o1 - an_o256

ANALOG_INPUT

an_i1 - an_i256

ANALOG_OUTPUT

serial-o1 - serial o127

STRING_INPUT or BUFFER_INPUT

serial-i1 - serial i127

STRING_OUTPUT

The definitions look somewhat reversed. For example, "dig-o1" maps to a
DIGITAL_INPUT. This is due to the fact that each definition is from the perspective
of the device being programmed. The digital output in SIMPL Windows is really a
DIGITAL_INPUT to the CEN-OEM in SIMPL+.

The join numbers for each I/O list start at join #1. The first DIGITAL_INPUT in
SIMPL+ maps to dig-o1 in SIMPL Windows, the second DIGITAL_INPUT in
SIMPL+ maps to dig-o2 in SIMPL Windows, etc. The first ANALOG_OUTPUT in
SIMPL+ maps to an_i1 in SIMPL Windows, the second ANALOG_OUTPUT in
SIMPL+ maps to an_i2 in SIMPL Windows, etc.

Example Program

For example, consider the illustrative example where the SIMPL+ interface to a
particular device is defined.

SIMPL+ Example

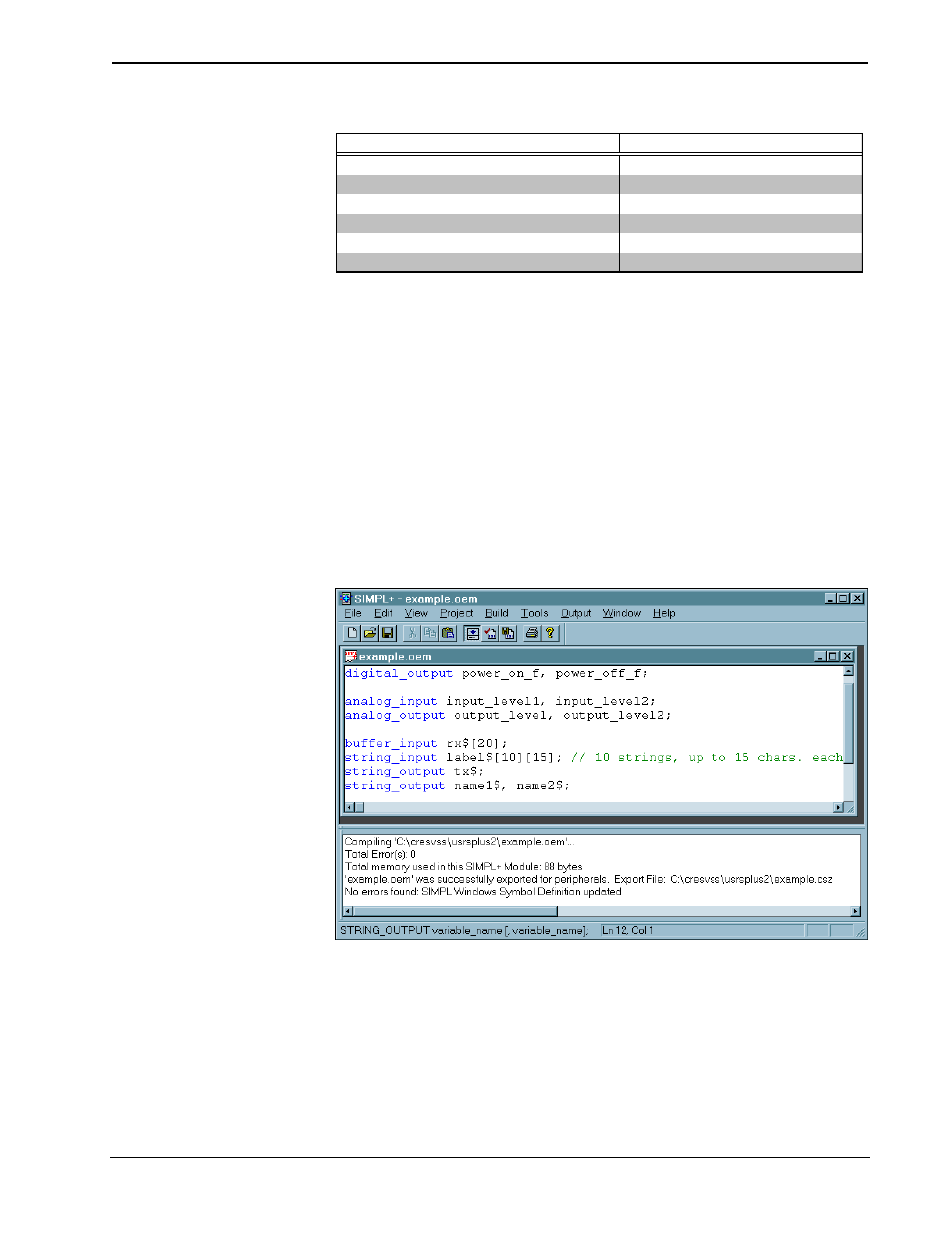

Refer to the following illustrations for the CEN-OEM symbol definition of the
digital, analog, and serial signal lists in Detail View of SIMPL Windows' Program
Manager.
