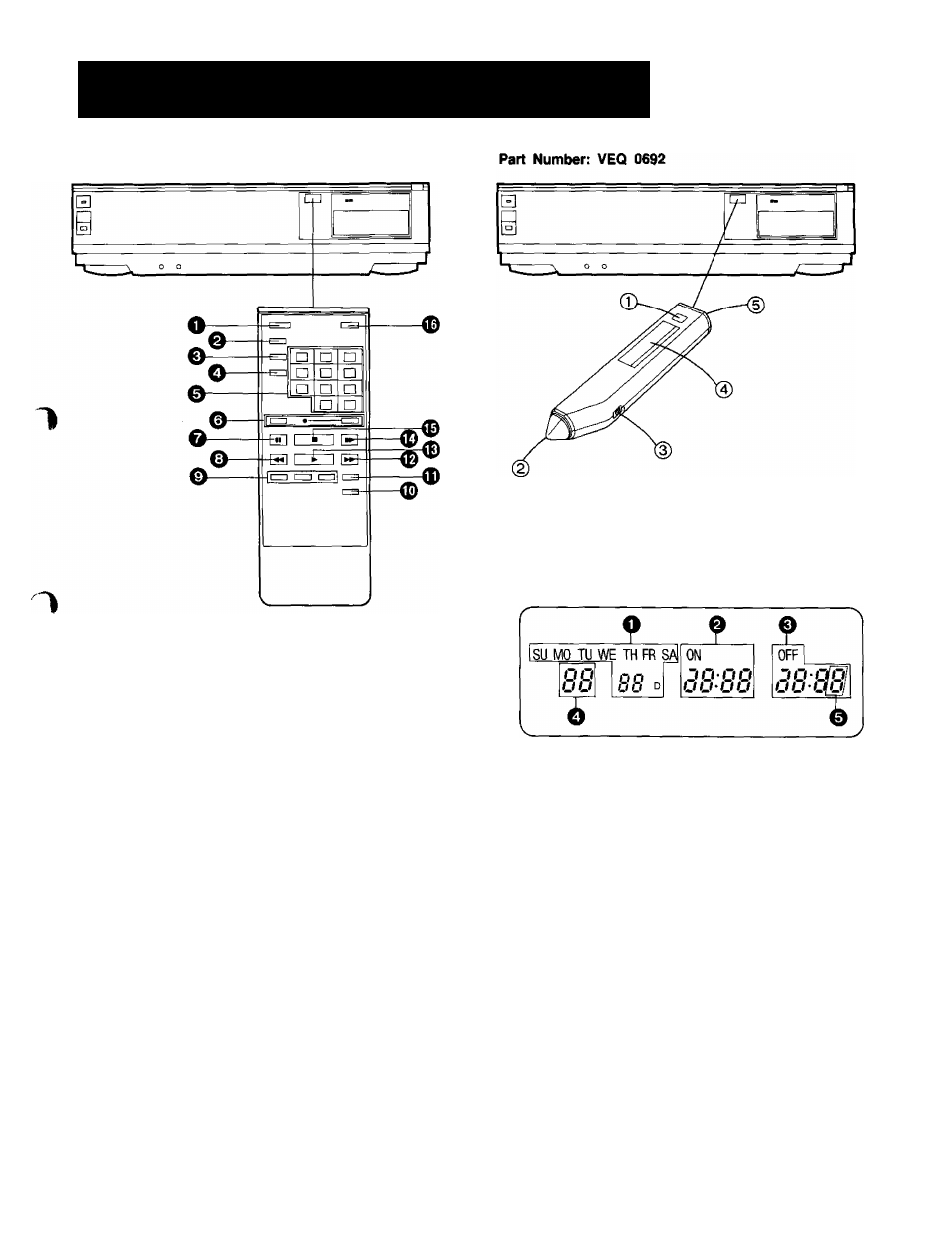

PROGRAMMABLE REMOTE CONTROLLER AND
DIGITAL SCANNER

Part Number: VEQ 0915

VTR On/Off Button

Audio Select Button

Memory/Search Button

O Reset/Index Button

0 Programme Position (Channel) Selector Buttons

press button

select channel

1-9

10
20

11-32

for example 32

[T] — HE] respective channel

If more than 5 seconds pass between the first, second
and third push, the channel will not be changed.

Record Buttons (•)

Both buttons must be depressed together to activate

the Record function.

Pause/Still Button (II)

Rewind ^-^/Review @ Button

Slow Buttons

Intro Scan Button

Double Speed Playback Button (X2)

Fast Forward b^^/Cue @ Button

Play Button (b-)

Still Advance Button (lb)

Stop Button (■)

(i) Transmit Button

Bar Code Reading Section

@ Digital Scanner On/Off Switch

® Bar Code Reader Display

0 Date Display

0 Start Time Display

0 End Time Display

0 Channel Display

Check Indicator

(5) Transmitting Section

How to Operate the Digital Scanner

Set the Digital Scanner On/Off Switch to “ON”.

•If no operation is performed for more than 25 seconds, the

scanner will automatically switch over to the power-saving
standby condition and the lamp will go off. (In this case, if

bar codes have already been read but not yet transmitted

to the VTR, the data will be cancelled.)

•When the Digital Scanner On/Off Switch is set to "ON” but

the lamp is not lit, set the switch to “OFF” and then to

“ON” again.
