12 CHECK/PROG (Refer to page 14.)
To select a timer programme number.
“P1,P2, P3...or P8”islit.
To display details of preset timer recording in the timer
standby mode.
13 V a /- +
To select the required programme position (TV
station).
To set the clock and timer recording.
14 NEXT
To proceed to the next item during setting procedures.
15 SLEEP/SHIFT
To set the time to turn off the VTR automatically. (Page 11)
To blank unoccupied programme positions. (Page 7)
16 TIMERREC(Refertopage 14.)
To turn the timer recording function on and off.
0 is lit or not lit.
The VTR can only be operated manually when the
timer recording function is off.
17 REC (Refer to page 12.)
To start a recording.
18 AC IN-
To connect to the mains power supply.
19 RFOUT
To connect to the aerial terminal on a TV set.
20 Video Playback Channel Selector
To select the video playback channel,
21 AUDIO OUT
To connect an audio cable to a TV or another video
recorder.
22 VIDEO OUT
To connect a video cable to a TV or another video
recorder,
23 RFIN
To connect to the external aerial.
24 AUDIO IN
To connect an audio cable to a video camera or
another video recorder.
25 VIDEO IN
To connect a video cable to a video camera or another
video recorder.
26 VTR/TV
To select the VTR mode or TV mode.
27 PAUSE/STILL
During playback: Still picture.
During recording: To interrupt recording.
28 ZERO STOP (Refer to page 11.)
For the ZERO STOP function.
29 PAL/MESECAM
This function has been disabled on Australian and New
Zealand models. It is available only on models not
intended for use in Australia and New Zealand.
Consequently, absence of function or effect of this
button is NOT a malfunction or defect.
30 DISPLAY
To change the indication on the VTR Display.
Clock-i->Counter
31 RESET
To reset the tape counter (elapsed time) to “0:00.00”.
•The tape counter is automatically reset to “0:00.00”
when a video cassette is inserted.
32 INDEX (Refer to page 16.)
For the index search function.
33 TRACKING/V-LOCK
For manual tracking adjustment;
The + and - buttons are used to adjust the tracking
when, for example, noise bars on the picture are better
removed manually than by the automatic digital
tracking control. After making a manual adjustment,
press both buttons together to return to automatic
digital tracking control.
For vertical locking adjustment;
Use the + and - buttons to minimize any vertical jitter
during still-picture playback.
34 STILL ADV
To advance a stilt picture during still playback.
35 Programme Position Selector Buttons
To select the programme positions.
36 Infra-red Transmitter
Power source for the remote controller
The remote controller is powered by 2 “UM3”, “AA” or “R6’
size batteries. The life of the batteries is about one year,
although this depends on the frequency of use.
Precautions for battery replacement
•Load new batteries with polarity {-i- and -) aligned
correctly.
•If you do not intend to use the remote for a long time,
remove the batteries and store them in a cool and dry
place.
•Do not use an old and a new battery together, and never
use an alkaline battery with a manganese battery.

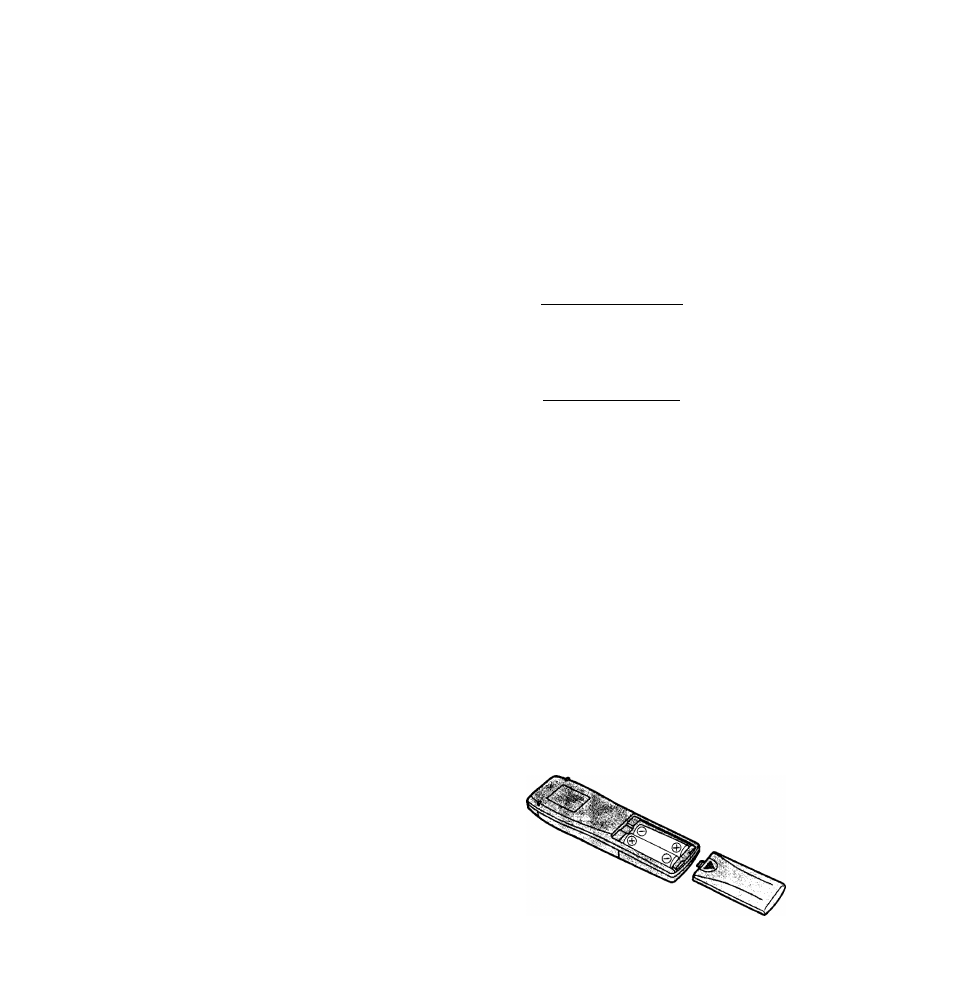

Loading the batteries
