Tuning the TV into your VTR

The VTR supplies a signal to the TV set via the RF coaxial

cable.

For Australia:

on channel 0 or 1

For New Zealand: on channel 2 or 3

It is possible to view the video picture on your TV in the

same way that you watch TV broadcasts.

If you have connected the VTR to the TV through the
video and audio input sockets then you do not need to
follow the procedure mentioned below. Instead, simply select AV mode on the television.

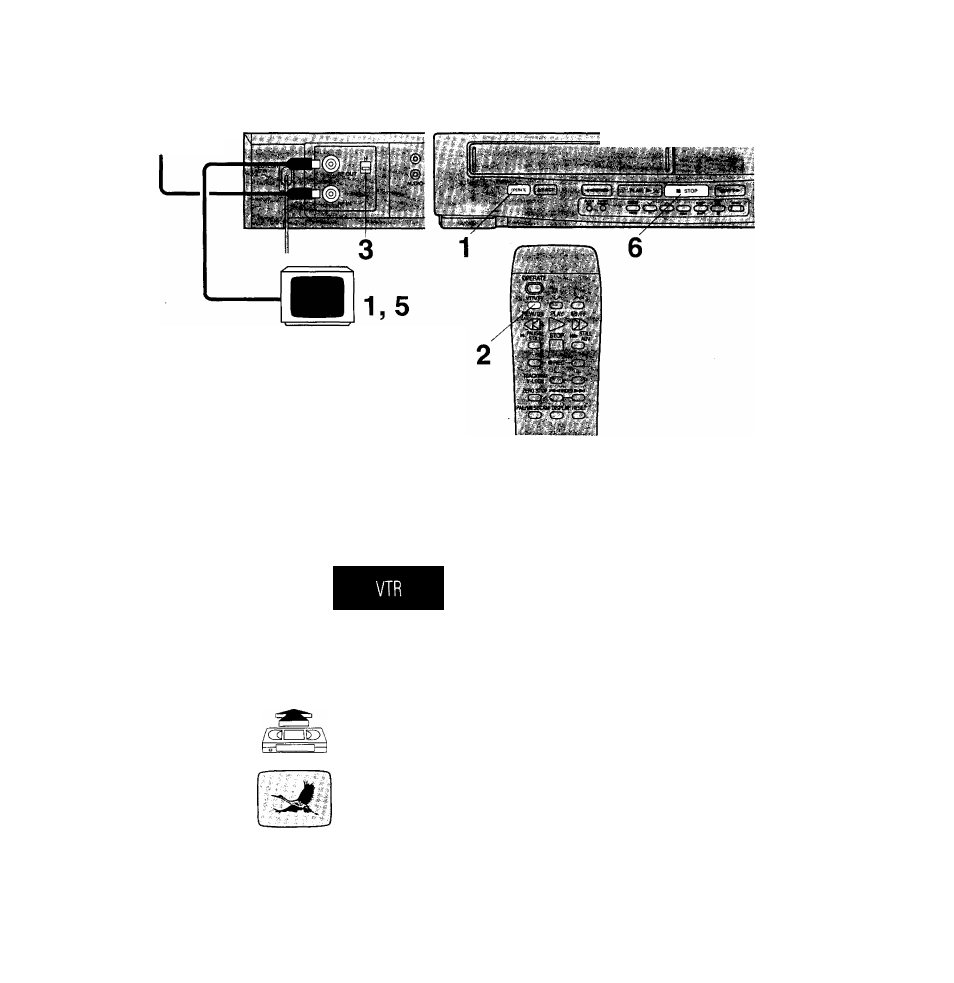

Operations

Display Symbols

OPERATE

Turn on the TV and VTR.

VTR/rV

Select the VTR mode.

Select the video playback channel which is
not occupied with any TV station.

NV-SD1 A; L (channel 0) or H (channel 1)

NV-SD1EA: L (channel 2) or H (channel 3)

Insert a recorded cassette tape.

•To start the playback, see page 10.

Select a programme number on the TV set

which you wish to use as the video viewing

channel. Then tune in the TV to the picture
from the cassette tape currently playing.

• NV-SD1Aonly

in some areas channel 0 may be used by local TV station.
In this case switch to channel 1.

Stop the playback.

STOP
