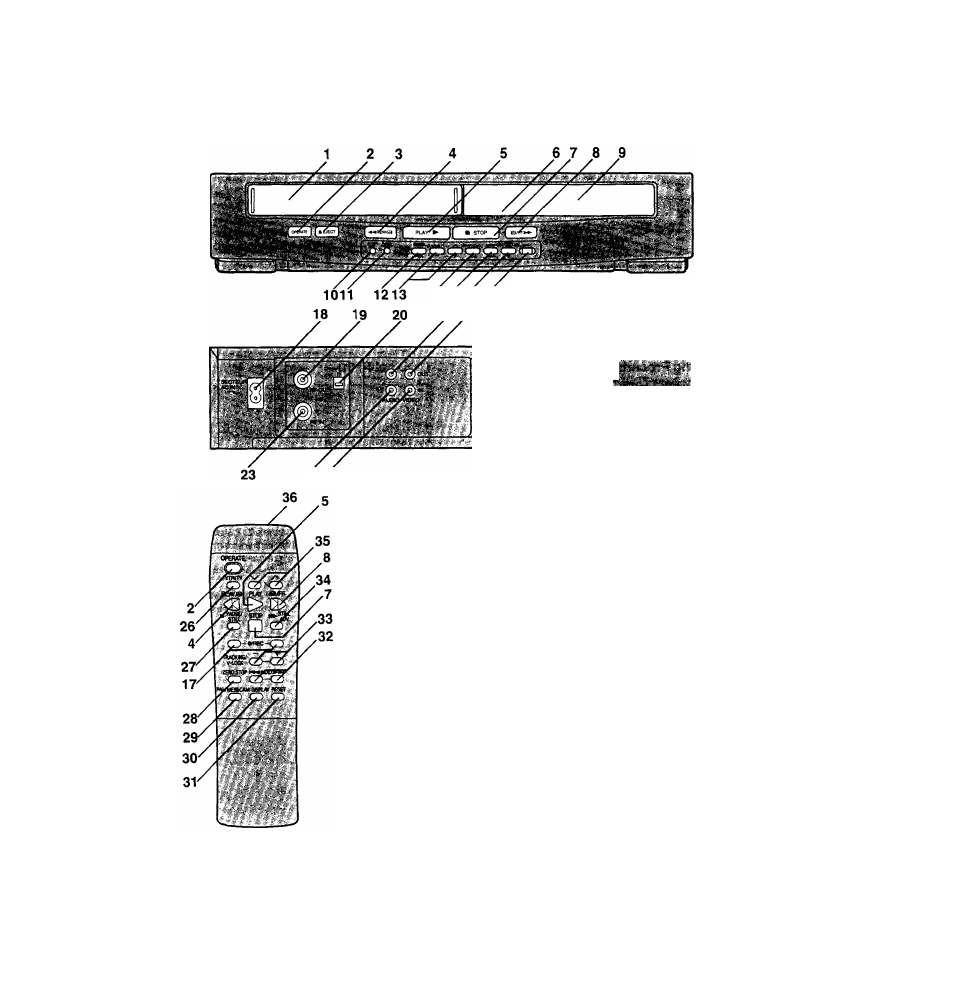

Controls and Connection Sockets
»1
141516 17
21 22
■''■ii,,V- 'rj'. *
i ; f *■
vV-5'. ;V'-
24 25
This gives a detailed explanation of the function of each
button, svi/itch and connection socket.
1 Cassette Compartment
Insert a video cassette here.
2 OPERATE
To turn the VTR on and off.
3 EJECT
To eject a video cassette.
4 REW (REWIND)
In the stop mode:
To rewind the tape.
In the playback mode: To search backward.
In the rewind mode:
To obtain high speed picture.
“<]
0
”
is lit.
5 PLAY
To start playback. ‘‘t>” is lit.
6 Infra-red Remote Control Receiver Window
7 STOP
To stop any playback or recording.
8 FF (FAST FORWARD)
In the stop mode: To fast forward the tape.
In the playback mode:
To search forward.
In the fast forward mode:
To obtain high speed picture.
“[»” is lit.
9 Display
10 CLOCK SET
(Refer to page 5.)
To set the time.
11
TUNER PRESET {Refer to page 6.)
To initiate TV station settings for the tuner.
