Chassis Device View
Chassis Device Icon
Chassis Device Icon
This icon is a logical representation of the physical device and its front panel
interfaces. This section describes the information available from the Chassis
Device icon.

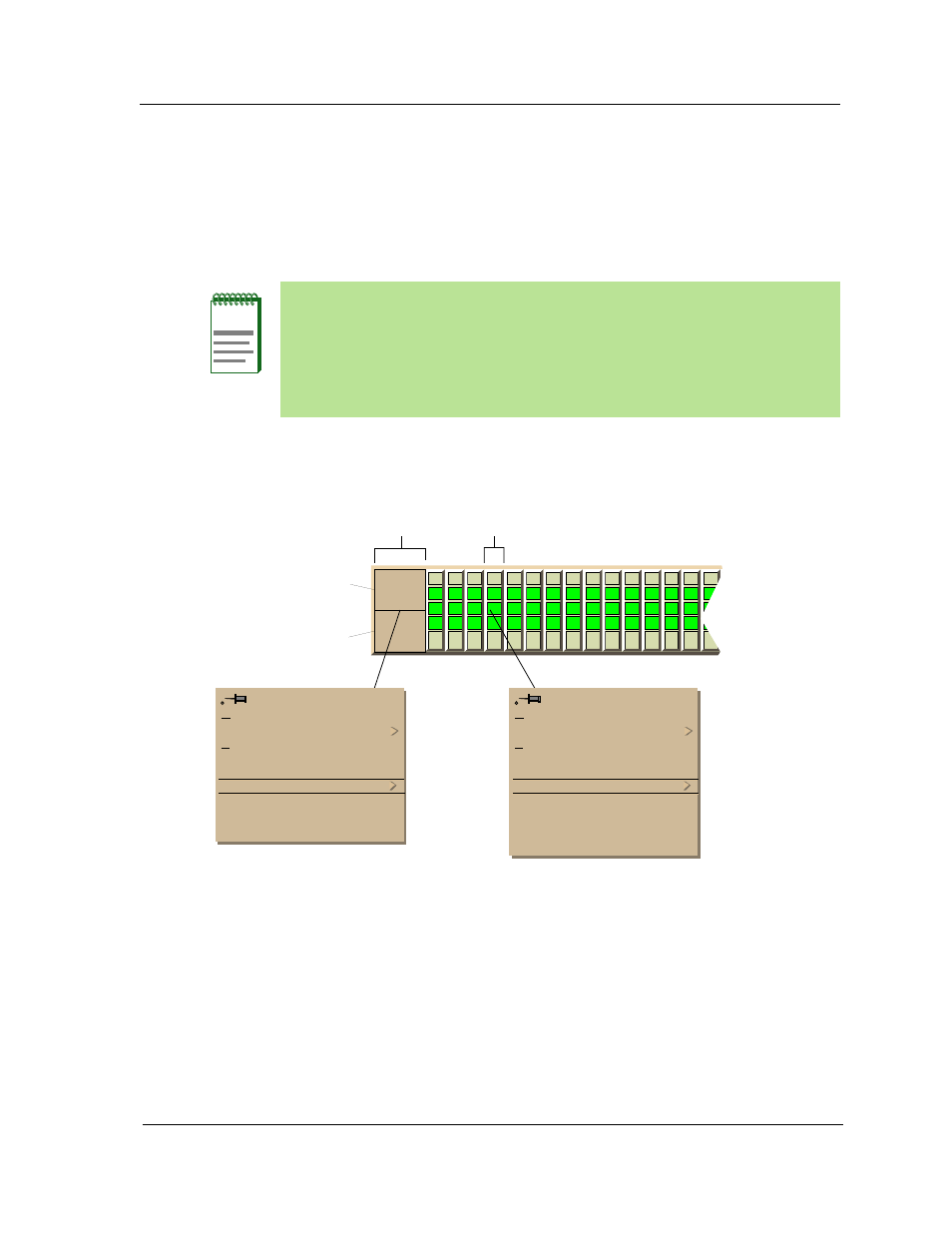

Figure 2-2 shows an example of the Chassis Device icon for 3Com
PortSwitch Hubs.
Figure 2-2. Chassis Device Icon
NOTES
The callouts displayed in this illustration identify the label name and, when
available, the view to which it provides double-click access. For example:
Module Number/Module Notes View displays the device model number and
provides double-click access to the Module Notes view.
The menus displayed in the illustration are the Icon Subviews menus for
that label.
1
0
Oper
Enab
Note
2
0
Oper
Enab
Note
3
0
Oper
Enab
Note
4
0
Oper
Enab
Note
5
0
Oper
Enab
Note
6
0
Oper
Enab
Note
7
0
Oper
Enab
Note
8
0
Oper
Enab
Note
9
0
Oper
Enab
Note
10
0
Oper
Enab
Note
11
0
Oper
Enab
Note
12
0
Oper
Enab
Note
13
0
Oper
Enab
Note
14
0
Oper
Enab
Note
15
0
Oper
Enab
Note
16
0
Oper
Enab
Note
1
PortSw
Module Number Label /
Device Type Label
Module
Identification
Label
Close Alt+F4
Navigate
Alarms
Performance
Notes...
Utilities
Module Notes
Module Configuration
Module Performance
Module Notes View
Port
Identification
Label
Close Alt+F4
Navigate
Alarms
Performance
Notes...
Utilities
Port Notes
Port Configuration
Port Detail
Port Performance
