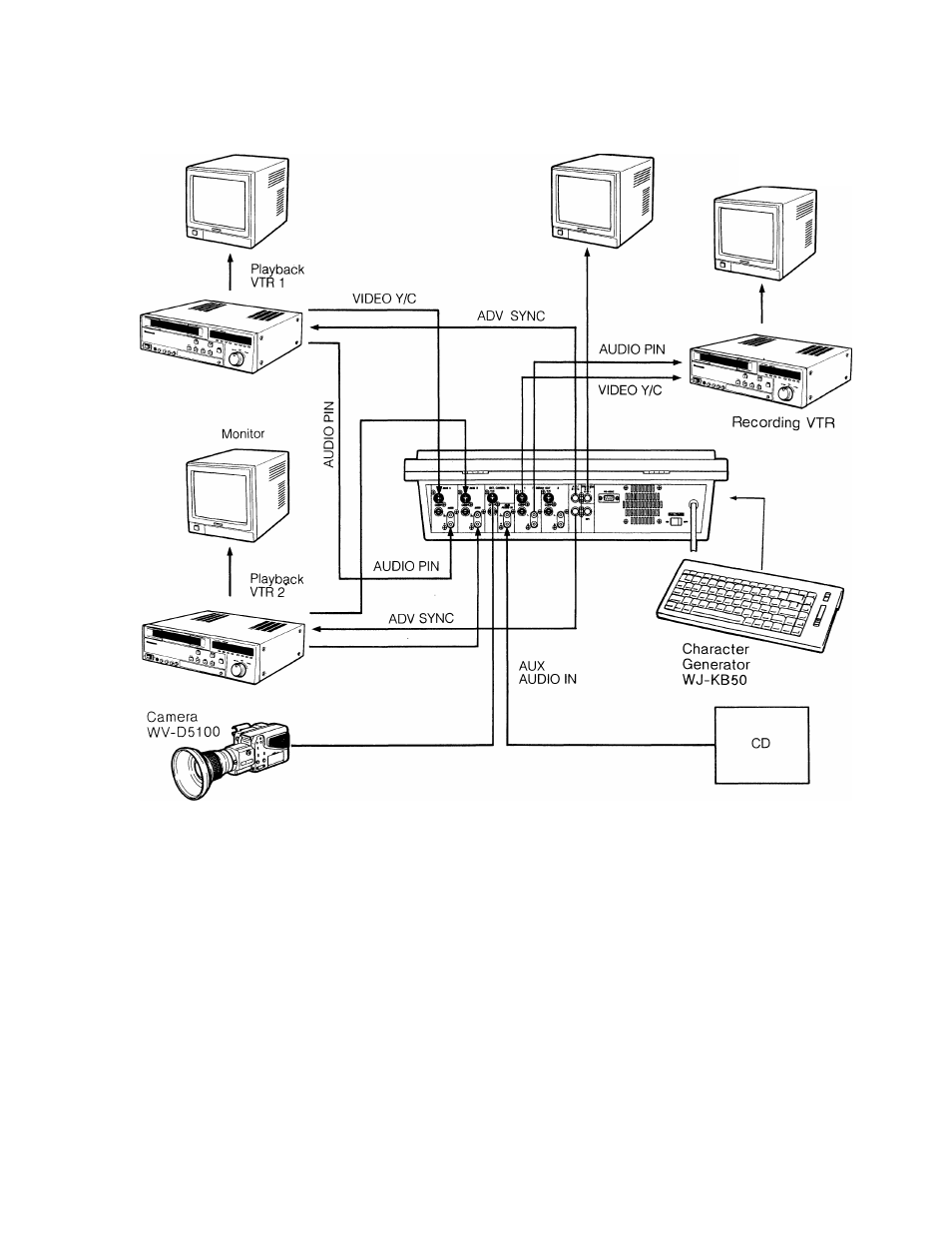

SYSTEM CONNECTION

Monitor

Preview
Monitor

Program
Monitor

The following models (or equivalents) are recommended for
this system. The S-video signal and stereo audio signal are

also recommended to obtain quality edited outputs.

Digital AV Mixer

WJ-MX30

Character Generator

WJ-KB50

External Camera

WV-D5100

Playback VTR

AG-7150

Recording VTR

AG-7350

Monitor TV

1. Connect coaxial cables between the Advance Sync

Output Connectors (93) on this unit and the Advance
Sync input on both playback VTR 1 and VTR 2.

2. Connect audio cables between the Source 1 Audio

Input Jack (80) / Source 2 Audio Input Jack (83) on

this unit and Audio Output Connector / Audio Input
Connector on the playback VTR-1 / VTR-2 / Recording
VTR, respectively.

3. Connect S-video cables between the Source 1 Y/C

Input Connector (78) / Program Out-1 Y/C Output
Connector (87) on this unit and the S-video Out /
S-video In Connectors on the playback VTR-1 / VTR-2/
Recording VTR, respectively.

4. Connect an S-video cable from the S-video output

connector of the camera to the External Y/C Input
Connector (84) on this unit.

5. Connect a coaxial cable between the Preview Output

Connector (95) on this unit and the Video Input
Connector on the Monitor TV.
