Installation Guide
■ Precautions
If possible, this equipment should be professionally installed. In case of difficulty, please consult with your
nearest professional installer.
1. This unit only operates in a 12-volt DC negative ground system.
2. Before performing installation and wiring, remove the negative (-) terminal of the battery. (See Note below.)
Note!
Do not disconnect the negative battery terminal in vehicles equipped with trip or navigational computers.
All electronic memory settings previously registered will be lost. Take extra care to avoid causing short-
circuits when installing the unit.
3. Follow the wiring connection diagram carefully to avoid causing damage to the unit.
4. Insulate all exposed wires to prevent short-circuits.
5. Secure all loose wires after installing the unit.
6. Please carefully read the operating and installation instructions of any equipment connected to this unit.

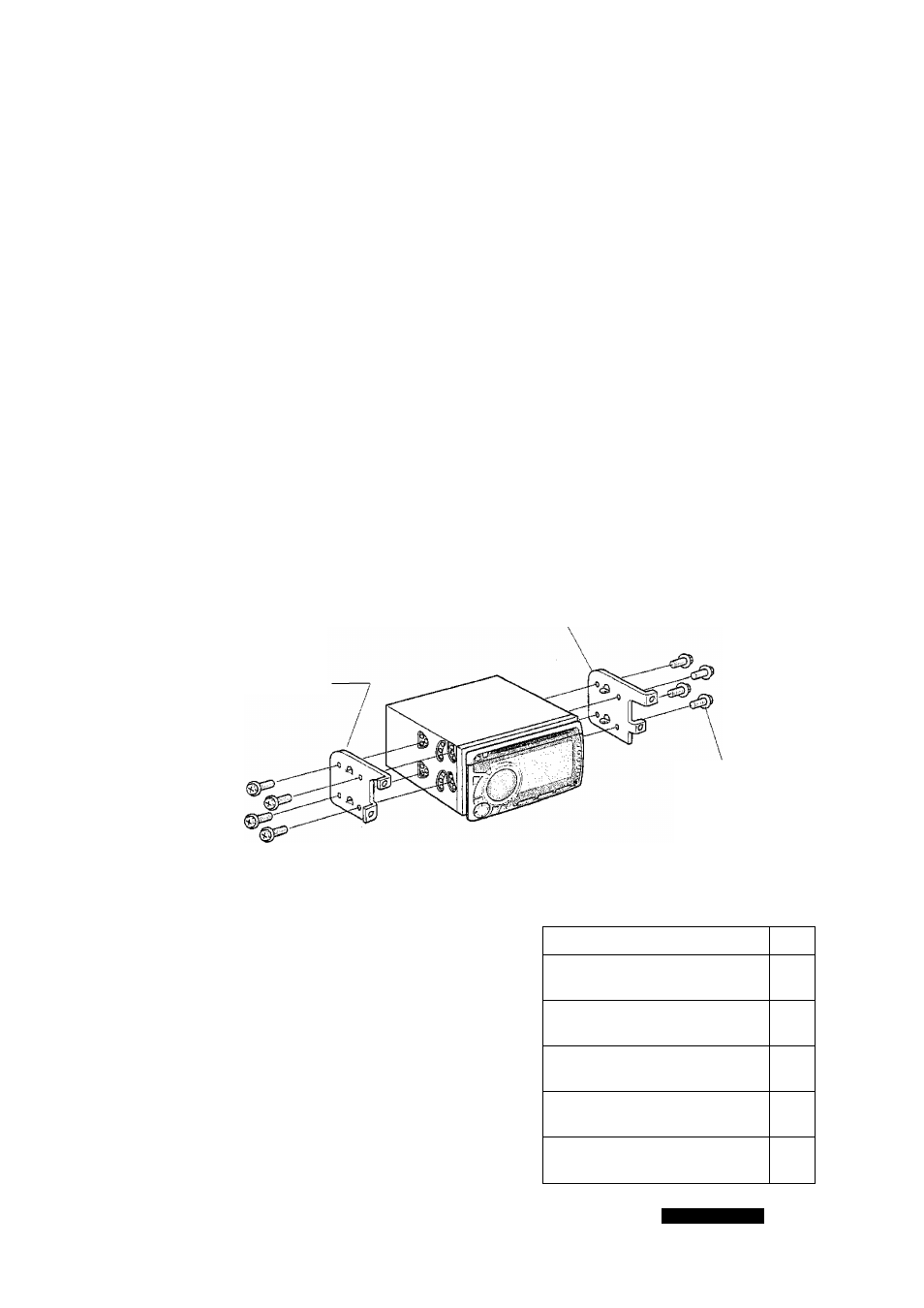

Transportation bracket removal
Be sure to remove the bracket for transportations before use (installation).
"Use screws (M5 x 8 mm) with washers for installation.
Be careful not to lose any of these parts.
Bracket for
Bracket for
Transportation
r—eracKetTor
\ Transportation
Screw with washer
(M5
X 8 mm) x4
Notel
• The unit is not TAP finished on the right
side although there is a screw holes in it.
Please only use screws provided to mount
the unit.
• To tighten the screws, press its head down
straight forward.
Installation Hardware
Item Qty
Screw with washer
(M5 X 8mm)
4
Flat-head small screw
(M5 X 8mm)
8
Power Connector 1
Remote Control 1
Lithium Battery (CR2025) 1
