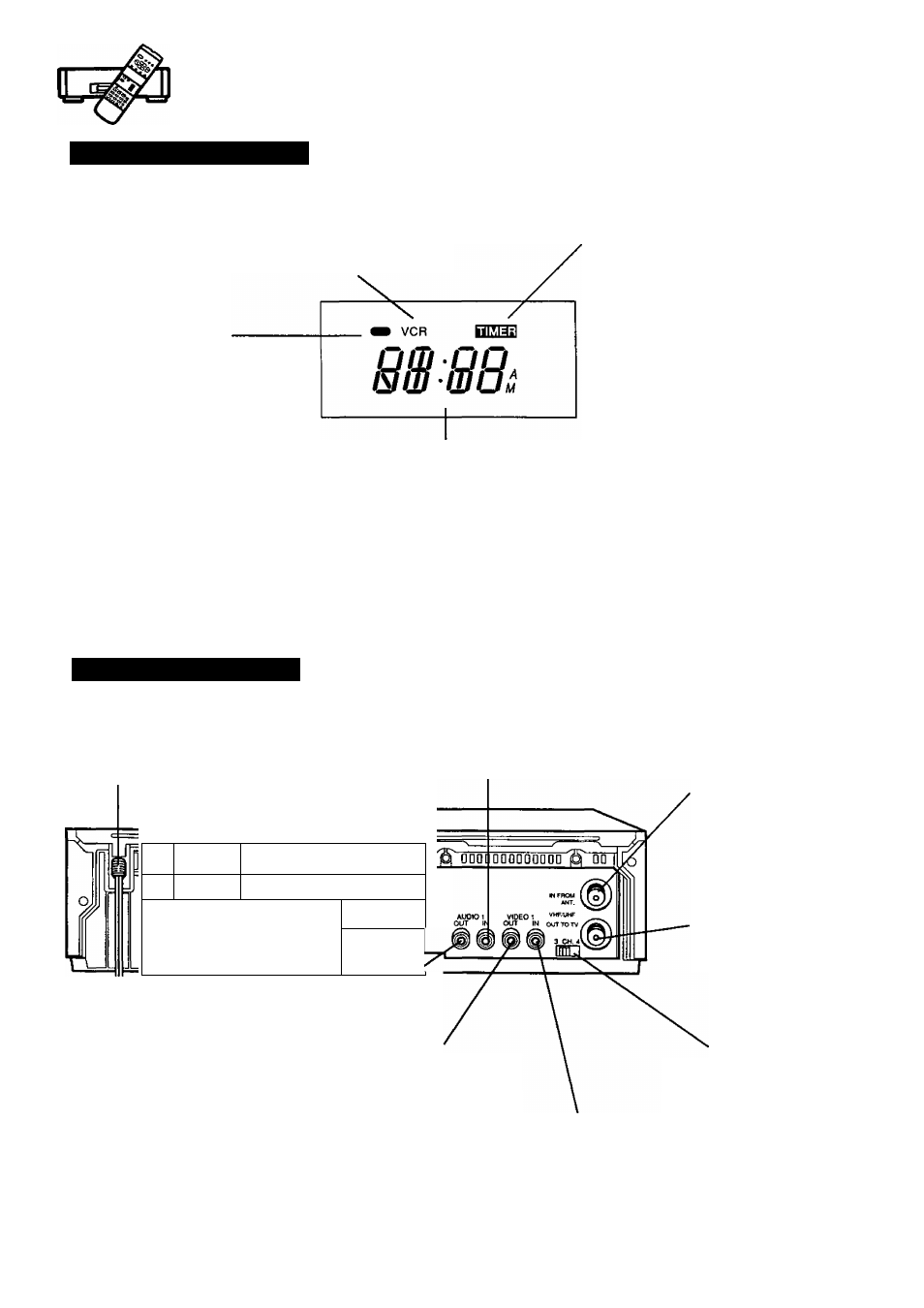

Index of Controls
Multi Function Display
VCR Indicator
Appears when the VCR/TV
selector is set to VCR.
Power Indicator
This indicator lights
when power is turned on.
Timer Indicator
This indicator lights when the VCR
is set for a Timer Recording, or if a
length is set for normal recording.
It flashes when a Timer Recording
has been set, but a tape has not
been inserted into the VCR.
Clock/Status/Channel Display
Displays the current time.
Briefly displays VCR status when function button is pressed.
Also, briefly displays the channel number selected, “L" when
channel button is pressed or select a line input.
Rear View of the VCR
AC Power Plug
When plugged into an AC outlet,
the VCR consumes 6W of
electric power in OFF condition.
Audio Input Connector
See page 18.
[A - ID D D D p ^:
d
[Ì]
d d
[ÌFH
- —
VHF/UHF Antenna
Input Terminal
See pages 6~9.
VHF/UHF Antenna
Output Terminal
See pages 6-9.
Video Output Connector
See page 18.
Channel 3/4 Switch
See pages 6,10.
Audio Output Connector
See page 18.
Video Input Connector
See page 18.
27
