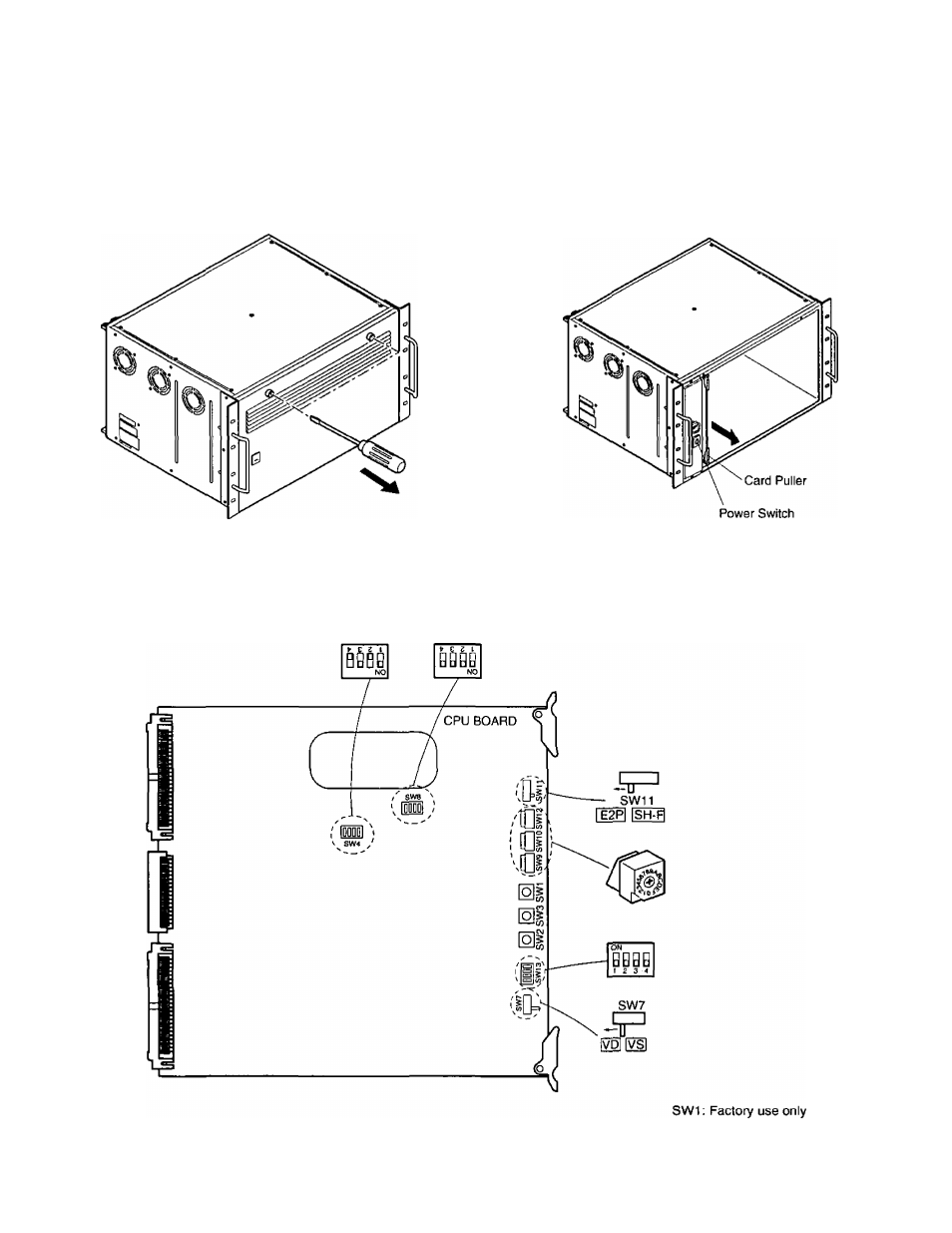

■ Board Setting

The following settings should be made by qualified service personnel or system installers.

1. Remove the front panel by removing two screws on

the panel.

2. Extract the Local CPU board by raising up the card

puller.

— Caution --------------------------------------------------------------------------------------------------------------------------

Hold this board only by its edges. Otherwise components on the board may be damaged by static electricity.

SW3: LCPU Reset Switch

SW2: Cord Cage Reset Switch

-4.
