46 Leica mojoRTK, mojoRTK Base Station Operation

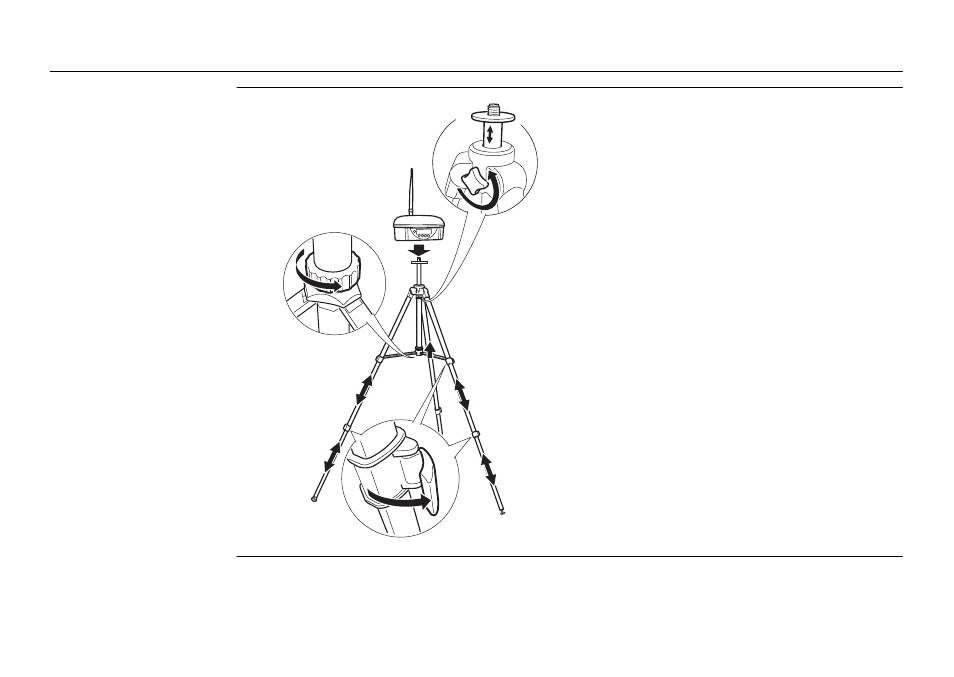

Base station setup 1. Pull open the tripod lever locks, two
per leg, and extend the tripod legs
to your needs. The locks can hold
the leg at any length.
2. Loosen the hand screw at the top
of the tripod and extend the top
section, set the height to the
desired level, and lock down by
tightening the hand screw.
3. Lock the legs in the desired position
using the lock screw located on the
center support tube.
4. Screw the base station on top of
the tripod.
mojoRTK_009
2
1
4 3
