EdgeAccess Universal Chassis System
Model 9135 10/100/1000 1-1
Chapter 1
Overview
The Canoga Perkins EdgeAccess 9135 is an SNMP Managed, two-port Ethernet Switch that provides
Managers and Network Analysts with a modular-managed 10/100 or 1000 Mbps LAN platform. See
Figure 1. The 9135 switch supports two 10, 100, or 1000 Mbps interface modules. The hot-
swappable interface modules provide these options:
• 850 nm multimode, 1310 nm multimode, 1310 nm single mode, or 1550 nm single mode
• ST, SC, FC/PC, or duplex SC connectors
The 9135 supports IEEE 802.1d and 802.1Q standards.

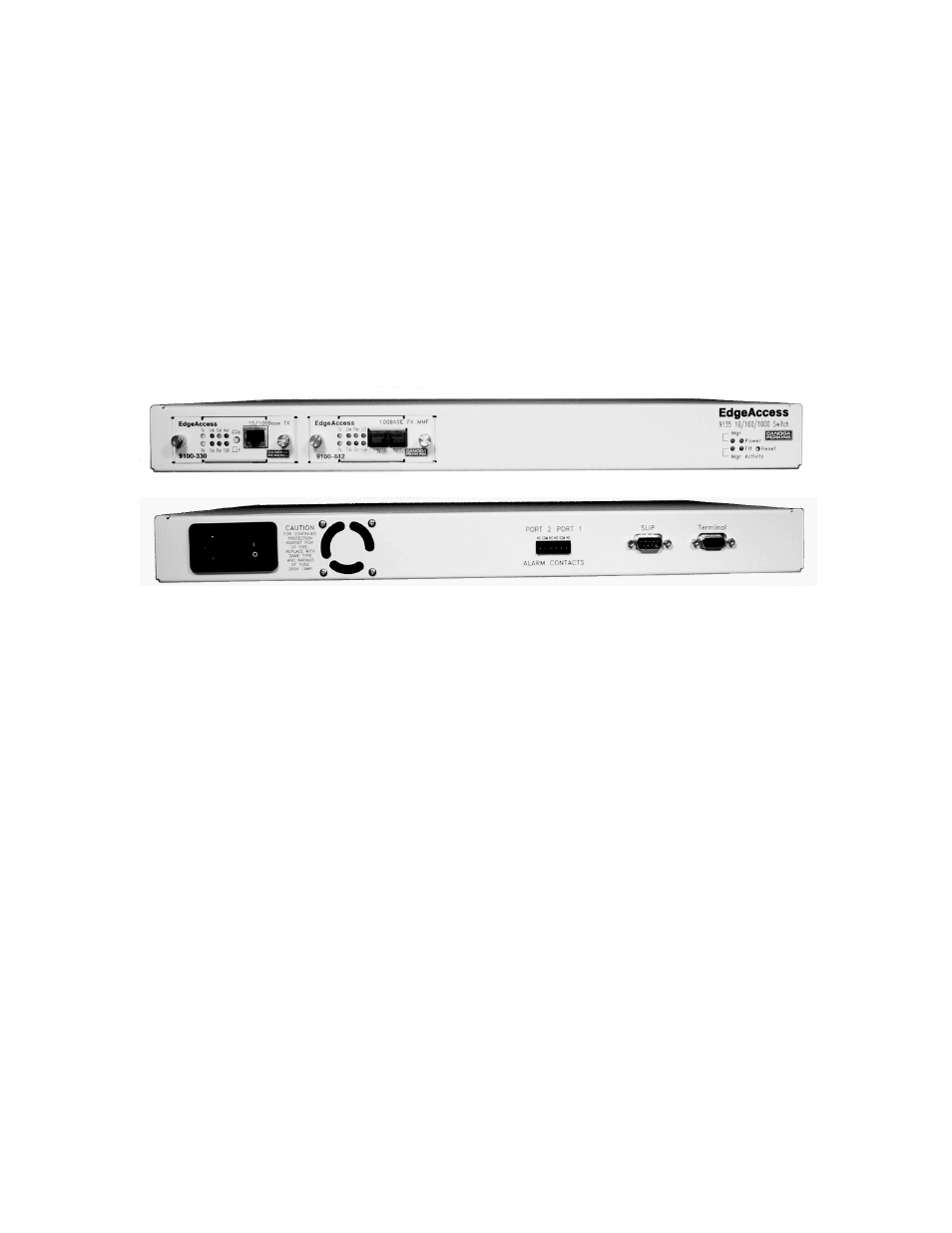

Figure 1. 9135 SNMP Managed Ethernet Switch
1.1 Data Switch Features
The 9135 includes these features for the data switch:
• Store and forward operation
• Full- and half-duplex data transfer
• Non-blocking switch
• Full wire speed
• Spanning tree algorithm
• Address table supports 1,000 entries
• Multiple VLAN tagged frames
