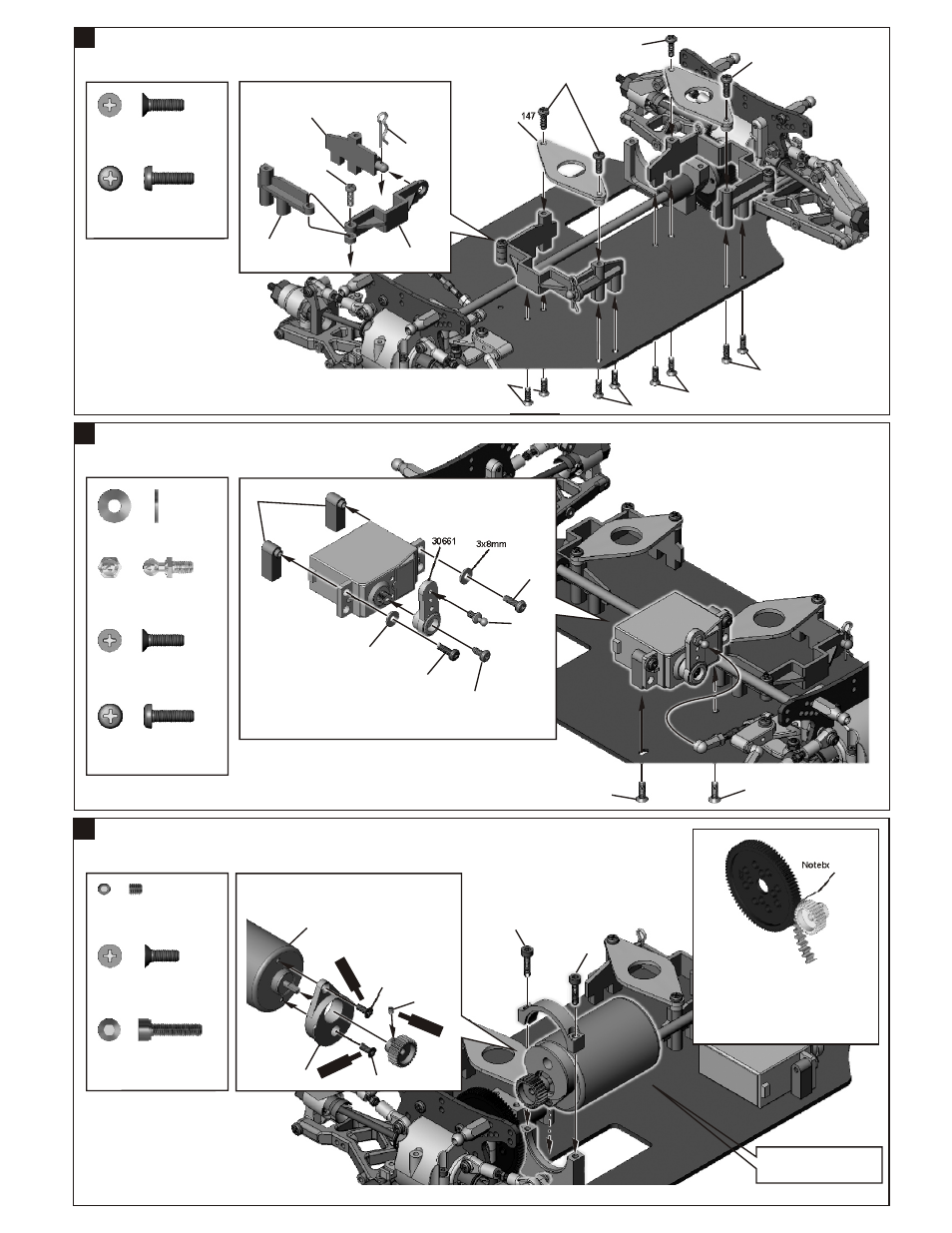

ASSEMBLY OF THE BATTERY HOLDER

ASSEMBLY OF THE STEERING SERVO ONTO CHASSIS

MOTOR INSTALL

94017
3x8mm
Flat Head Screw

.....x2

94033
3x3mm
Set Screw

.....x1

94038
3x12mm
Cap Screw

.....x2

3x8mm

3x3mm

37136

37360

4mm Ball&Socket

.....x1

94003
3x10mm
Screw

.....x2

94040
3x8mm Washer

.....x2

94019
3x10mm
Flat Head Screw

.....x8

37147

37410

37580

3x10mm

3x12mm

* Use the screw
provided with
your servo .

E-56

30661

37360

3x8mm

3x10mm

540 Motor

3x8mm

*Please assembly the Motor and Pinion Gear

before use.

*Please assemble two Battery Holder before use.

*Please assemble the Steering
Servo and Servo Mount before
use.

3x12mm

Scr

ent

cre

94003
3x10mm
Screw

.....x6

Notebook paper

*Use notebook paper to set gear
backlash between spur gear and
motor gear; apply pressure while
tightening the motor and then pull
out the paper.
*If the space is not correct, the spur
gear will be damaged.

94019
3x10mm
Flat Head Screw

.....x2

*Depending on the kit, the
electric motor may not
included.
