27

28

29

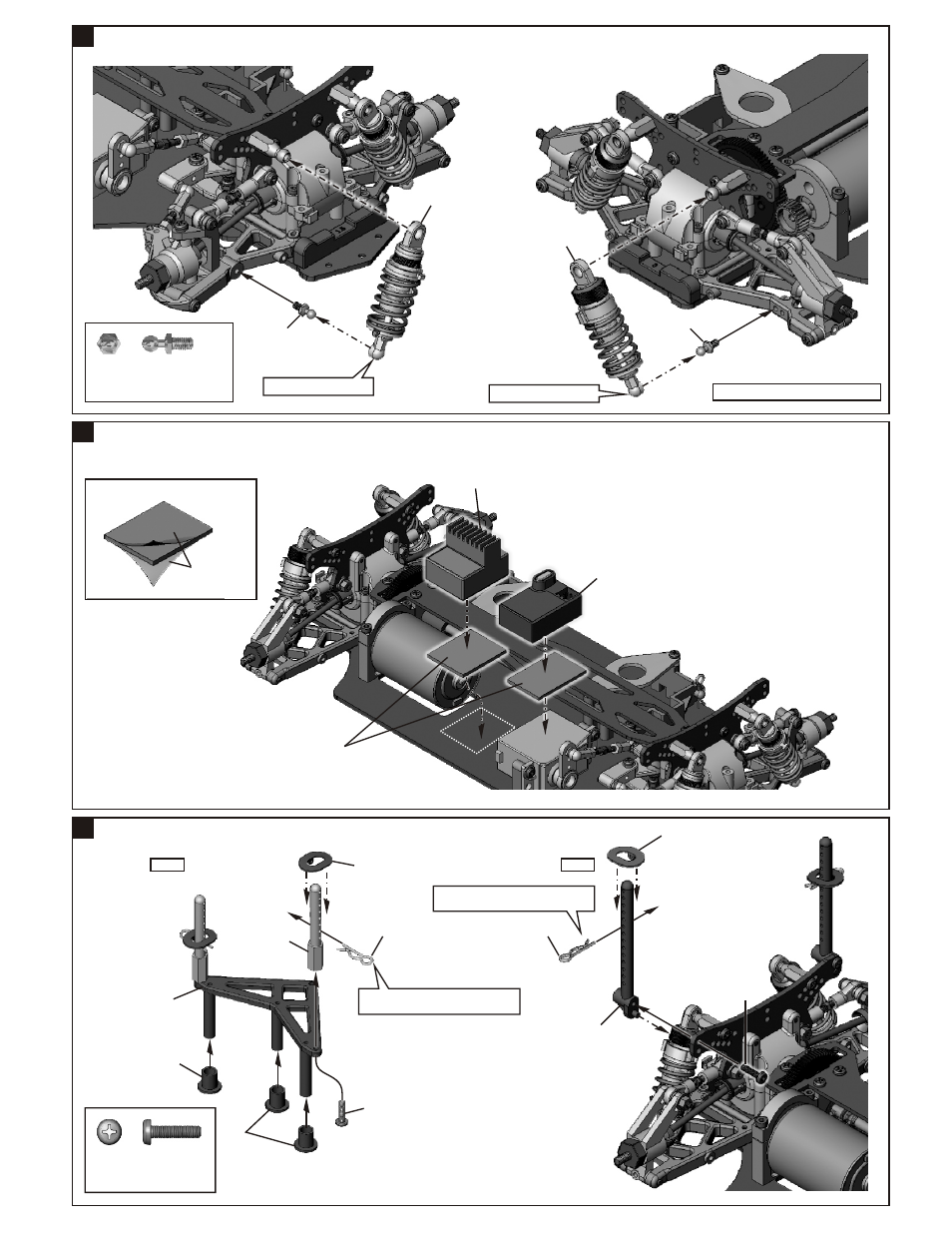

ASSEMBLY OF THE SHOCK INTO FRONT AND REAR SHOCK STAY

ASSEMBLY OF THE ELECTRIC SPEED CONTROLLER AND RECEIVER

ASSEMBLY OF THE FRONT AND REAR BODY POST

3x12 mm

38291

38291

39320
(Front body post)

37360

37360

4mm Ball&Socket

.....x4

Electric Speed Controller

Receiver

*Use two-sided adhesive tapes.

37360

Front shock

Rear shock

*Snap ball end into 37360.

38291

39320

37410

37410

Assemble both right and left sides.

39320

39320
(Rear body post)

3x12mm
Screw

.....x4

*Snap ball end into 37360.

Step 1

Step 2

3x12 mm

* Insert body clips into body holder
to the desired height.

* Insert body clips into body holder
to the desired height.

Tear off the
paper before use.

Doubleside
Tape
