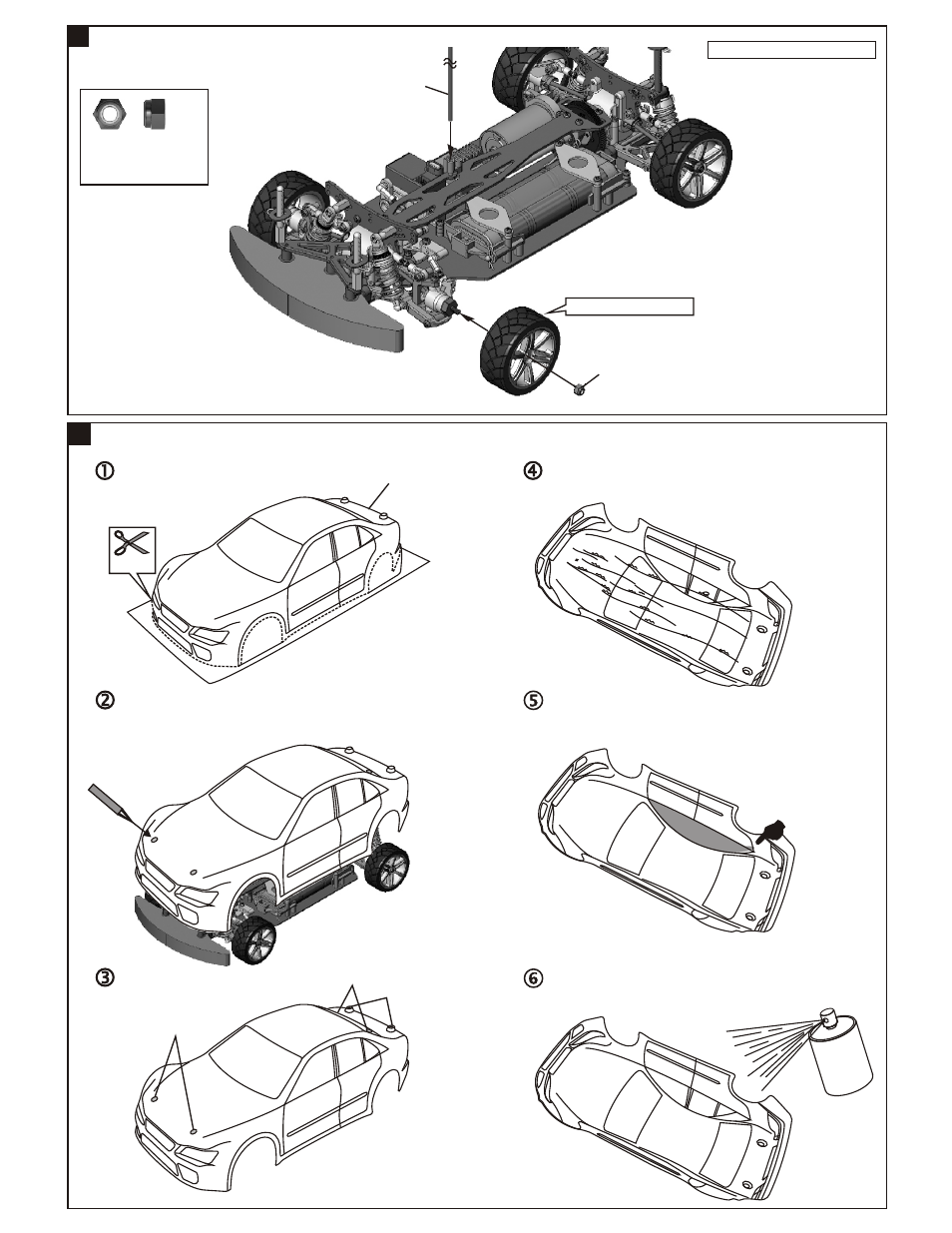

33 ASSEMBLY OF THE TIRE ONTO FRONT KNUCKLE AND REAR HUB
Assemble both right and left sides.
34 ASSEMBLY OF THE BODY AND PAINTING (BODY NOT INCLUDED)
Spray Paint
Paint the body with
polycarbonate spray paints.
Before cutting and making holes on the body,
put the unpainted body on the chassis
to confirm the mounting position and
location for holes and cutouts.
Mask the windows from
the inside with masking tape.
Making two holes on the front and
two holes on the rear for body posts.
Make a 3mm hole for rear wing on
each side.
6mm
6mm
Cut Out
Cut out the body as shown. *Use dishwashing liquid to
remove any dirt and oil from inside.
Body( ) Not included
10806 Body Reamer
(Not included)
94042
4mm
Nylon Nut
.....x4
4mm
*Tire and wheel assembly.
30560
3mm
