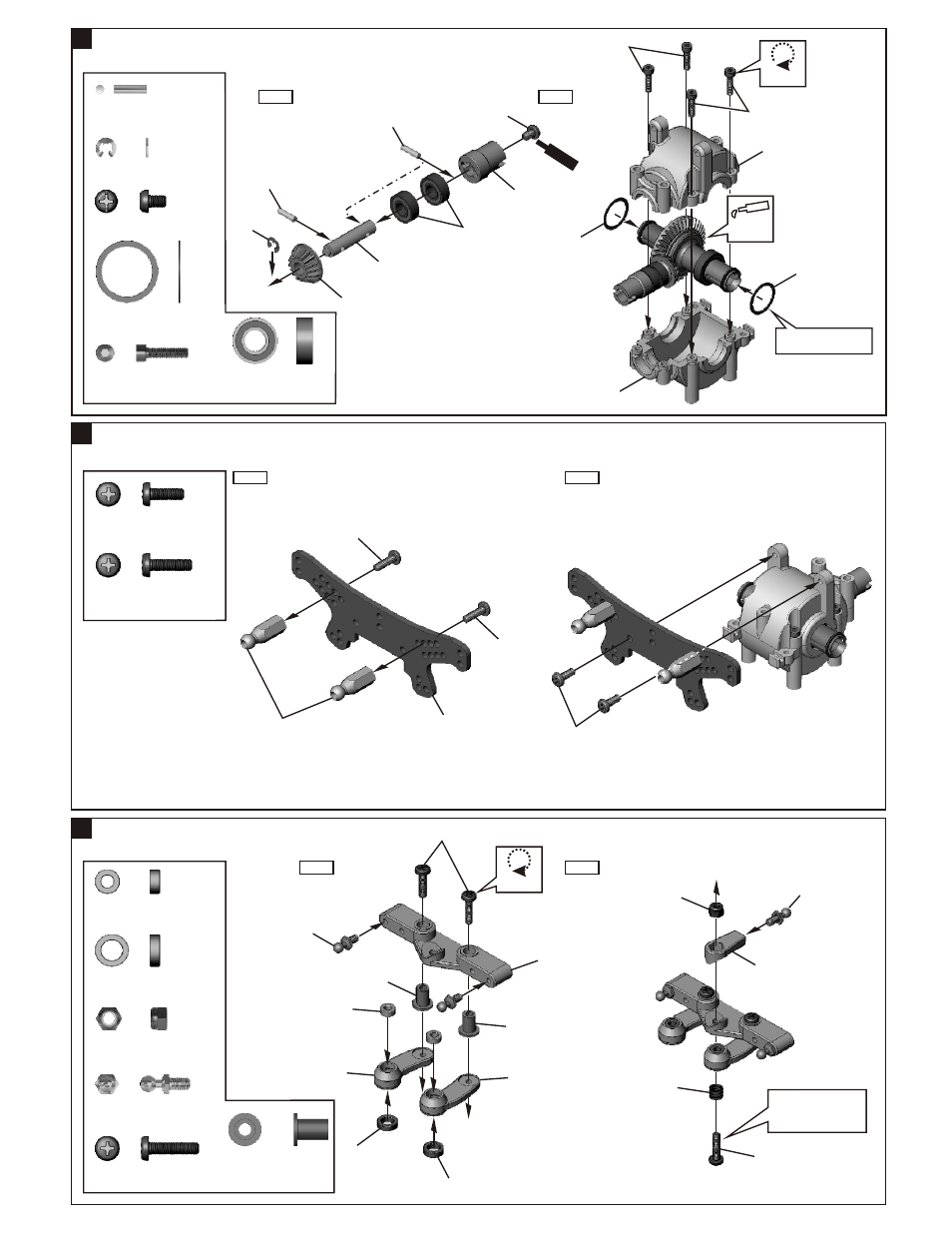

ASSEMBLY OF THE FRONT GEAR CASE

ASSEMBLY OF THE FRONT SHOCK STAY

ASSEMBLY OF THE SERVO SAVER

Step 1

Step 1

Step 2

38254
12x15x0.25mm Shim

.....x2

94002
3x8mm
Screw

.....x2

Step 2

.....x4

94050
2.6x10mm
Cap Screw

94050
2.6x10mm

38254

38254

94050
2.6x10mm

94001
3x4mm

37151

37151

37430

37143

2.5mm

90020
2.5mm E-Ring

.....x1

37151
2x7.8mm Pin

.....x2

94003
3x10mm
Screw

.....x2

*Adjust the backlash

with the shims.

3x8mm

3x10mm

38282

Step 2

36742

3x12mm

37360

38276

38277

36742

37147

37147

37147

37135

37147

37148

37147

37147

3mm
Nylon Nut

38288

3x12mm

37360

37147

94004
3x12mm Screw

.....x3

94041
3mm
Nylon Nut

.....x1

38277
5x8mm Brass Bushing

.....x2

38276
3x6mm Brass Bushing

.....x2

37360

4mm Ball&Socket

.....x3

37430
5x11mm Ball Bearing

.....x2

94001
3x4mm Screw

.....x1

36742
Servo Saver Bushing

.....x2

38277

w

Scr

e

C

e

em

nt

Apply
Grease

Do Not
Over Tighten

Step 1

3x10mm

Tighten the screw
and back off one
turn.

Do Not
Over Tighten
