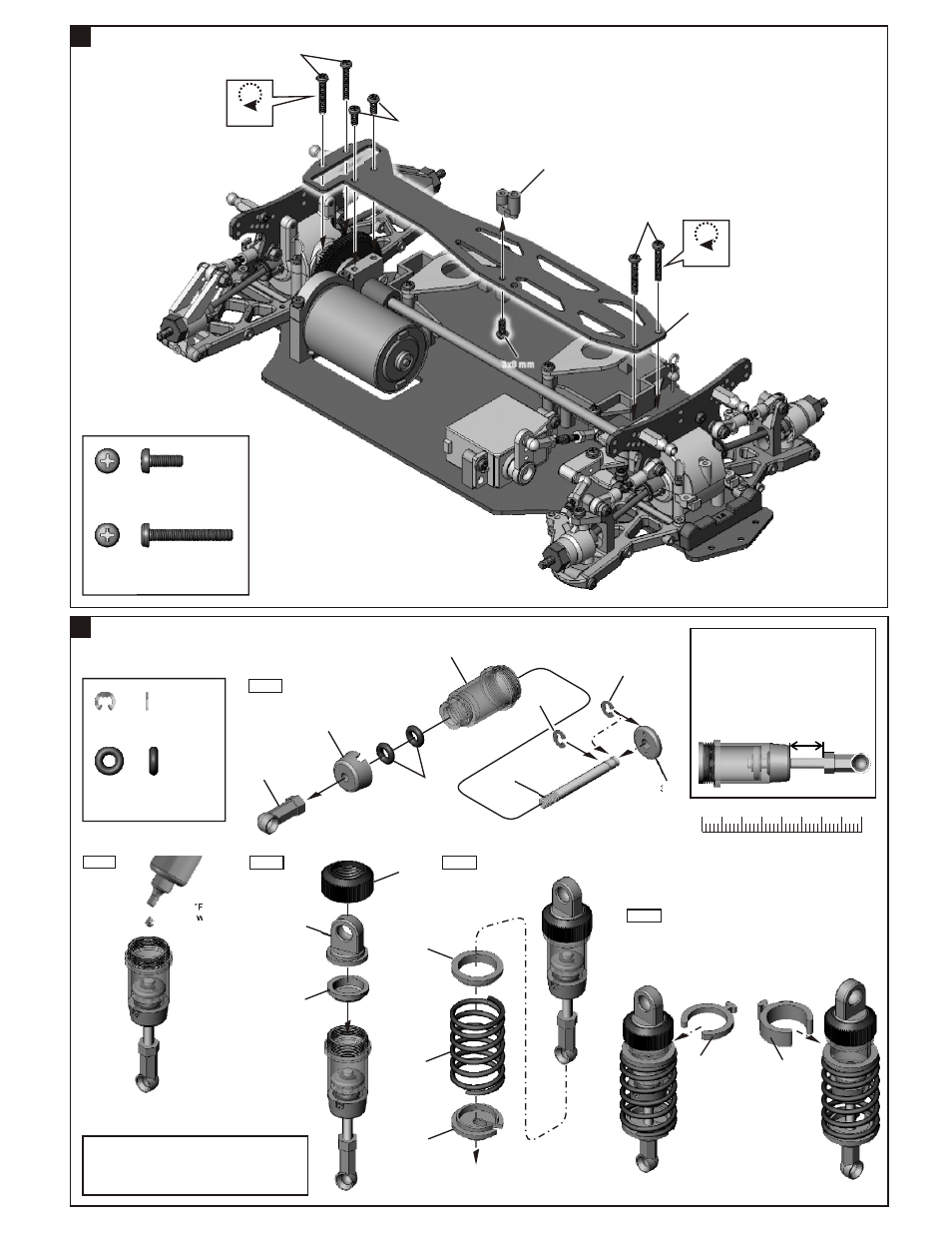

ASSEMBLY OF THE SHOCKS

*Assemble 4 sets for front and rear.

Step 3

Step 4

Step 2

*Fill the shocks
with oil #40.

Step 1

37070
P3 O-Ring

.....x8

2mm E-Ring

.....x8

CORRECT SHOCK ASSEMBLY

*Carefully screw the shock shaft into the

bottom of the plastic ball and until the

distance between the ballend and the

shock body is 9.5mm for thefront.

*N.B. Do not over tighten as the plastic

will strip.

9.5mm

1.Pull down piston and pour oil into shock cylinder.
2.To remove air bubbles by slowly moving piston
up and down.
3.Pull down piston, attach pressure top and shock
oil overflow with tissue paper.

ASSEMBLY OF THE UPPER DECK

37650 (short)

37100

37070

39030

38325

37100

37090

37100

37080

37100

38326

37100

2mm

Step 5

94002
3x8mm
Screw

.....x3

94007
3x20mm
Screw

.....x4

3x20 mm

3x8 mm

30560

37134

3x8 mm

2mm

37100 (2mm)

37100 (5mm)

*Assemble 2 sets for front.

*Assemble 2 sets for rear.

Do Not
Over Tighten
