Step 1
Step 1
Step 2
Step 2
..........X4
..........X1
5

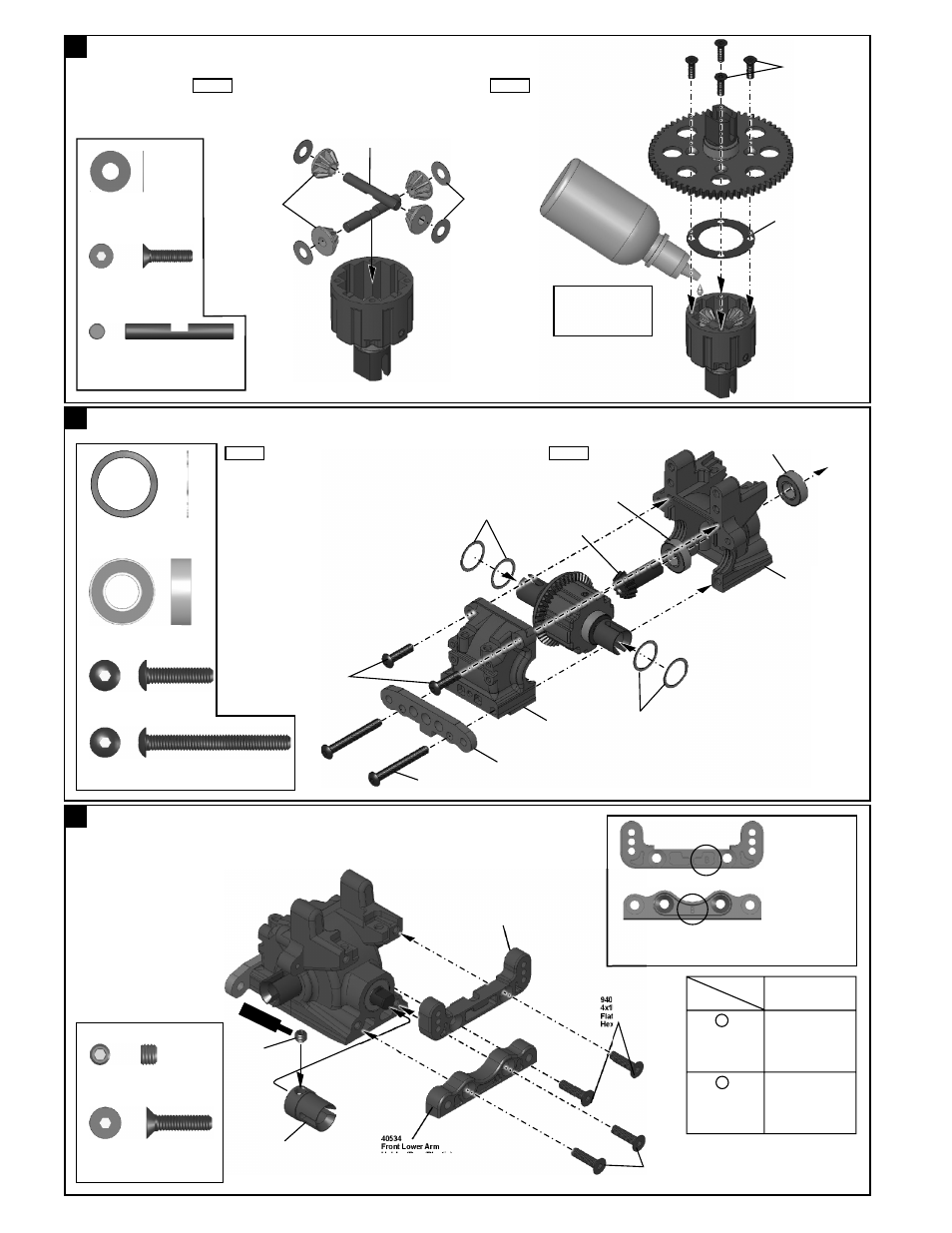

ASSEMBLY OF THE CENTER DIFF.
30776
4x10mm
Washer
30773
4mm
Cross Pin
40011
Diff. Gasket
94020
3x12mm
Flat Head
Hex Screw
6
ASSEMBL OF THE FRONT GEAR CASE Y
ASSEMBL OF THE FRONT ARMS HOLDER Y
40024
13x16x0.2mm
Shim
40024
13x16x0.2mm
Shim
40516
13T
Small Bevel Gear
*Adjust the backlash
w
ith th e s h im s . ¡ @
40533
Gear Case
40654
Front Lower Arm
Holder
40533
Gear Case
94036
5x4mm
Set Screw
40519
Cap Joint
40534
Front Lower Arm
Holder (Rear/Plastic)
40534
Front Upper Arm
Holder (Rear/Plastic)
36053
8X16mm
Ball bearing
36053
8X16mm
Ball bearing
94027
4x16mm
Flat Head
Hex Screw
94027
4x16mm
Flat Head
Hex Screw
..........X4
..........X2
..........X4
..........X4
30776
4x10mm
Washer
94020
3x12mm
Flat Head
Hex Screw
94011
4x16mm
Hex Screw
94015
4x35mm
Hex Screw
94015
4x35mm
Hex Screw
..........X2
94011
4x16mm
Hex Screw
2
94027
4x16mm
Flat Head
Hex Screw
94036
5x4mm
Set Screw
w
Sc
re
t
Ce
m
en
S
r w c e
e
e
C
m
nt
Put the diff. Oil 10,000
in the center. Fill the Diff.
Case to approx.95%
with the Diff. Oil
..........X2
36053
8x16mm Ball bearing
..........X2
Diff
. O
il
40024
13x16x0.2mm
Shim
30773
4mm
Cross Pin
40513
Diff. Gear
(Small)
4
Caster angle can
be changed with
A or B
We recommend
using the B caster
angle.
Steering
Characteristics
Steering response
becomes milder.
Steering response
becomes quicker.
Caster
(High/22 Degree)
Caster
(Low/20 Degree)
A
B
use only as matched set "A" with"A"
and "B" with "B".
A
A
