OFNA Racing Jammin X1 CRT RTR User Manual
Page 23
50
18
Step 1
Step 2
Step 3
..........X4
52

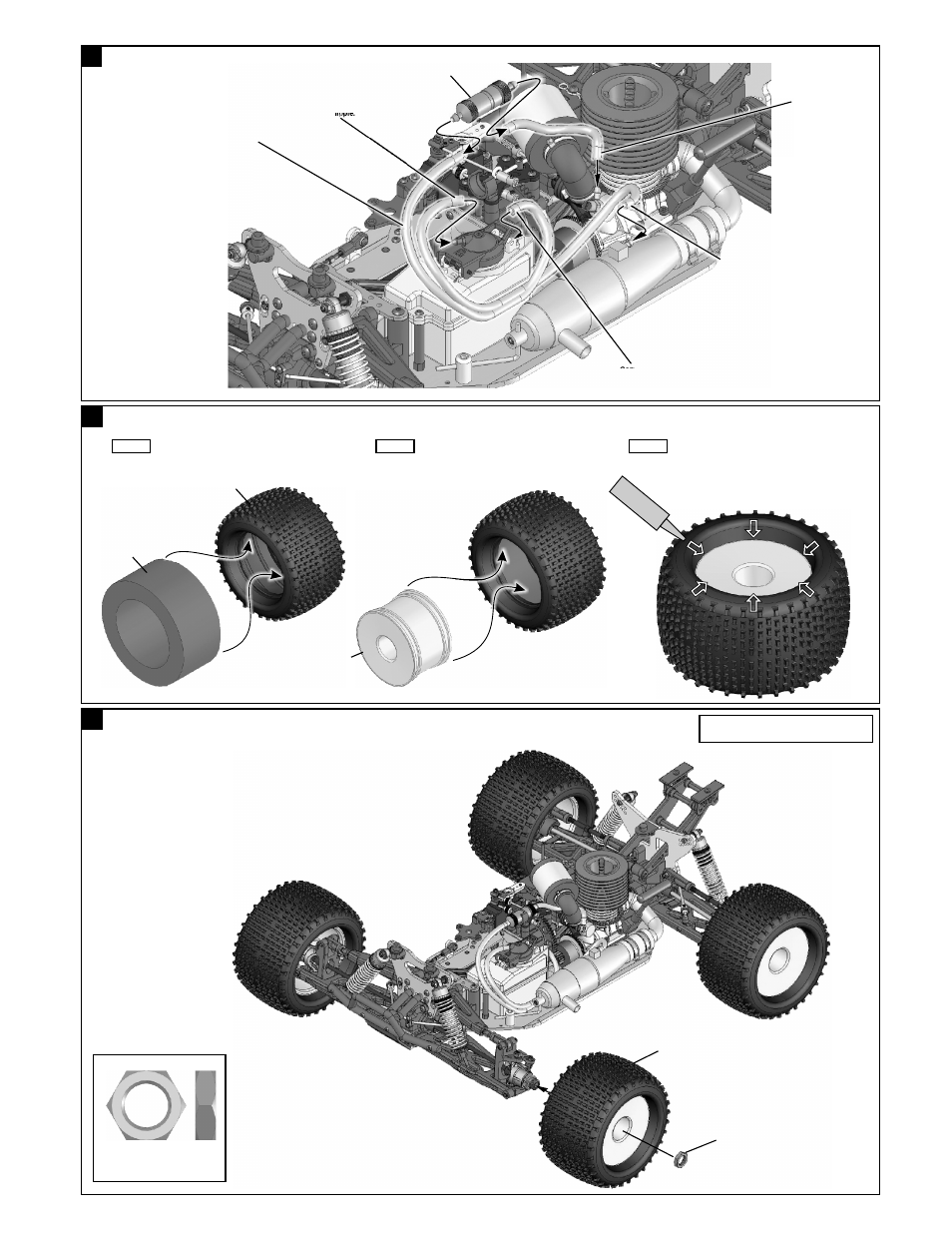

ASSEMBLY OF THE FUEL TUBE
Connect to
carbulater.
Connect to
fuel nipple.
Connect to fuel
tank nipple.
Connect to pressure
nipple.
10179
Fuel Tube
IN
S
TA
N
T
L
U
G
E
Apply instant glue into
the groove of the wheel.
51
ASSEMBLY OF THE TIRES AND WHEELS
Inner Sponge
Tire and Wheel
assembly.
40526
Wheel Nut
40526
Wheel Nut
ASSEMBLY OF THE TIRE ONTO FRONT KNUCKLE AND REAR HUB
80009
Tires
86104
Wheel
(White)
40099
Fuel Filter
Assembly both left and right hand side.
86105
Wheel
(yellow)
