OFNA Racing Jammin X1 CRT RTR - Manual (Page 17)

34
33
12
Step 1 Step 2

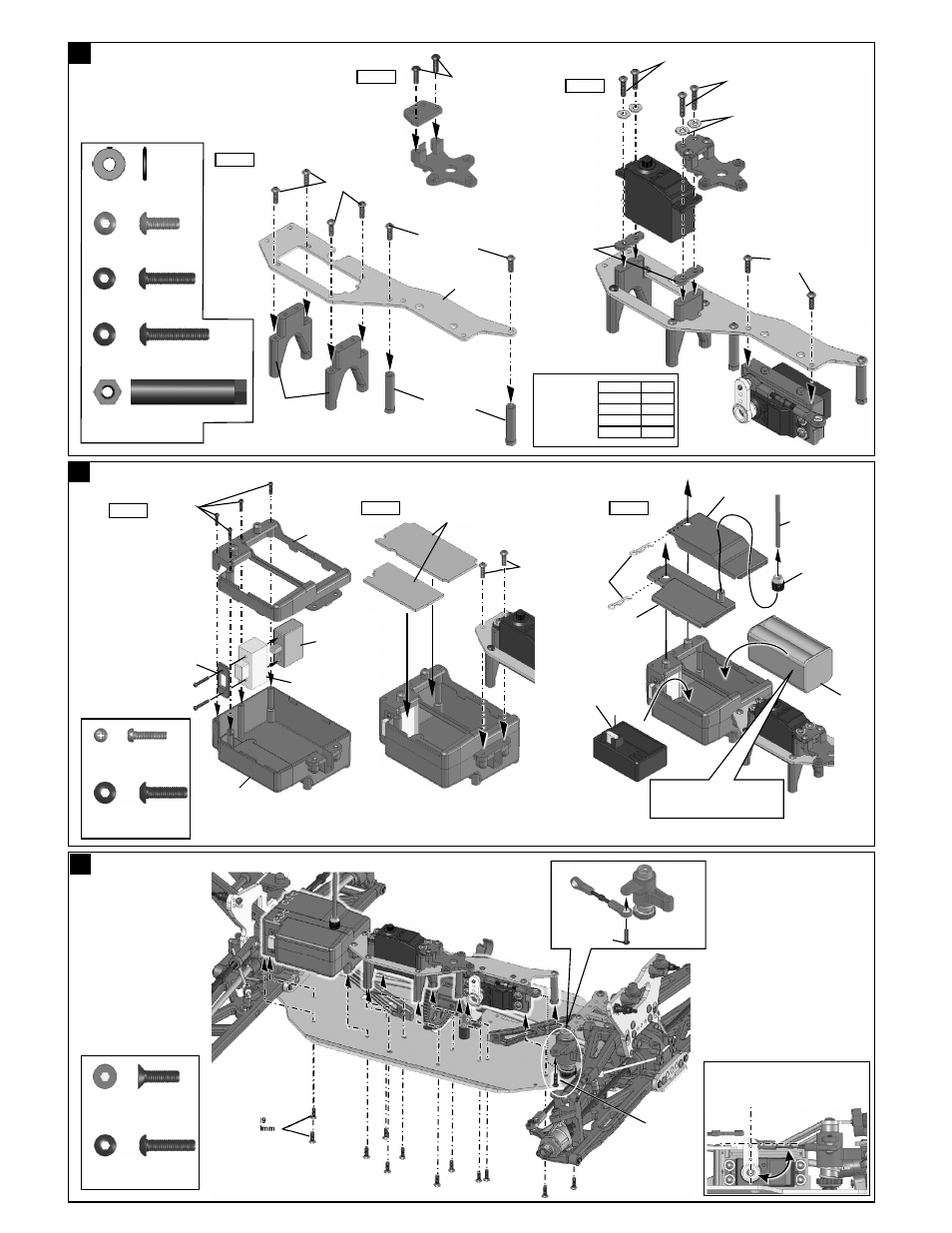

ASSEMBLYOF THE RADIO TRAY AND RECEIVER BOX
ASSEMBLY OF THE RADIO TRAY ONTO CHASSIS
Battery
Receiver
374101
Clips
40541
Battery Box
Cover
40541
Receiver Box
Cover
94003
3x10mm
Hex Screw
Use the original battery case or
rechargeable hump pack battery.
Connect battery wire to switch.
94003
3x10mm
Hex Screw
94004
3x12mm
Hex Screw
..........X2
..........X1
..........X12
94019
3x10mm
Flat Head
Hex Screw
Adjust the position of steering servo horn and
servo saver in order to set the angle 90 degree
here when the neutral.
*Put the servo wire into
receiver box and connect to
receiver.
32
40541
Receiver Box
40541
Receiver Box
ASSEMBLY OF THE RADIO TRAY
Step 2
2X8mm
Screw
2X8mm
Hex Screw
94022
3X8mm
Hex Screw
..........X2
..........X2
10280
Switch Cover
Switch
*Use the screw provide
with your switch
* Connect the switch
wire to receiver.
40541
Switch holder
40541
Radio Tray
Post
( Plastic )
40504
Radio Tray
94004
3x12mm
Hex Screw
94022
3x8mm
Hex Screw
94022
3x8mm
Hex Screw
94004
3x12mm
Hex Screw
94005
3x15mm
Hex Screw
40676
Servo Mount
940053x15mm
Hex Screw
40676
Servo Washer
Adjust XT-20
Servo Washer
in accordance
with use of
servo.
Futaba 1mm
Sanwa 2mm
KO 1mm
JR .........
A
A
..........X10
..........X4
30560
Antenna Pipe
40642
Antenna Pipe
Fixing Nut
94004
3x12mm
Hex Screw
94019
3x10mm
Flat Head
Hex Screw
..........X2
40541
Radio Tray Post
( Plastic )
94022
3x8mm
Hex Screw
Step 1
Step 3
94022
3x8mm
Hex Screw
Step 3
3x8mm
Washer
..........X4
3x8mm
Washer
40580
Protective Foam
for Receiver Box
94004
3x12mm
Hex Screw
90 Degree
