10
Step 3
28
..........X3

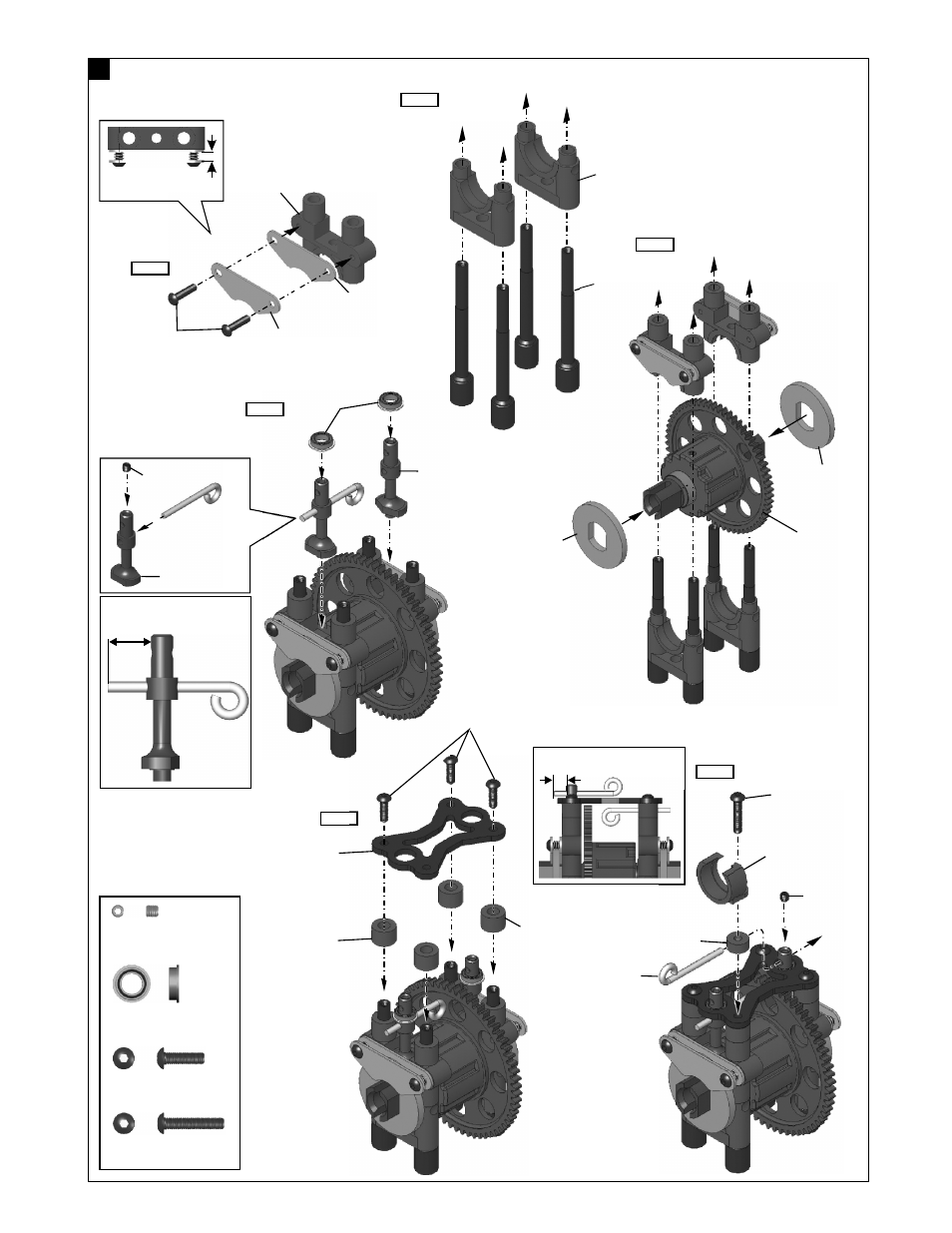

ASSEMBL OF THE CENTER DIFF. INTO BRAKE DISK Y
40040
Center Diff.
Mount
36661
Brake Pad
40040
Center Diff.
Mount
40662
Center Diff.
Mount Post
40666
Fiber Glass
Brake Disk Center Diff.
Assemble
Approx. 3.5mm
94004
3x12mm
Hex Screw
94003
3x10mm
Hex Screw
Approx. 8mm
40539
Plastic Bushing
..........X2
..........X3
..........X2
94033
M3x3
Set Screw
94033
3x3mm
Set Screw
40665
Brake Cam
30171
Brake Lever
40665
Brake Cam
40539
Plasitc Bushing
36661
Brake Pad 94004
3x12mm
Hex Screw
40666
Fiber Glass
Brake Disk
Step 2
Step 1
Step 4
Step 5
Step 6
3x15mm
Hex Screw
94033
M3x3
Set Screw
94003
3x10mm
Hex Screw
40676
Center Diff. Mount
Post adapter
40676
Center Diff. Mount
Post adapter
Approx. 4mm
406760
Fuel Filter
Spacer
40099
Clip for filter
40506
Center Diff. Mount
Plate
* Take the center diff. mount
post adapter from 40676
plastic tree.
* Take the fuel filter
spacer from 40676
plastic tree.
